Description

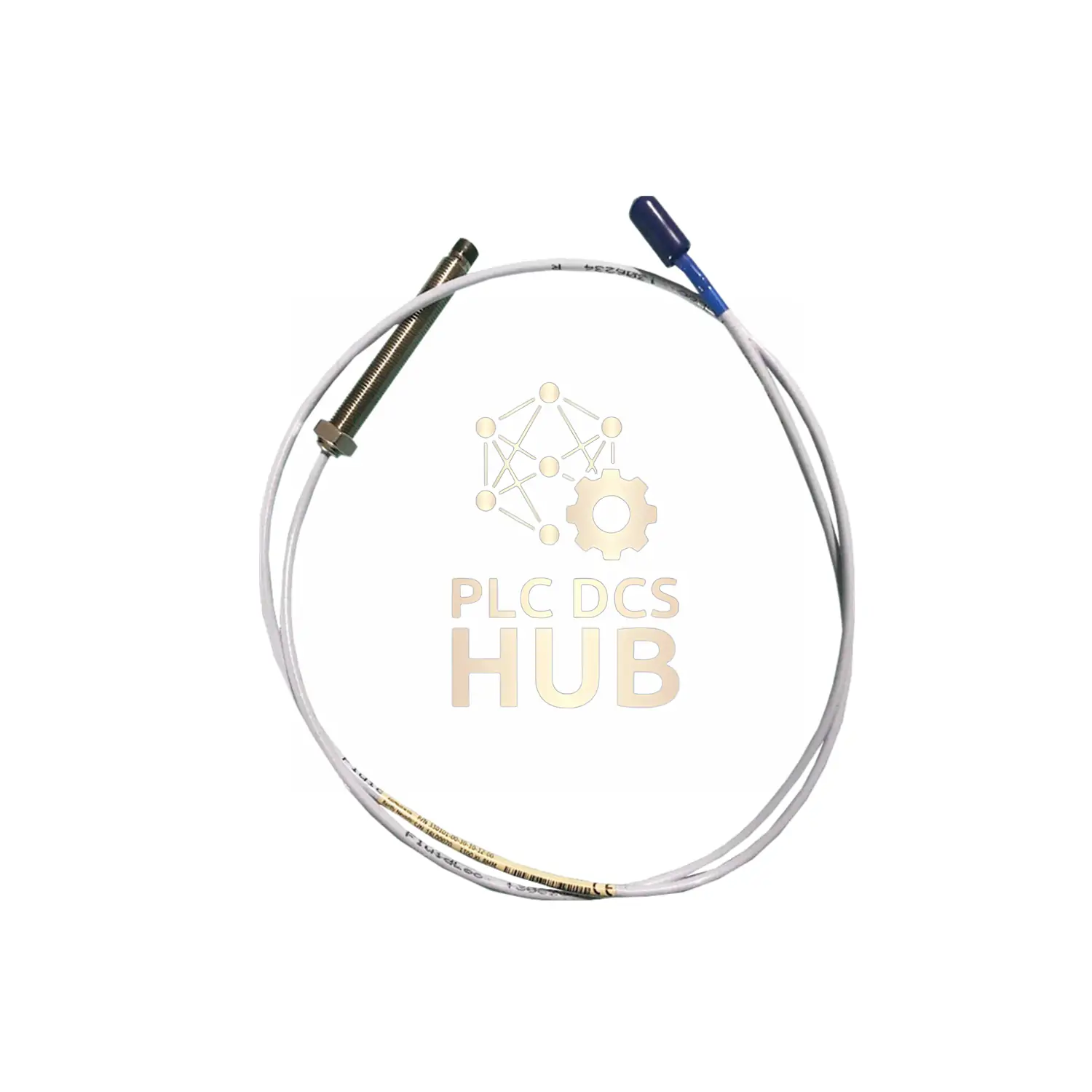

Bently Nevada 3300 XL Proximity Probe – Precision Machinery Monitoring
Professional 11mm vibration sensor for critical equipment protection. Made in USA with global certifications.
Technical Specifications
- Brand: Bently Nevada
- Full Model: 330708-00-10-50-11-05
- Cable Length: 5.0 meters (16.4 ft)
- Resistance: 5.9Ω ±0.5 (center to outer conductor)
- Thread: 5/8-18 UNF (0.938″ max engagement)
- Tip Material: Polyphenylene sulfide (PPS)
- Case Material: AISI 304 stainless steel
- Bend Radius: 25.4mm (1.0 in) minimum
Installation Guide
- Case Torque: 15.2 N•m recommended (45.2 N•m max)
- Connector Torque: Finger tight (0.565 N•m max)
- ⚠️ Avoid temperatures below -34°C to prevent seal damage
- Sealed with Viton O-ring (pressure testing available on request)
Compatibility & Certifications
- Works with Bently Nevada 3300 monitoring systems
- Multiple agency approvals (option 05)
- Certificate of Origin (COO) available
Packaging & Warranty
- Shipping weight: 0.17 kg
- 12-month warranty
- FedEx, UPS, DHL shipping options
FAQ
- Q: Available cable lengths?
A: 1m, 5m (standard), 9m - Q: Pressure rating?
A: Contact for custom pressure testing - Q: International shipping?
A: Yes via FedEx/DHL/UPS
