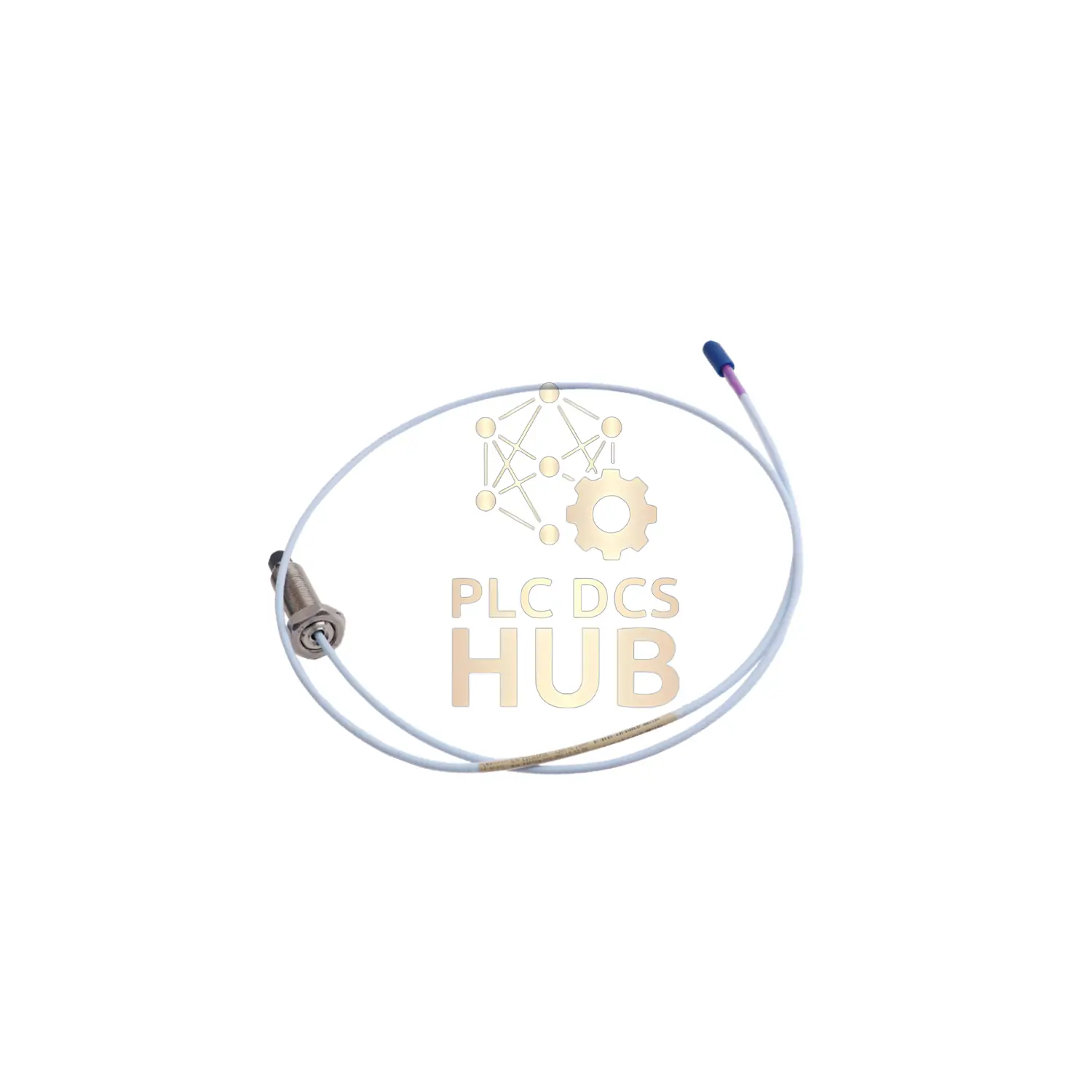

Bently Nevada 1m Proximity Probe for Precision Monitoring
Simple Product Info
Part Number: 330708-00-24-10-02-00
Made in USA | With 12-month warranty
Short 1-meter probe for tight spaces. Fits 5/8-18 UNF holes. Works with Bently Nevada systems.
Part Number Details
Each part of the number tells us about the probe:
- 330708: Probe type (11mm, 5/8-18 thread)
- 00: No unthreaded part
- 24: Case length 2.4 inches
- 10: Cable length 1.0 meter
- 02: ClickLoc connector with standard cable
- 00: No special approvals needed
Key Measurements
Electrical Info
- Cable resistance: 5.9Ω ±0.5Ω
- Cable type: 75Ω triaxial
- Max wiring: 1000 feet
Physical Info
- Weight: 0.17 kg
- Bend radius: 25.4 mm min
- Case material: Stainless steel
- Tip material: PPS plastic
Temperature Info
- Works from -51°C to +177°C
- Warning: Do not install below -34°C
Installation Guide
- Thread: 5/8-18 UNF
- Max thread use: 0.938 inch
- Connect torque: Finger tight only
- Max torque: 15.2 N•m
Works With
Fits all Bently Nevada 3300 XL systems. Uses standard 75Ω cables.
Certification
Made in USA. Optional Certificate of Origin (COO).
Shipping & Support
Shipped fast via FedEx/UPS/DHL. Full 12-month maker warranty.
Common Questions
Q: How long is the cable?
A: 1.0 meter (3.3 feet)
Q: Can I use in cold places?
A: Yes, but not below -34°C
Q: What connector type?
A: ClickLoc miniature coaxial
Q: Is pressure testing done?
A: No, contact us for testing
