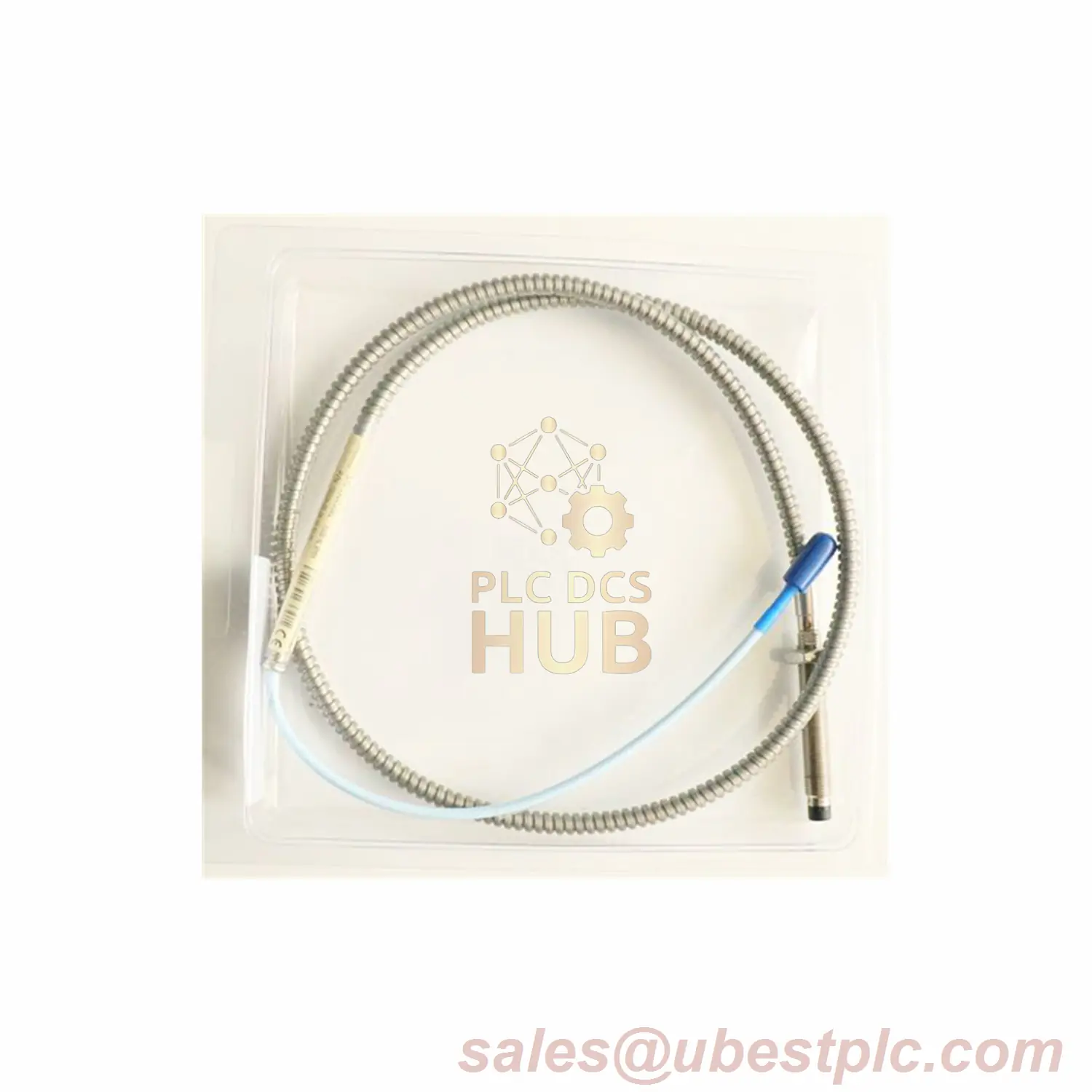

3300 XL 11 mm Probe Bently Nevada 330708-00-24-50-11-05

Description

Bently Nevada 5-Meter Proximity Probe for Industrial Monitoring

Product Identification

• Full Product Code: 330708-00-24-50-11-05
• Type: 3300 XL 11mm Proximity Probe
• Origin: Made in USA (COO available)

Product Configuration

• Main Probe (330708)
  • 11mm sensing diameter
  • 5/8-18 UNF thread
  • No protective armor
• Length Options (00-24-50)
  • Unthreaded section: 0 inches
  • Case length: 2.4 inches
  • Cable length: 5.0 meters
• Connection System (11)
  • ClickLoc connector
  • FluidLoc protected cable
• Certifications (05)
  • Multiple agency approvals

Technical Specifications

• Cable Resistance: 7.2Ω ±0.8Ω (5m length)
• Cable Type: 75Ω triaxial with FEP protection
• Bend Limit: Minimum 25.4mm radius
• Thread Compatibility:
  • M16x1.5 (max 24mm)
  • M14x1.5 (max 21mm)

Installation Notes

• Mounting Torque:
  • Best: 15.2 N•m
  • Maximum: 45.2 N•m
• Connector Handling: Hand-tighten only
• Seal Type: Viton O-ring (custom pressure tests available)

Special Requirements

Must use with 5-meter Proximitor Sensor only. Not compatible with shorter sensors.

Shipping & Support

• Package Weight: 0.17kg
• Delivery Options: FedEx, UPS, DHL
• Warranty: 12 months

Common Questions

Q: What is FluidLoc cable?
A: Special protection against oils and chemicals.

Q: Why 5m cable only?
A: Designed specifically for 5-meter Proximitor Sensors.

Q: Can I use in wet areas?
A: Yes, FluidLoc cable resists fluids.

Q: What approvals included?
A: Multiple global certifications (details on request).
