Description
Product Introduction

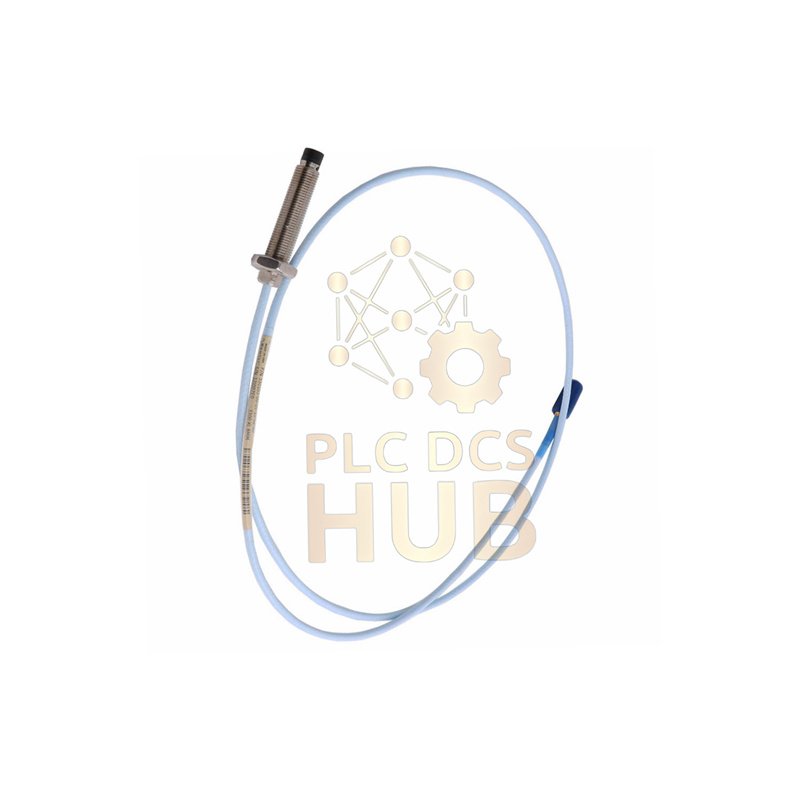

Get the authentic Bently Nevada 330707-00-62-50-02-05. This is a premium 3300 XL 11 mm Proximity Probe, made in the USA. It features a long 6.2-inch case and a 5-meter cable. This probe is armored for extra protection in tough industrial settings. Ideal for precise machine condition monitoring. Need help? Call/WhatsApp: +86 158 8020 0923.
Product Specifications & Ordering Code
- Manufacturer & Series: Bently Nevada 3300 XL 11 mm Proximity Probes
- Full Item Number: 330707-00-62-50-02-05
Understanding Your Part Number:
- 330707 – Base Model: 3300 XL 11 mm Probe (1/2-20 UNF, Armored)
- -00 – Unthreaded Section: 0 inches
- -62 – Case Size: 6.2 inches long
- -50 – Cable: 5.0 meters total length
- -02 – Connection: ClickLoc connector, standard cable
- -05 – Certifications: Multiple safety approvals
Technical Details
- Electrical Data
- Probe DC Resistance (5.0m): 7.2 ± 0.8 ohms
- Cable Type: 75 Ω triaxial, FEP insulated
- Physical Construction
- Tip Material: Polyphenylene Sulfide (PPS)
- Case Material: AISI 304 Stainless Steel
- Seal: Viton O-ring
- Minimum Bend Radius: 25.4 mm (1.0 inch)
- Shipping Weight: 0.17 Kg
- Environmental Ratings
- Operating Temperature: -51°C to +177°C
- Storage Temperature: -51°C to +177°C
- Warning: Avoid below -34°C to protect seal
- Installation Instructions
- Thread: 1/2-20 UNF
- Max Thread Engagement: 0.750 inches
- Case Torque (Recommended): 15.2 N•m (133 in-lb)
- Connector Torque: Finger tight only
Important Application Notes
- This 5-meter probe must pair with a 5-meter Proximitor Sensor.
- Do not use with other sensor cable lengths.
- The probe is not pressure tested before shipping.
- Contact us for custom pressure testing services.
Frequently Asked Questions
Compatibility & Use
- What does the ’62’ in the part number mean for installation?
It means the probe case is 6.2 inches long. Ensure you have enough physical space in your machine to fit this longer probe body.
- Can I cut or shorten the 5-meter cable if it’s too long?
No. The cable length is fixed. Cutting it will change the electrical resistance and make the probe readings incorrect.
Certifications & Safety
- What are ‘Multiple Approvals’ and why does it matter?
It means this probe meets several international safety standards. This is important for use in regulated plants like oil refineries or chemical facilities.
- The probe has armor. Is it waterproof?
The armor protects against physical damage. The seal is a Viton O-ring which resists many fluids, but the probe is not rated as fully submersible. Check the seal for your specific environment.
Purchasing & Support
- What is included with my purchase and how is it shipped?
You receive one new probe in factory packaging. It comes with a 12-month warranty. We ship fast worldwide using FedEx, UPS, or DHL for reliable delivery.
Order with Confidence
You are ordering the specific part 330707-00-62-50-02-05. Verify the 6.2-inch case length and 5-meter cable work for your machine. Our team is here to help you confirm. Enjoy peace of mind with our warranty and global shipping.
