Description
Heavy-Duty Industrial Sensor

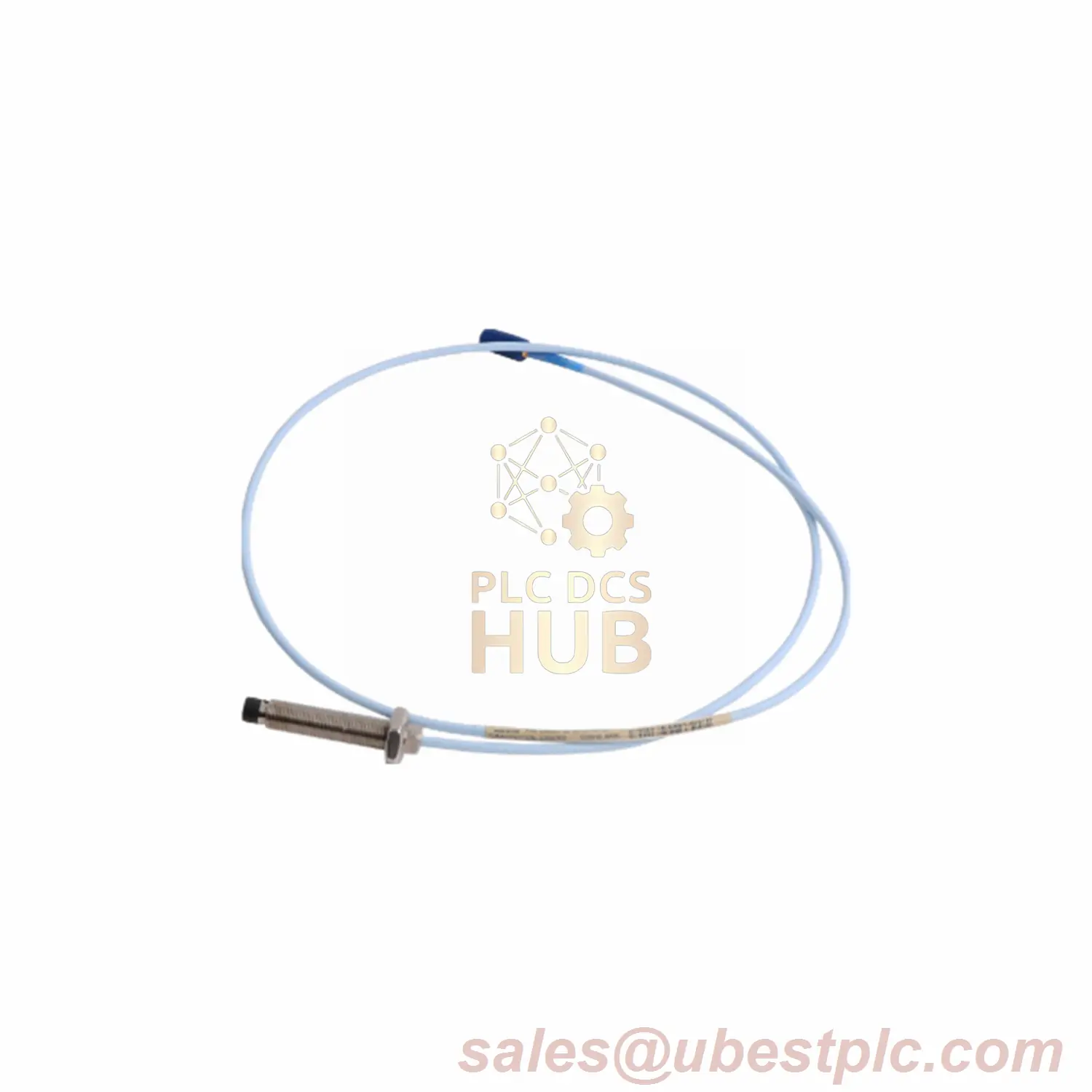

Bently Nevada 3300 XL 8mm Probe
Model: 330101-00-59-15-02-CN
5.9in Case • 1.5m Cable • Multi-Certified
Full Product Code Breakdown for 330101-00-59-15-02-CN
- 00 = 0.0in Unthreaded
- 59 = 5.9in (150mm) Case
- 15 = 1.5m (4.9ft) Cable
- 02 = ClickLoc® Connector
- CN = China-Specific Certifications
Technical Specifications
▷ Electrical
• Resistance: 7.73Ω ±0.5
• Capacitance: 21.3pF/ft
• Frequency Response: 5Hz-12kHz
▷ Mechanical
• Weight: 484g Total
• Torque Range: 50-163 N·m
• IP68 Submersible Rating
China Certifications (CN Code)
- GB/T 3836.1-2021 Ex ia IIC T4
- CCC: CNCA-C23-072024
- HJ 315-2023 (Marine Corrosion)
Industrial Applications
Chemical ReactorsMonitors agitators in 98% sulfuric acid production
Offshore PlatformsOperates 200m underwater in saltwater environments
Environmental Limits
| Parameter | Standard | 24h Peak |
|---|---|---|
| Temperature | -62°F to +350°F | +500°F (Cable) |
| Pressure | 10 bar (145psi) Underwater | |
Special Features
- Triple-Layered PPS Tip Coating
- 316L Stainless Steel Option
- EMC Immunity: 100V/m @ 1GHz
Package Contents
- 1x 5.9in Probe
- 1.5m Marine-Grade Cable
Technical Support
Email sales@ubestplc.com for subsea installation kits
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
