Product Description

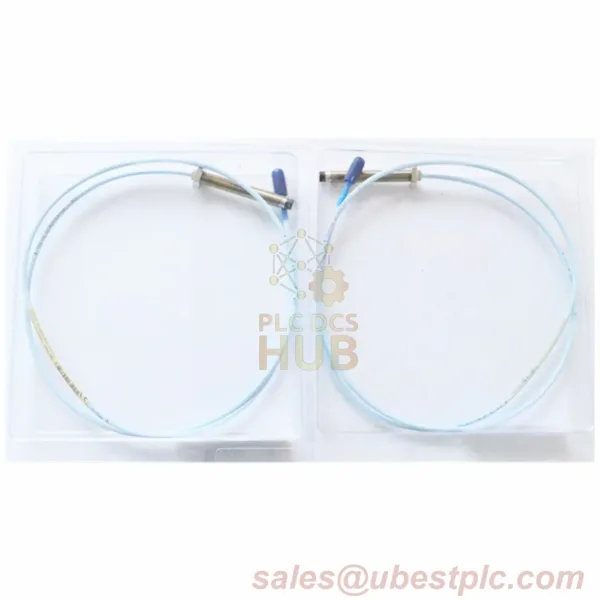

The Bently Nevada 330101-00-15-10-02-00 is an 8 mm XL vibration probe designed for industrial machinery monitoring. It features a 3/8-24 UNF thread, 1.0-meter cable, and a Miniature Coaxial ClickLoc connector. Built with stainless steel and PPS plastic tip, it ensures durability in harsh environments. Ideal for radial vibration measurement, it offers reliable performance with enhanced pull strength (330 N) and optional FluidLoc to prevent liquid ingress.
Technical Data
| Brand | Bently Nevada |
| Model | 330101-00-15-10-02-00 |
| Suffix Details | 00 (No Armor), 15 (1.5in Case), 10 (1m Cable), 02 (ClickLoc Connector) |
| Range | 2 mm (80 mils) |
| Accuracy | ±5% (1m System), ±6.5% (9m System) |
| Output Signal | -1 to -17 Vdc (Linear) |
| Operating Temp | -52°C to +177°C (Standard), -52°C to +218°C (ETR) |
| Resistance | 7.59 Ω ±0.50 (1m Cable) |
Installation Guide
- Mount probe perpendicular to target surface.
- Set gap to -9 Vdc (~1.27 mm) for radial vibration.
- Use shielded triad cable (16-24 AWG).
- Max field wiring: 305 meters (1,000 feet).
Certifications
- CE, ATEX, IEC Compliant.
- COO (Certificate of Origin) available upon request.
Package Contents
- 1x 3300 XL 8 mm Probe
- 1x Installation Manual
- 1-Year Limited Warranty.
Application Examples
- Gas Turbines: Monitor shaft vibration in power plants.
- Pump Systems: Detect imbalance in oil refineries.
- Compressors: Prevent bearing failure in chemical plants.
