Description

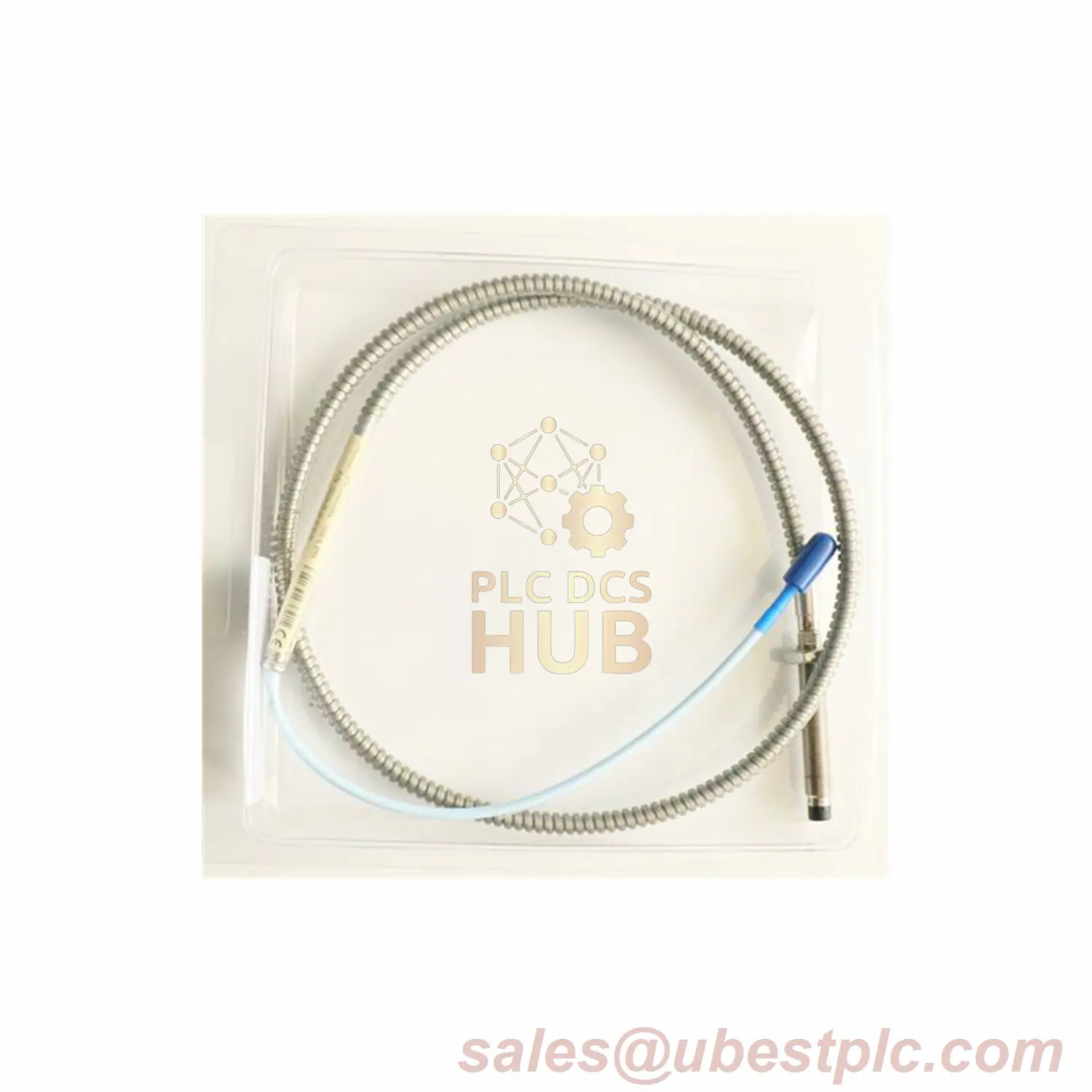

PRODUCT ID: 330101-00-16-10-02-05
330101-00-16-10-02-05 ???????? Made in USA | 12-Month Warranty | CSA/ATEX/IECEx Certified
FULL SUFFIX DECODED
- 00 – 0.0″ Unthreaded Length
- 16 – 1.6″ Case Length (40.6mm)
- 10 – 1.0m Cable (3.3 ft)
- 02 – ClickLoc Connector + Standard Cable
- 05 – Global Certifications Included
KEY TECHNICAL DATA
- Range: 0.25-2.3mm (0.01-0.09″)
- Accuracy: ±0.025mm (±0.001″)
- Temp Range: -52°C (Arctic Cold) to +260°C (Foundry Heat)
- Voltage Output: -1V to -17V DC
- Resistance: 7.59Ω ±0.50 @1m
- Thread: 3/8-24 UNF (Max 0.563″ Engagement)
INDUSTRY-LEADING FEATURES
- ????️ TipLoc™ Technology – 3X Stronger Tip Bonding
- ???? CableLoc™ Design – 75 lb Pull Strength
- ????️ Optional FluidLock® – Oil Leak Prevention
- ???? 304 Stainless Steel Construction
- ???? IEC 68-2-3 Humidity Certified (93% for 56 Days)
AEROSPACE APPLICATION
Monitors jet engine turbine blades during 15,000 RPM stress tests, preventing catastrophic failures in aviation manufacturing.
COMPATIBILITY & INSTALLATION
- Works Only with Bently Nevada Proximitors
- Requires 4140 Steel Targets
- Max Cable Run: 305m (1,000 ft)
- Optimal Gap: 1.27mm (0.05″) @ -9V DC
PACKAGE INCLUDES
- 1x 1.6″ Probe (3/8-24 UNF Thread)
- 1.0m Triaxial Cable with ClickLoc
