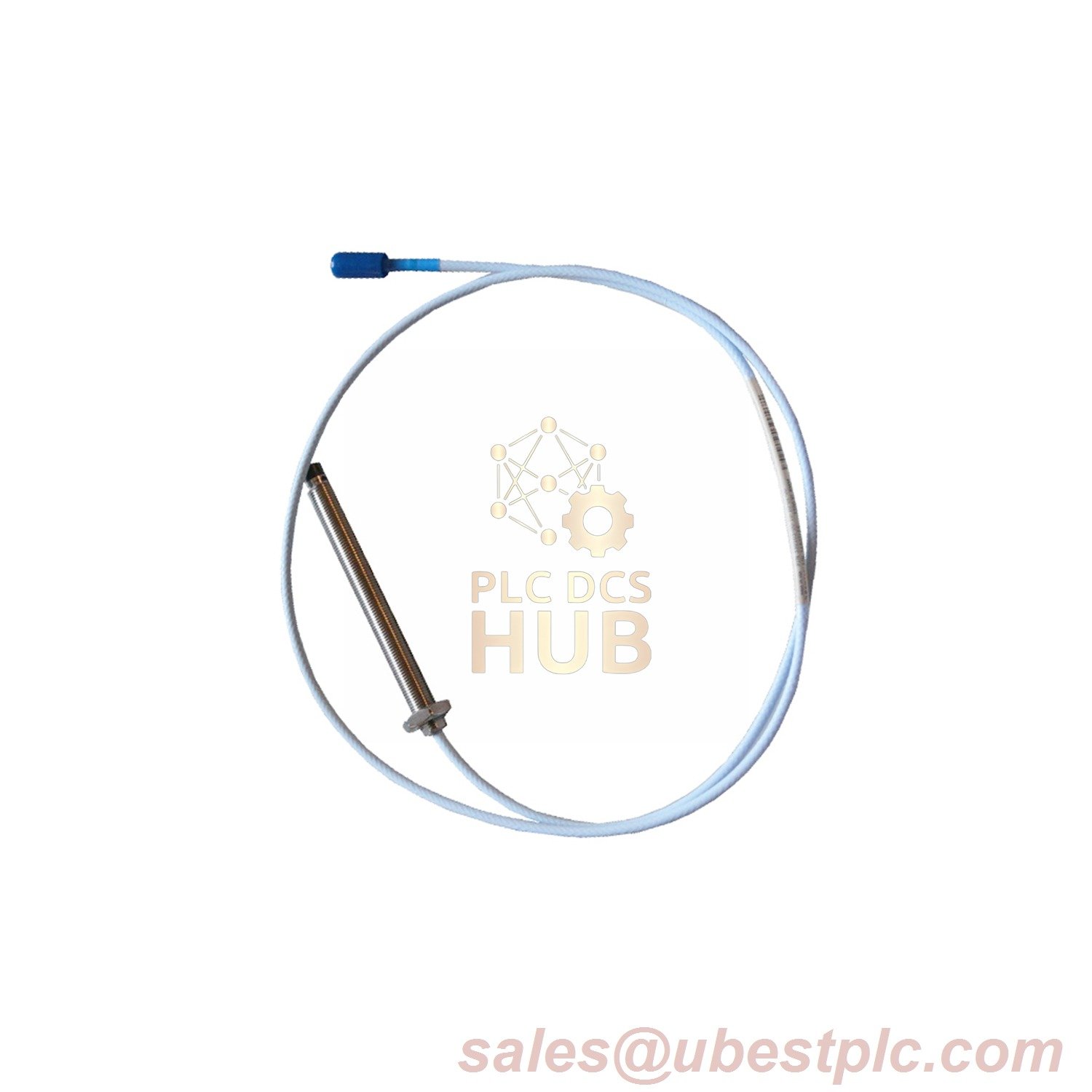

The Bently Nevada 330101-00-08-10-01-CN is a compact, high-performance 8 mm proximity probe designed for industrial vibration and position monitoring. Featuring a 3/8-24 UNF thread0.8-inch case length, and Miniature ClickLoc connector with protector, this probe integrates patented TipLoc and CableLoc technologies for exceptional durability and 330 N (75 lbf) cable pull strength. Ideal for installations requiring precision in confined spaces, it is built to withstand harsh environments with country-specific approvals (CN).

Technical Data

ParameterSpecification
BrandBently Nevada
Model330101-00-08-10-01-CN
Suffix Breakdown00 (0.0 in unthreaded),

08 (0.8 in case),

10 (1.0 m cable),

01 (ClickLoc with protector),

CN (country approvals)

Product Type3300 XL 8 mm Probe, 3/8-24 UNF thread, unarmored
Total Length1.0 meter (3.3 feet)
DC Resistance (RPROBE)7.59 ± 0.50 Ω at 1.0 m
Cable Inductance0.2 µH/m (±5%)
Dynamic Range-1 Vdc to -17 Vdc (0.25–2.3 mm from target)
Response Time<1 ms (90% step input)
Max Continuous Current10 mA
Insulation MaterialPTFE (cable insulation), resistant to oils and chemicals
Connector Durability1,000+ mating cycles (with protector)
Side Load Capacity50 N (11.2 lbf) radial force (probe tip)
Resonant Frequency>25 kHz (probe tip)
Dielectric Withstand2,000 V AC (1 minute, conductor to shield)

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
