Description
Product Overview

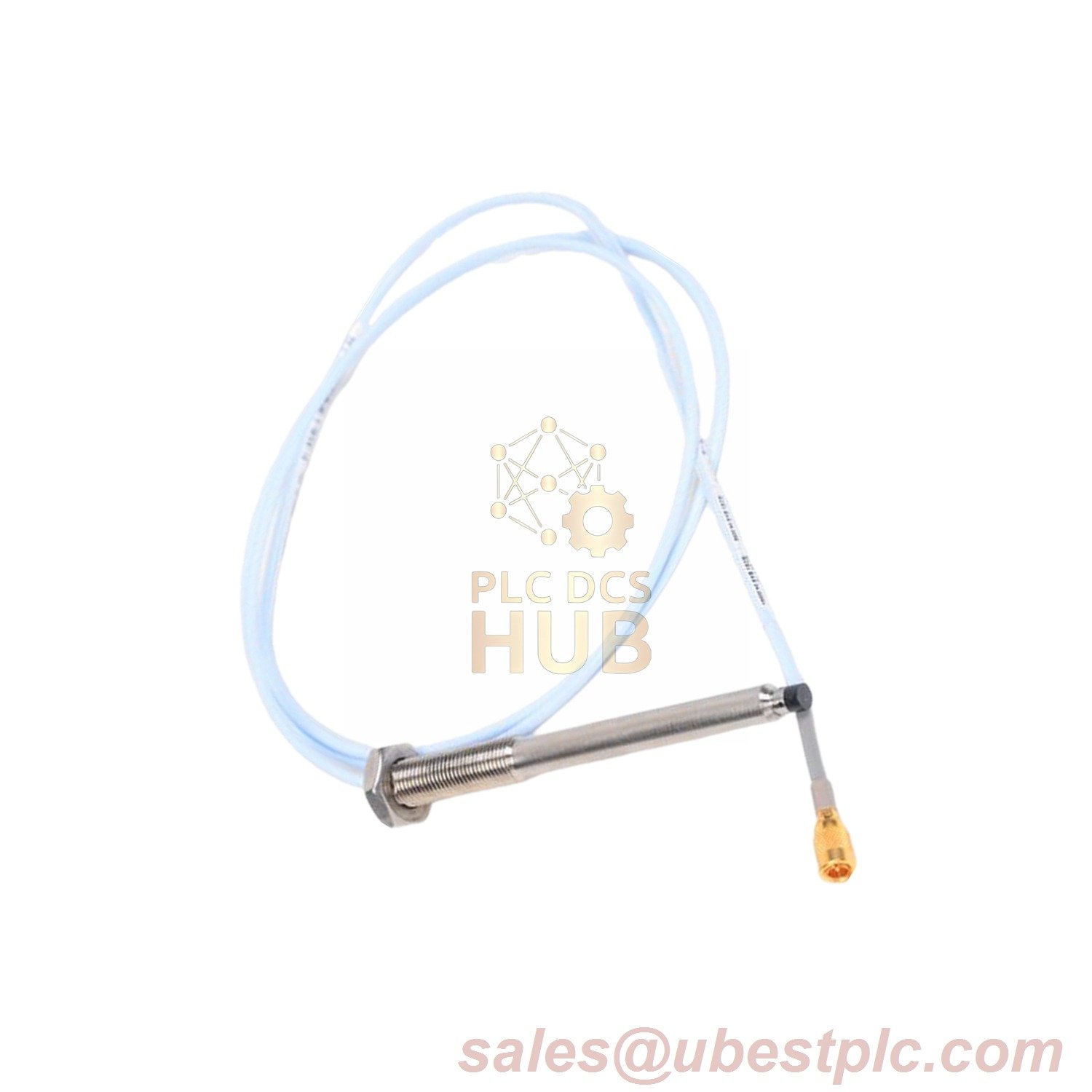

The Bently Nevada 3300 XL 8 mm Reverse Mount Probe (P/N: 330105-02-12-30-12-05) combines precision sensing with hazardous-area compliance for critical industrial applications. Designed for reverse-mount installations, this probe integrates CSA, ATEX, and IECEx certifications (code 05) and features a FluidLoc cable (code 12) to prevent fluid ingress in high-risk environments. Built in the USA with a compact 20.4 x 22.2 x 3.7 cm footprint, it operates reliably in extreme temperatures (-52°C to +260°C) and humid conditions. The probe’s Viton® O-ring seal ensures pressure differential integrity, while its stainless steel construction guarantees durability. A Certificate of Origin (COO) is available for export compliance.
Technical Specifications for 330105-02-12-30-12-05
| Category | Details |
|---|---|
| Brand/Model | Bently Nevada 3300 XL Reverse Mount Probe (330105) |
| Suffix Breakdown | 330105-02-12 – 3300 XL 8 mm Reverse Mount Probes 3/8-24 UNF threads
30: 3.0m Length; 12: FluidLoc Cable; 05: CSA/ATEX/IECEx |
| Electrical Characteristics | |
| – Frequency Response | 0.5 Hz to 12 kHz (±3 dB) |
| – Linearity Range | ±0.5% deviation within 0.25–2.5 mm sensing range |
| – Output Voltage | -2 Vdc to -18 Vdc (scaled to target proximity) |
| Mechanical Properties | |
| – Cable Tensile Strength | 400 N (90 lbf) pull resistance with FluidLoc jacket |
| – Shock Resistance | 100 g peak (11 ms duration, MIL-STD-202G) |
| – Ingress Protection | IP67-rated (dust/water resistance) |
| Environmental Compliance | |
| – EMI/RFI Shielding | 60 dB attenuation (10 MHz–1 GHz per EN 61326-1) |
| – Chemical Resistance | Compatible with oils, steam, and mild acids (pH 4–9) |
| – MTBF (Mean Time Between Failures) | 100,000 hours (at 40°C ambient) |
| Certification Details | |
| – ATEX/IECEx Zones | Zone 0/1/2 (Gas), Zone 20/21/22 (Dust) |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
