Description
Product Description

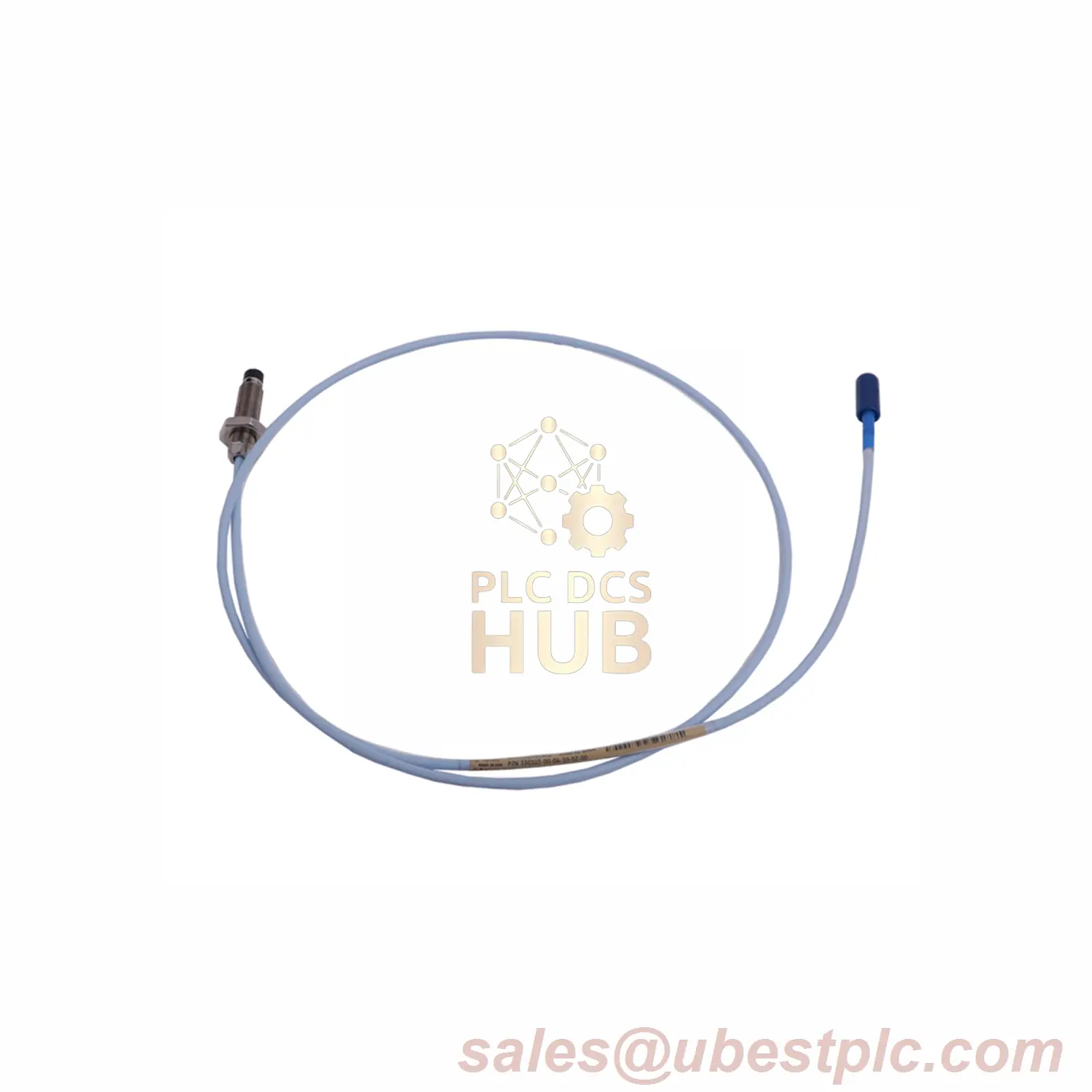

The Bently Nevada 3300 XL 8 mm Probe (Product No. 330101-00-20-10-02-00) is a high-performance vibration monitoring sensor designed for industrial applications. Featuring a 3/8-24 UNF thread and unarmored construction, this probe ensures durability in harsh environments. The patented TipLoc and CableLoc technologies enhance robustness, offering superior pull strength (330 N) and resistance to physical stress.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 3300 XL 8 mm Probe |
| Product No. | 330101-00-20-10-02-00 |
| Suffix Information | 00-20-10-02-00 (Unthreaded Length: 0.0 in, Case Length: 2.0 in, Cable: 1.0 m, ClickLoc Connector) |
| Linear Range | 2 mm (80 mils) |
| Accuracy | ±5% (1/5 m systems) or ±6.5% (9 m/ETR systems) |
| Output Signal | 7.87 V/mm (200 mV/mil) |
| Operating Temp. | -52°C to +177°C (Standard), -52°C to +218°C (ETR Probe Tip) |
| Probe Material | PPS Tip, AISI 303/304 SST Case |
| Resistance | 7.59 ±0.50 Ω (1.0 m cable) |
Installation Guidelines
- Gap Setting: Recommended radial vibration gap at -9 Vdc (~1.27 mm/50 mils).
- Wiring: Use shielded triad cable (0.2–1.5 mm², 16–24 AWG). Max. field wiring length: 305 m (1,000 ft).
- Avoid temperatures below -34°C (-30°F) to prevent seal damage.
Compatibility
Compatible with 3300 XL Proximitor Sensors and Miniature Coaxial ClickLoc Connectors. Supports optional FluidLoc for fluid-resistant applications.
Application Examples
- Gas Turbines
- Compressors
- Power Generators
Contact Information
For inquiries: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
