Description
Description

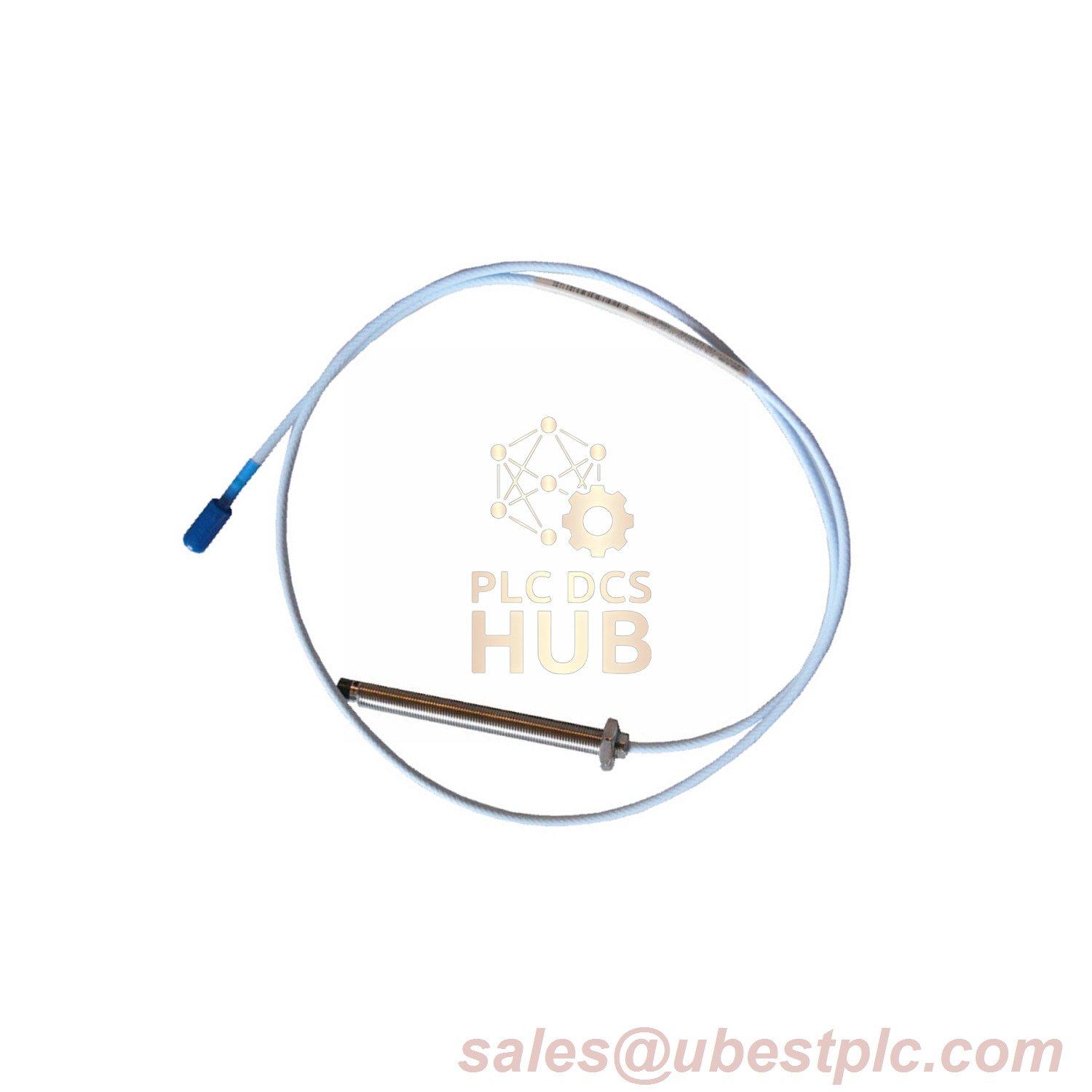

Bently Nevada 330101-00-24-10-12-CN 3300 XL 8 mm Probe combines rugged construction with fluid-resistant performance. Featuring a 2.4-inch case length and FluidLoc cable (-12 suffix), this sensor excels in oil-rich industrial environments. Patented TipLoc molding ensures superior tip-body bonding, while AISI 303/304 stainless steel guarantees corrosion resistance.
Technical Data for 330101-00-24-10-12-CN
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Probe (FluidLoc-enabled)
- Suffix Decoder:
- -00: Zero unthreaded length
- -24: 2.4-inch (61 mm) case length
- -10: 1.0m cable (3.3 ft)
- -12: FluidLoc cable with ClickLoc connector
- CN: Multi-country compliance (ATEX/IECEx/CSA)
- Nonlinearity Error: <±0.8% FSO (Full Scale Output)
- Cable Bend Radius: 25 mm minimum (dynamic applications)
- RF Interference: <10 mVpp noise @ 1V/m, 10 MHz–1 GHz
- Transient Protection: 8/20 μs surge withstand: 1 kV (IEC 61000-4-5)
- Installation Torque: 2.3 N·m (20 lb-in) max for 3/8-24 UNF thread
- Phase Response: ±3° @ 10 kHz (relative to 1 kHz baseline)
- Mechanical Resonance: >35 kHz (probe tip)
- Cross-Axis Sensitivity: <1% of primary axis output
- Warranty: 36 months against manufacturing defects
- MTBF: 250,000 hours (MIL-HDBK-217F, ground benign)
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
