Description

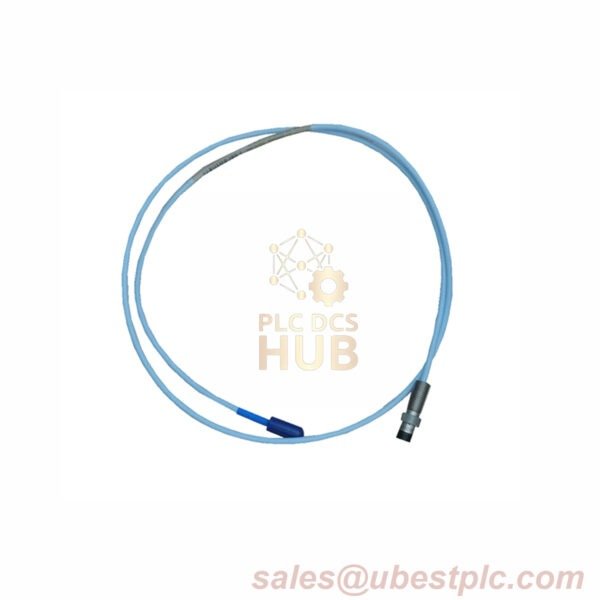

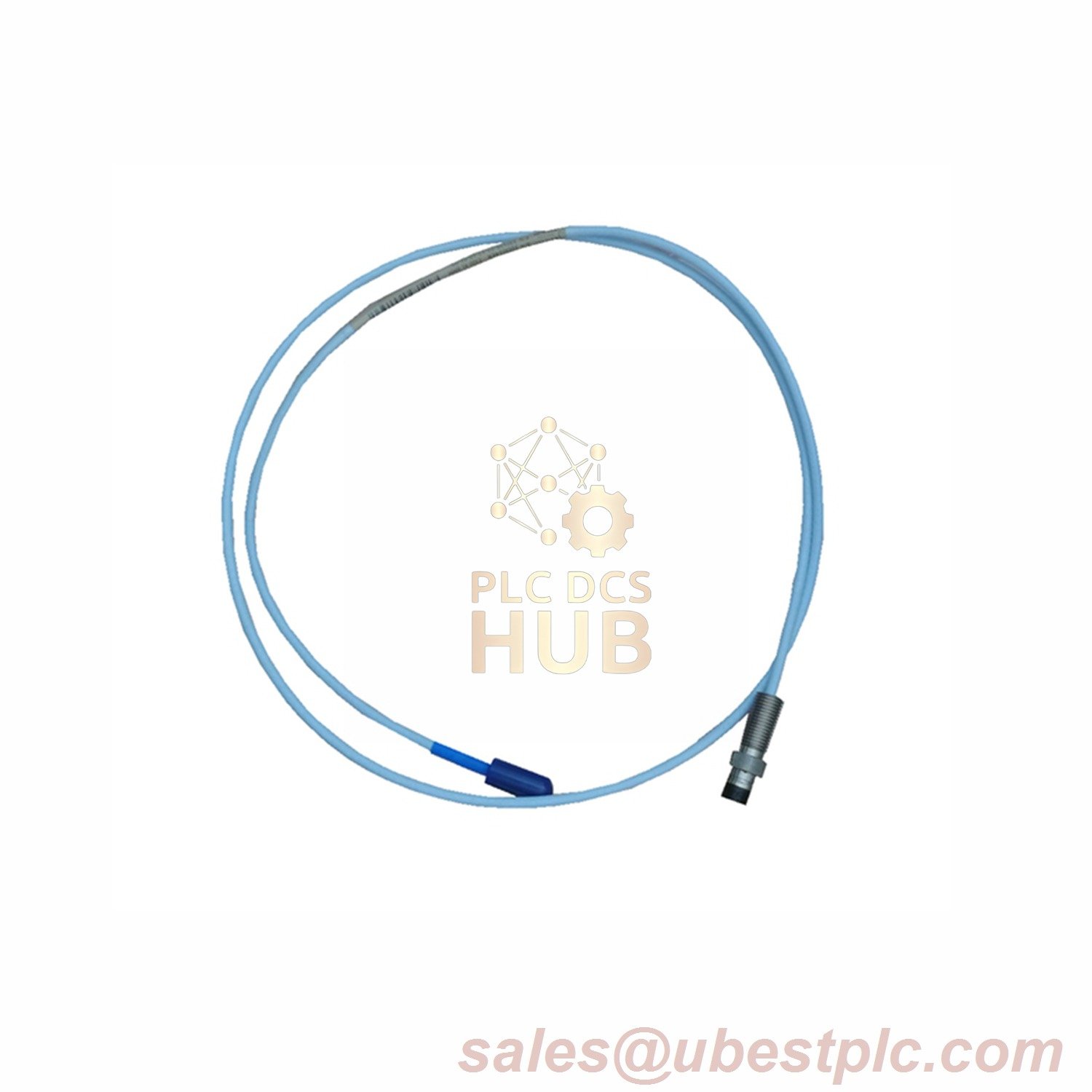

The 330105-02-12-90-02-00 is a long-range reverse-mount probe engineered for industrial machinery monitoring. With an extended 9.0-meter cable and 3/8-24 UNF threads, it delivers precise gap detection in hard-to-reach areas. Certified for general industrial use, it operates in -52°C to +177°C extremes with Viton® O-ring sealing.
Technical Specifications
| Model | 330105-02-12-90-02-00 |
|---|---|
| Suffix Codes | 90: 9.0-meter total length 02: Miniature ClickLoc coaxial connector 00: No agency approvals (general use) |
| Resistance | 9.87 Ω ±0.50 Ω (center to outer conductor) |
| Thread | 3/8-24 UNF (max engagement 0.563 in) |
| Temperature Range | -52°C to +177°C (probe tip), -51°C to +260°C (cable) |
| Weight | 323 g/m (11.4 oz/ft) |
Contact Information
For long-range monitoring solutions or custom testing:
Email: sales@ubestplc.com
