Description
Description

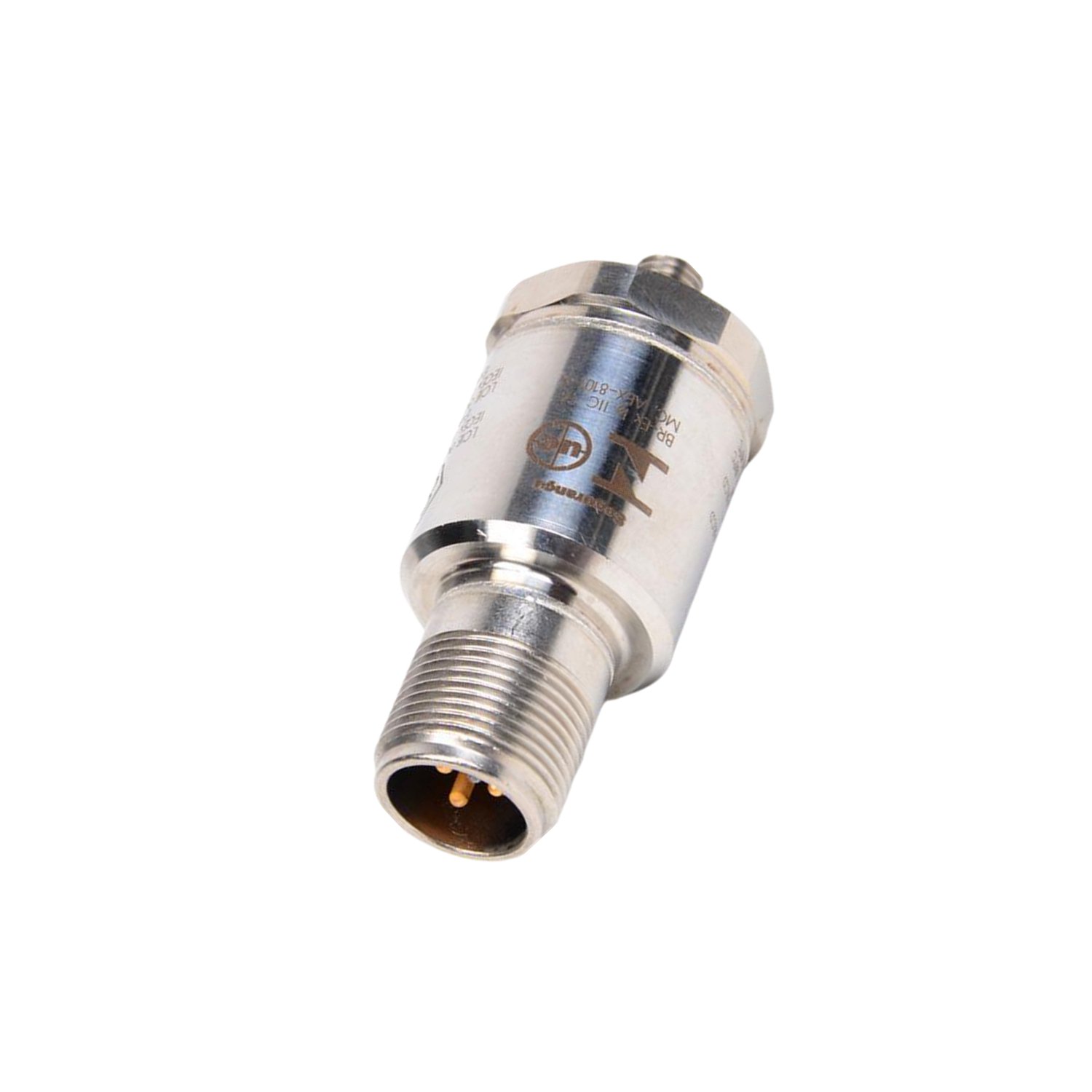

The 330400-02-CN is a rugged accelerometer designed for regional compliance in harsh industrial environments. Featuring an M8 x 1 integral stud mount and country-specific certifications, it delivers 10.2 mV/m/s² sensitivity with ±5% accuracy. Operates in -55°C to +121°C extremes with IP68 sealing for dust/water resistance.
Technical Specifications
| Model | 330400-02-CN |
|---|---|
| Sensitivity | 10.2 mV/m/s² ±5% (100 mV/g) |
| Frequency Response | 10 Hz – 15 kHz (±3 dB) |
| Acceleration Range | 490 m/s² (50 g) peak |
| Temperature Range | -55°C to +121°C (-67°F to +250°F) |
| Mounting Thread | M8 x 1 integral stud |
| Cable Length | 305 m (1000 ft) maximum |
Contact Information
For COO requests or regional compliance details:
Email: sales@ubestplc.com
