Description
Description

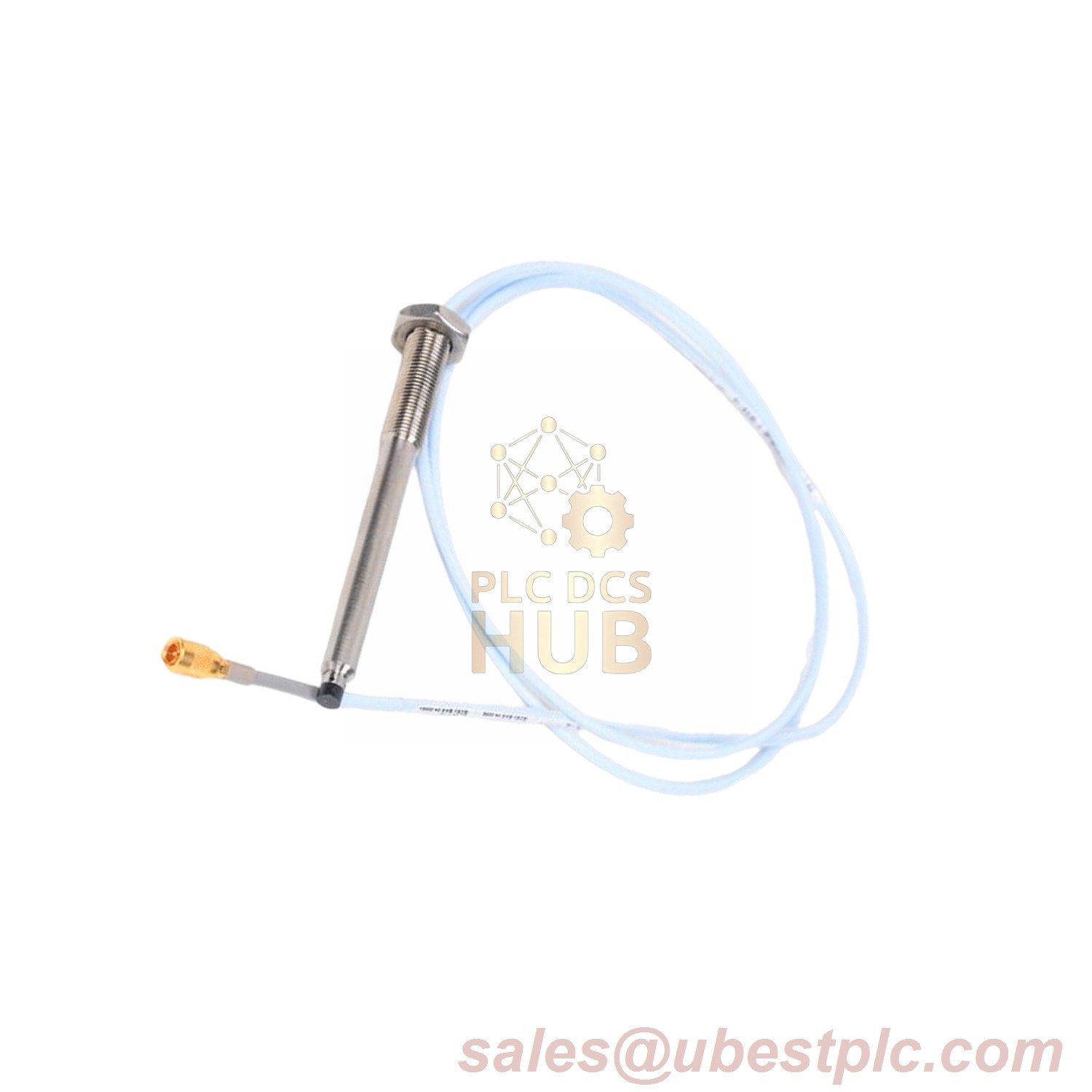

The Bently Nevada 330101-00-66-10-02-CN is a high-performance 8 mm proximity probe designed for industrial vibration monitoring. Featuring a 3/8-24 UNF thread and unarmored design, this probe integrates patented TipLoc and CableLoc technologies for superior durability and 330 N (75 lbf) cable pull strength.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330101-00-66-10-02-CN |
| Suffix Breakdown | -00 (0.0 in unthreaded length), -66 (6.6 in case length), -10 (1.0 m cable), -02 (ClickLoc connector), CN (country-specific approvals) |
| Product Type | 3300 XL 8 mm Probe, 3/8-24 UNF thread, unarmored |
| Total Length | 1.0 meter (3.3 feet) |
| DC Resistance (RPROBE) | 7.59 ± 0.50 Ω at 1.0 m |
| Cable Capacitance | 69.9 pF/m (21.3 pF/ft) |
| Characteristic Impedance | 50 Ω (nominal, 1 MHz to 10 MHz) |
| Signal-to-Noise Ratio | >60 dB (at 10 kHz) |
| Frequency Response | 0 to 12 kHz (±3 dB) |
| Max Field Wiring Length | 305 meters (1,000 feet) (shielded triad cable, 16–24 AWG) |
| Voltage Standing Wave Ratio | <1.5:1 (10 MHz) |
| Shock Resistance | 100 g (6 ms half-sine, 3 axes) |
| Ingress Protection | IP65 (probe tip and connector mated) |
| Magnetic Interference | <2% deviation at 50 Hz, 10 Gauss |
| Probe Tip Material | Polyphenylene Sulfide (PPS) with thickened encapsulation |
| Case Material | AISI 303/304 Stainless Steel |
| Weight | 323 g/m (11.4 oz/ft) |
Contact Support
For certification documents or custom configurations:
sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
