330907-05-30-05-02-CN 3300 NSv Reverse Mount Probe

Bently Nevada-logo
Categories: , , , , , , , , SKU: 330907-05-30-05-02-CN Tag:

$175.00 $462.00

0 reviews

Reviews Summary by AI:

60 in stock

Description

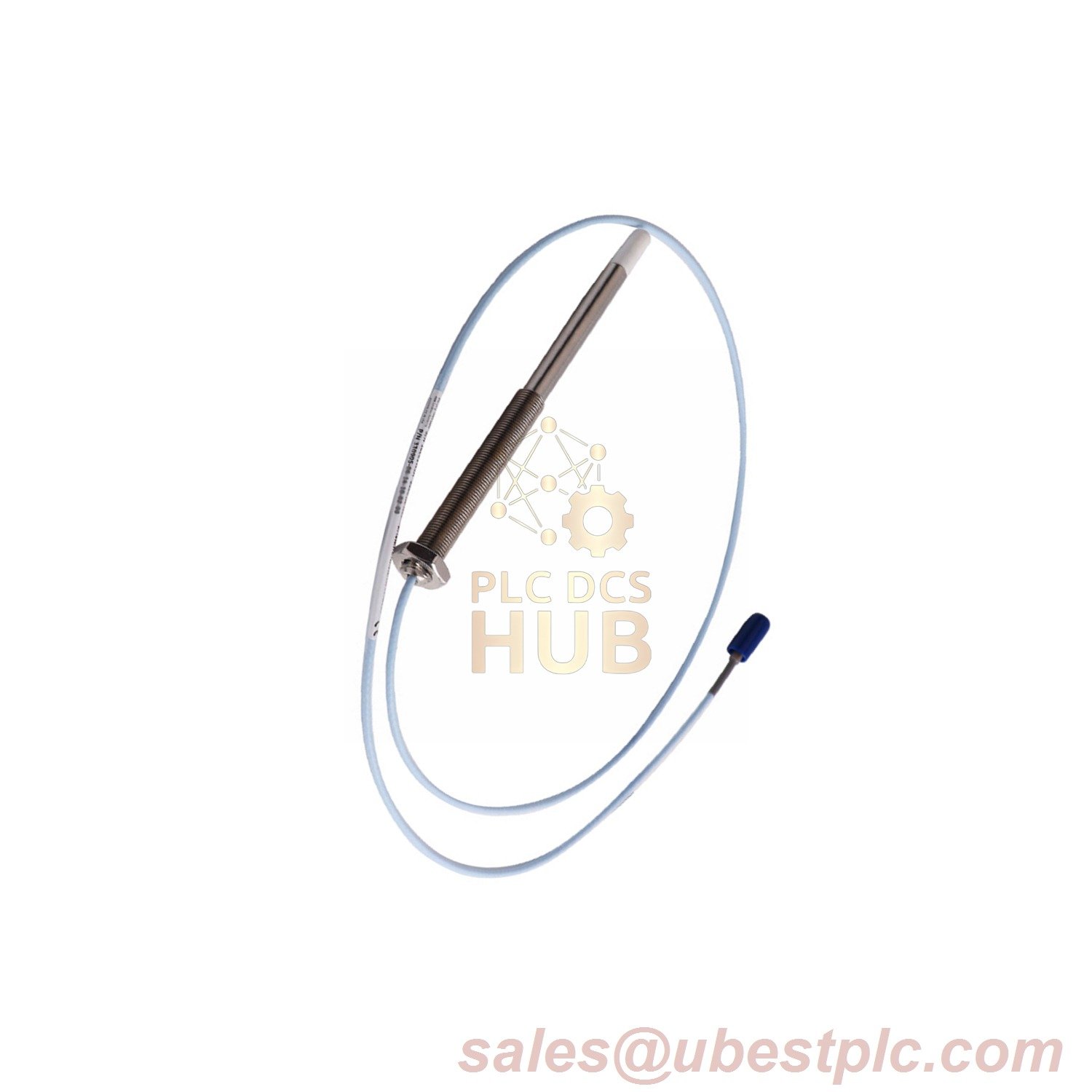

Bently Nevada 3300 NSv Reverse Mount Probe

New & Original with 12-month factory warranty. 330907-05-30-05-02-CN is engineered for harsh industrial environments, offering superior chemical resistance and precise vibration monitoring in process compressors. Features M10X1 threads, 0.5-meter armored cable, and Viton® O-ring sealing.

Technical Specifications

ParameterDetails
Part Number330907-05-30-05-02-CN
Suffix Code Breakdown
  • 05-30: M10X1 reverse-mount threads
  • 05: 0.5 m (20 in) cable length
  • 02: ClickLoc™ miniature coaxial connector
  • CN: Country-specific certification
Electrical
  • DC Resistance (0.5 m): 4.0 Ω ±0.5
  • Linear Range: 0.25–1.75 mm (10–70 mils)
  • Recommended Gap: 1.0 mm (40 mils)
  • Frequency Response: 0–10 kHz (±3dB)
Mechanical
  • Tip Material: Polyphenylene Sulfide (PPS)
  • Case Material: AISI 304 Stainless Steel
  • Max Torque: 22.6 N·m (200 in·lb)
  • Thread Engagement: 15 mm (M10X1)
Environmental
  • Operating Temp: -52°C to +177°C (-62°F to +351°F)
  • Pressure Seal: Viton® O-ring (avoid sustained <-34°C/-30°F)
  • Weight: 14–150 g (0.5–5.3 oz)

Contact Us: For COO or technical inquiries, email sales@ubestplc.com.

Additional information

Weight0.15 kg
Dimensions300 × 330 × 60 mm
