3300 XL 8 mm Proximity Probe – Bently Nevada 330101-33-53-10-02-CN

Description

Product Summary

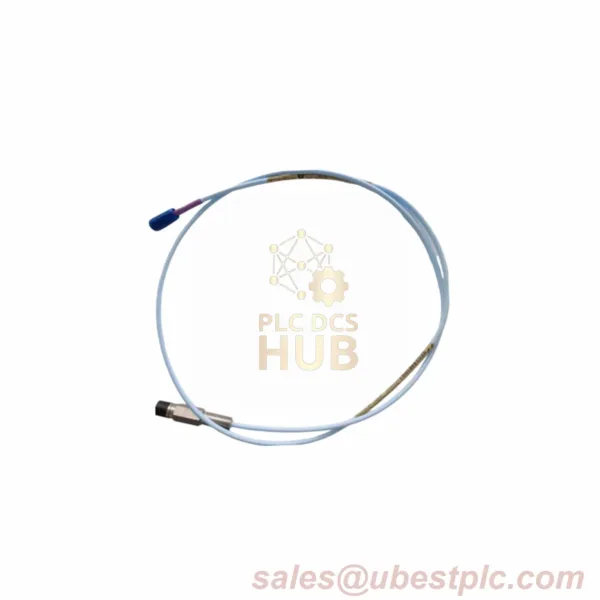

The Bently Nevada 3300 XL 8 mm Probe (Model: 330101-33-53-10-02-CN) is designed for precision vibration monitoring in industrial settings. Features a 3.3-inch unthreaded length and 5.3-inch case for flexible installation. Includes CN country-specific certification and optional COO.

Core Specifications

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Probe (330101-33-53-10-02-CN)
• Unthreaded Length: 3.3 in (33)
• Case Length: 5.3 in (53)
• Cable Length: 1.0 m (10)
• Connector: Miniature ClickLoc, standard cable (02)
• Certification: CN Country Approval

Technical Parameters

• DC Resistance: 7.59Ω ±0.50 (1.0m cable).
• Cable Capacitance: 69.9 pF/m (21.3 pF/ft).
• Linear Range: 0.25–2.3 mm (10–90 mils).
• Gap Setting: 1.27 mm (50 mils/-9Vdc).
• Scale Factor: 7.87 V/mm (±5% for 1/5m systems).
• Pressure Seal: Viton® O-ring (not pre-tested).
• Weight: 11.4 oz/m (323 g/m).

Environmental Ratings

• Operating Temp: -62°F to +350°F (-52°C to +177°C).
• Extended Temp (ETR): Tip: -62°F to +425°F; Cable: -60°F to +500°F.
• Humidity: <3% ASF change at 93% humidity (56 days).

Installation Guide

• Use 16-24 AWG shielded cable (max 305m/1,000ft).
• Avoid temps below -30°F (-34°C) to protect seals.
• Ensure secure mounting with 3/8-24 UNF thread.

Industry Applications

• Marine Engines: Monitors vibrations in ship propulsion systems.
• Paper Mills: Detects bearing wear in high-speed rollers.
• Water Treatment: Ensures pump reliability in humid conditions.

Package Contents

• 3300 XL 8 mm Probe
• Standard ClickLoc Cable
• Installation Guide

Warranty & Support

12-month warranty. Excludes seal damage from extreme cold.

Contact: sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
