Description

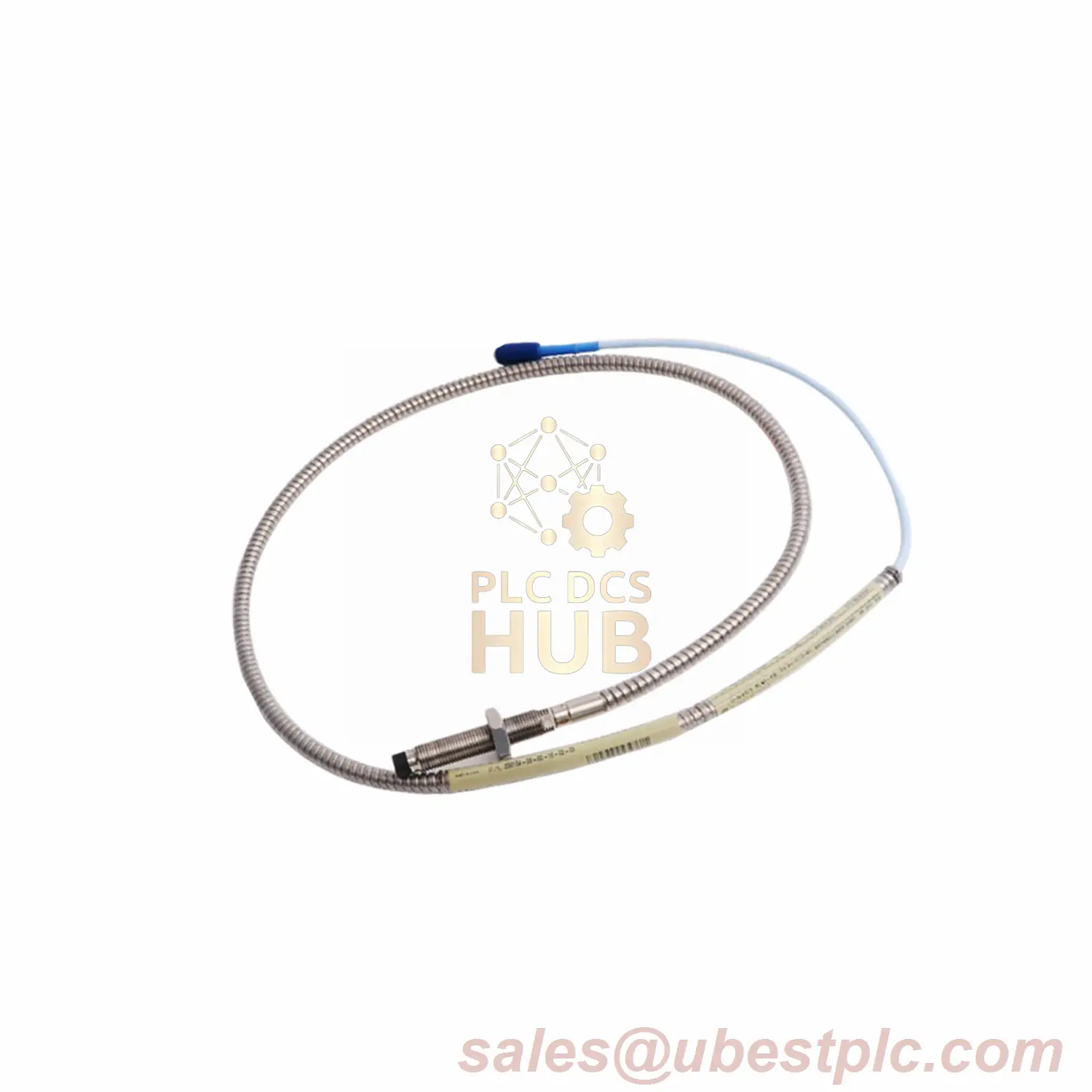

Bently Nevada Probe 330101-00-33-10-02-CN
New 330101-00-33-10-02-CN | Country-Specific Approval | Rugged Design
Part Number Breakdown
- 00: 0.0″ Unthreaded
- 33: 3.3″ Case Length
- 10: 1.0m Cable (3.3 ft)
- 02: ClickLoc Connector + Standard Cable
- CN: Country-Specific Compliance
Key Specifications
- Resistance: 7.59Ω ±0.50
- Voltage: -17.5V to -26V DC
- Temp Range: -52°C to +177°C (Probe) / -51°C to +260°C (Cable)
- Linear Range: 0.25mm to 2.3mm (10-90 mils)
- Humidity Tolerance: <3% ASF change @93% RH for 56 days
Design Features
- TipLoc® Molding: Shock-resistant bond between tip and body.
- CableLoc® Design: 75 lbf pull strength for secure attachment.
- Materials: PPS Plastic Tip + AISI 303/304 SST Case + Viton® Seal.
Industrial Applications
- Food Processing: Conveyor belt alignment in dry ingredient handling.
- Textile Machinery: Spindle speed monitoring in humid factories.
- Lab Equipment: Precision motor vibration analysis in R&D labs.
Certifications & Compliance
- CN Country-Specific Safety Standards
- FCC Part 15, EMC EN 61000-6-2/4
- RoHS 2011/65/EU Compliant
Installation Guide
- Max Field Wiring: 305m (1,000 ft) shielded triad cable
- Optimal Gap: 1.27mm (50 mils) @ -9V DC
- Avoid Temperatures <-34°C (-30°F) to protect seal
Support: sales@ubestplc.com | COO Available | Warranty: 12 Months
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
