Description
Product Description

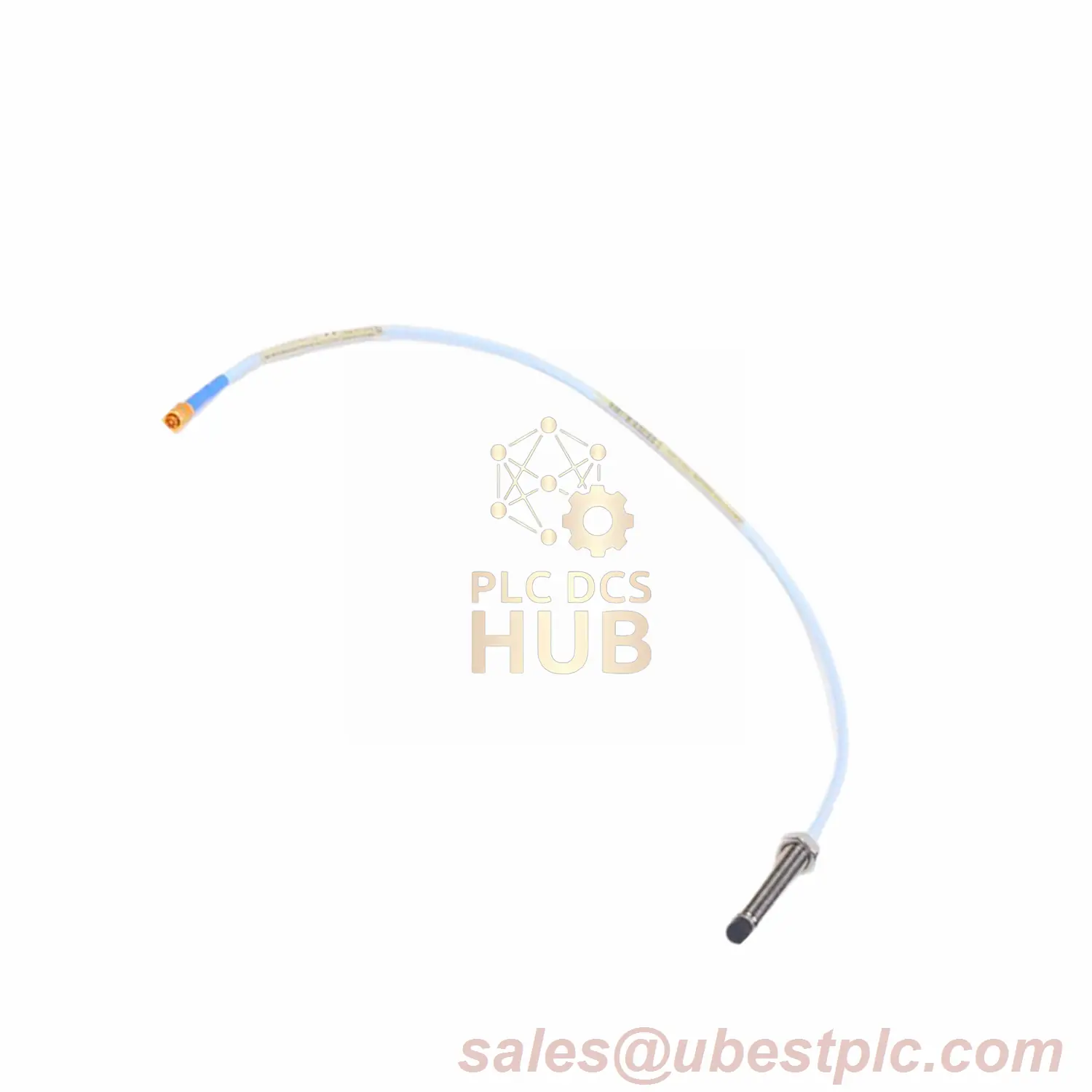

The Bently Nevada 330102-00-24-10-02-00 is a high-performance 3300 XL 8 mm Proximity Probe designed for precision vibration monitoring in industrial applications. Featuring a 3/8-24 UNF threaded stainless steel case and PPS probe tip, it ensures durability and accuracy in harsh environments. Ideal for machinery health monitoring, this probe includes a Vitron® O-ring seal for pressure differential protection.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- Full Suffix: 00-24-10-02-00
- Range: 2 mm (80 mils)
- Accuracy: ±0.50 Ω (DC Resistance)
- Output Signal: Linear range -1 to -17 Vdc
- Operating Temp: -52°C to +177°C
- Cable: 1.0 meter with ClickLoc connector
- Weight: 323 g/m (11.4 oz)
Installation Guide
Mount using 3/8-24 UNF thread with max engagement of 0.563 in. Set gap to -9 Vdc (~1.27 mm) for radial vibration. Use shielded triad cable (16-24 AWG) up to 305 meters.
Certifications
- Class I, Zone 0/2
- Groups A, B, C, D, E, F, G
- IEC 68 2 3 humidity tested
Package & Warranty
- 1x Proximity Probe
- 1x ClickLoc connector
- 1-year warranty
Real-World Application
Used in gas turbines to monitor shaft vibration, preventing unplanned downtime in energy plants.
