Description

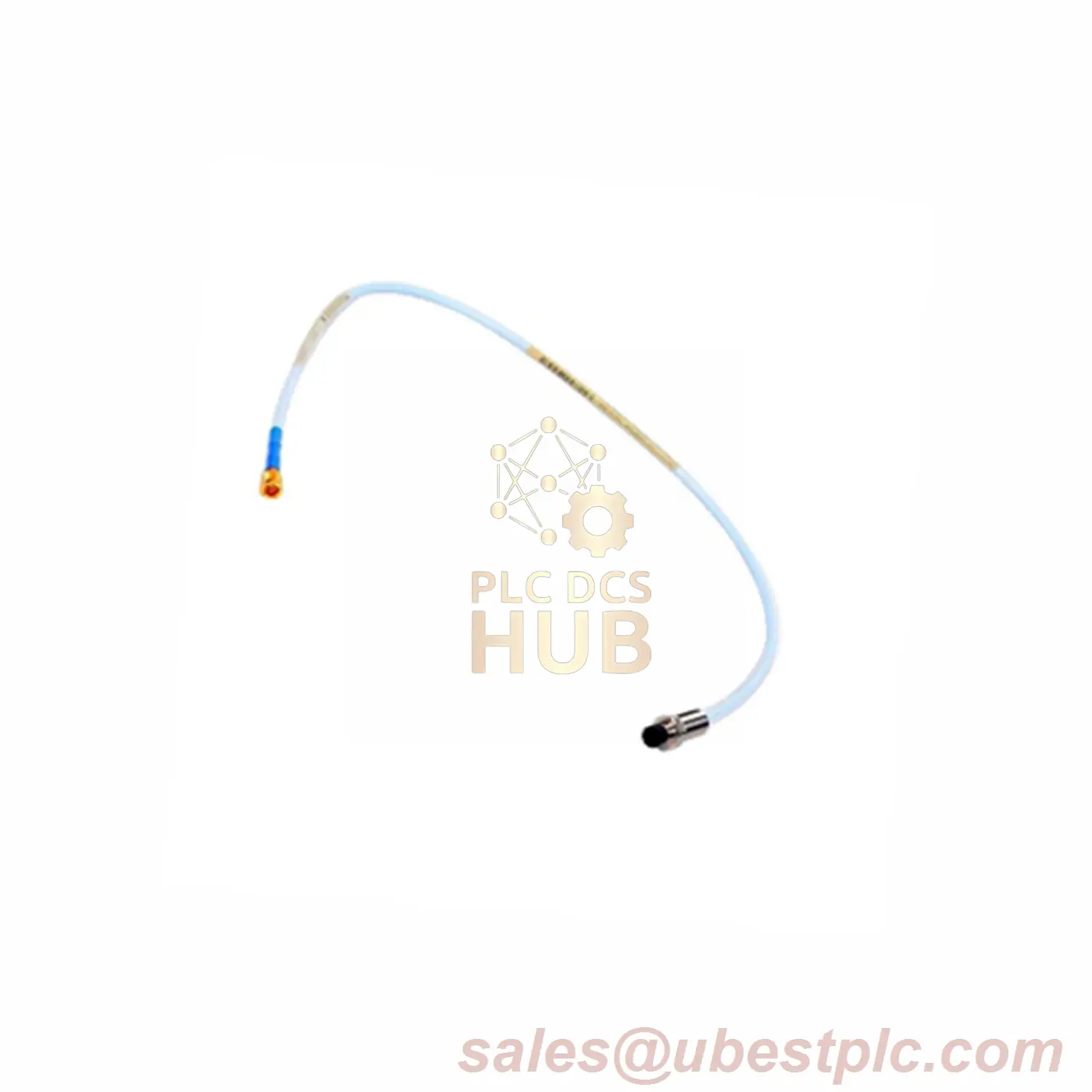

Bently Nevada 3300 XL 8 mm Proximity Probe
Core Specifications for 330103-00-05-10-12-00
- Brand: Bently Nevada
- Part Number: 330103-00-05-10-12-00
- Suffix Configuration:
- Unthreaded Length: 00 (0 mm)
- Case Length: 05 (50 mm)
- Cable: 1.0 m (3.3 ft) with FluidLoc® technology
- Connector: ClickLoc Mini-Coaxial (IP67-rated)
Performance Metrics
- Linear Range: 0.25–2.3 mm (10–90 mils) / Output Signal: -1 to -17 Vdc
- DC Resistance: 7.59Ω ±0.50Ω at 25°C
- Temperature Limits:
- Probe Tip: -52°C to +218°C (Extended Range)
- Cable: -51°C to +260°C (FluidLoc® enhanced durability)
- Humidity Resistance: ≤3% ASF deviation at 93% RH (56 days)
Installation Guidelines
- Thread Engagement: M10x1 (Max 15 mm)
- Wiring: 16–24 AWG shielded triad cable (305 m max)
- Pressure Seal: Viton® O-ring (non-tested standard; custom testing available)
Certifications
- ATEX/IECEx:
- Zone 0: AEx/Ex ia IIC T1-T5 (Groups A-G)
- Zone 2: AEx/Ex nA/ec IIC T1-T5
- IEC 68-2-3 humidity compliance
Industrial Applications
- Hydroelectric Turbines: Monitoring shaft runout in high-moisture environments.
- Chemical Processing: Vibration analysis in corrosive fluid pumps.
- Marine Propulsion: Bearing health monitoring for shipboard diesel engines.
Contact: sales@ubestplc.com for hazardous area certifications or FluidLoc® specifications.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
