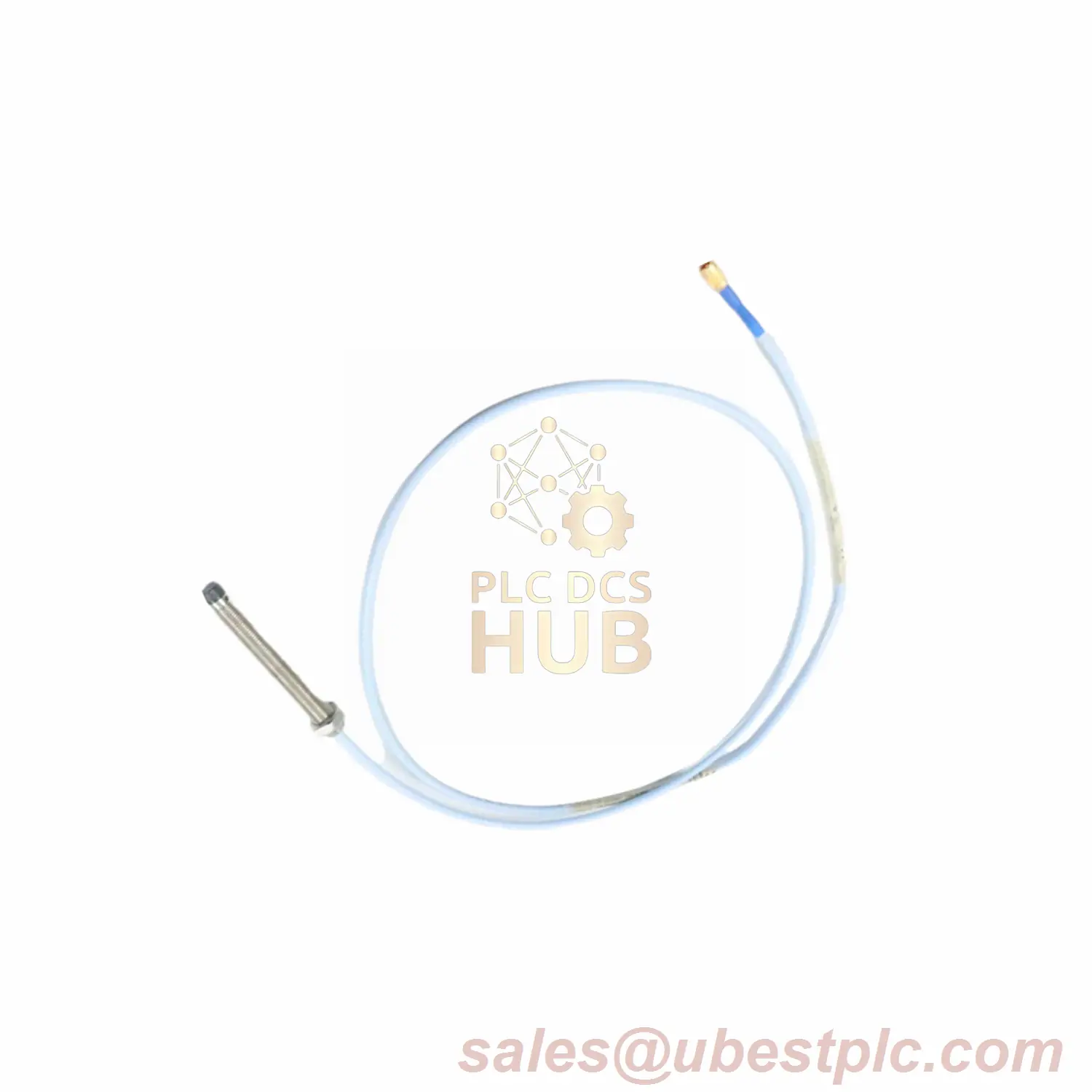

Bently Nevada 3300 XL 8mm Proximity Probe
330104-00-08-90-02-05 Long-range industrial vibration monitoring with 9-meter armored cable for installations requiring extended reach in hazardous zones.
Core Specifications
- Detection Range: 0.1-3.8 mm (4-150 mils)
- Output Voltage: -4 Vdc to -20 Vdc (scaling: 7.87 V/mm)
- Frequency Bandwidth: 0-15 kHz (±1 dB)
- Phase Tolerance: ±3° from 2 kHz to 10 kHz
- Cable Capacitance: ≤30 pF/meter
Advanced Features
- Shock Resistance: 100g peak, 11ms duration
- EMI Protection: 20 V/m @ 10 kHz to 1 GHz
- Dielectric Strength: 1500 Vrms (50/60 Hz, 1 minute)
- Storage Temp: -60°C to +150°C
- Terminal Resistance: 4.7 kΩ ±1%
Certification Details for 330104-00-08-90-02-05
- Global Approvals: ATEX II 3G Ex ec IIC T4 Gc, IECEx Ex ec IIC T4 Gc, CSA Class I Div 2
- Marine Compliance: ABS, DNV-GL, LR Type Approval
Installation Parameters
- Torque Specification: 6.8 N·m (60 lb-in) max
- Bending Radius: 25mm permanent / 15mm temporary
- Axial Load Capacity: 22 N (5 lbf) continuous
Performance Validation
- MTBF: 250,000 hours @ 40°C
- Temperature Drift: 0.05%/°C (25°C ref)
- Hipot Test: 1500 VAC @ 50 Hz for 60 sec
Industrial Use Cases
- Chemical Processing: Reactor shaft alignment monitoring
- Paper Manufacturing: Dryer roll vibration analysis
- Marine Applications: Propulsion engine monitoring (DNV-certified)
Technical Support: Email sales@ubestplc.com for installation drawings or custom configurations.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
