Product Description

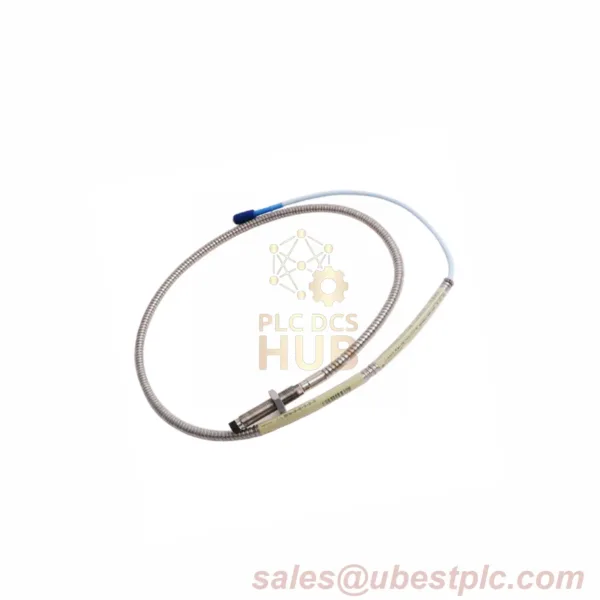

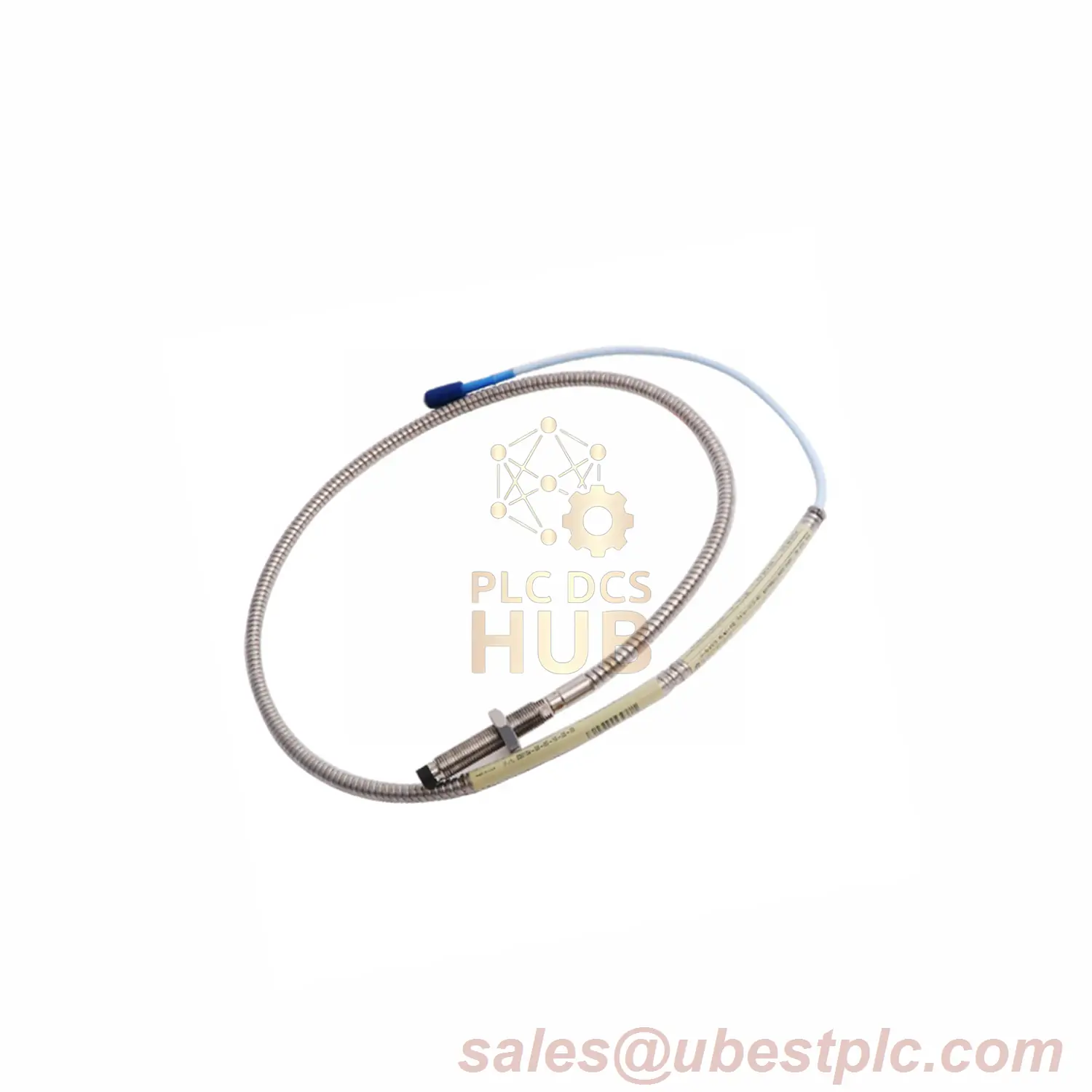

The Bently Nevada 3300 XL 8 mm Proximity Probe (Model: 330104-01-08-50-01-05) delivers industrial-grade vibration monitoring with an extended 80mm stainless steel case and 5.0-meter reinforced cable. Designed for critical infrastructure, it features triple certifications (CSA/ATEX/IECEx) and a Viton® O-ring seal for pressure integrity. The ClickLoc connector with protector ensures secure cabling in high-vibration environments.
Technical Specifications
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- 330104-01-08-50-01-05 Suffix Code: 01-08-50-01-05 (Unthreaded: 10mm | Case: 80mm | Cable: 5.0m | Miniature coaxial ClickLoc connector with connector protector, standard cable: 01 | 05: CSA, ATEX, IECEx Approvals)
- Measurement Range: 1.27 mm (50 mils) gap with AISI 4140 steel target
- DC Resistance: 8.73 Ω ±0.50 @ 5.0 meters
- Output Impedance: 50 Ω ±5%
- Power Range: -17.5 Vdc to -26 Vdc (12 mA max)
| Core Performance | Installation | Environmental |
|---|---|---|
| Accuracy: ±0.5Ω | Mounting Thread: M10×1 | Altitude: ≤2000m |
| Linearity: ±3% FSO | Sensor Compatibility: 5m Proximitor only | Temp Range: -40°C to +125°C* |
Certifications & Approvals
- ATEX: II 1/2G Ex ia IIC T4-T1 Ga/Gb
- IECEx: Ex ia IIC T4-T1 Ga
- CSA: Class I, Div 1, Groups A-D
- IP Rating: IP67 (probe tip)
Key Advantages
- ✅ 40% faster installation with anti-misalignment ClickLoc
- ✅ Corrosion-resistant SST/PPS construction
- ✅ Global compliance with CSA/ATEX/IECEx
Contact our engineers: sales@ubestplc.com for custom configurations
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
