3300 XL 8 mm Proximity Probes – 330141-08-15-11-05 Bently Nevada

Description

Product Overview

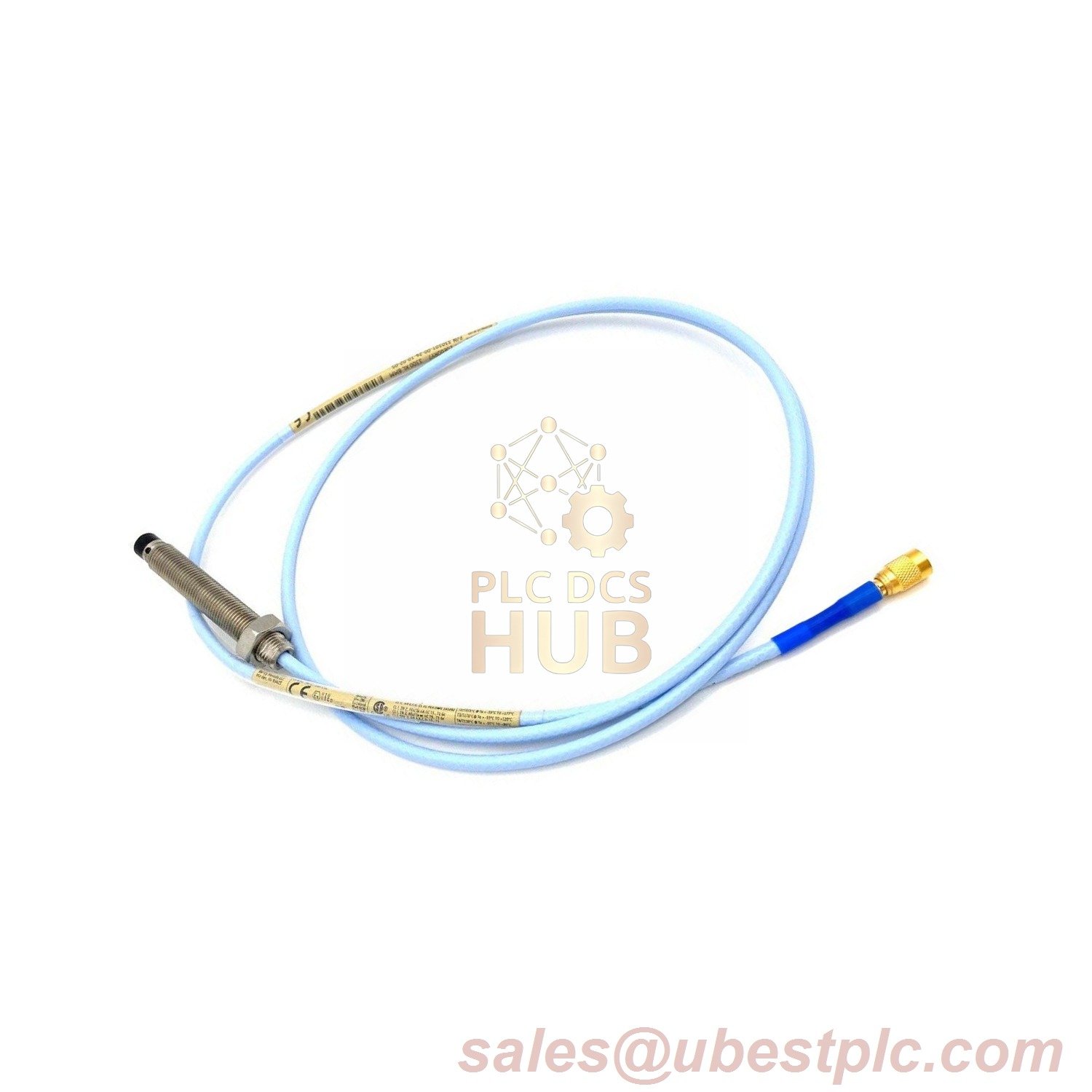

The Bently Nevada 3300 XL 8 mm Armored Probe (Model 330141-08-15-11-05) is engineered for extreme industrial environments, combining hazardous-area certifications with armored durability. Featuring CSA, ATEX, and IECEx approvals, this probe is ideal for explosive atmospheres, while its stainless steel armor and FluidLoc cable provide unmatched resistance to crushing forces and fluid ingress. The 1.5-meter cable with a ClickLoc connector protector ensures reliability in high-vibration machinery, and the 8 mm PPS plastic tip enhances longevity in harsh conditions. Designed for oil, gas, and chemical industries, this probe delivers precision in temperature extremes and humid settings, with optional COO documentation for regulatory compliance.

Technical Specifications

• Brand: Bently Nevada
• Model: 330141-08-15-11-05
  • Suffix Breakdown:
    • 08: 0.8-inch case length
    • 15: 1.5-meter cable (4.9 feet)
    • 11: ClickLoc connector with protector + FluidLoc cable
    • 05: CSA, ATEX, IECEx certifications
• Probe Tip: Polyphenylene sulfide (PPS)
• Armor Material: 316 stainless steel braid (0.5 mm thickness)
• Crush Resistance: 3,000 N (674 lbf) per ISO 1813
• Fluid Pressure Resistance: 15 bar (217 psi) static pressure rating

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
