Bently Nevada – Proximity Probes 330141-08-10-12-00

Description

Overview

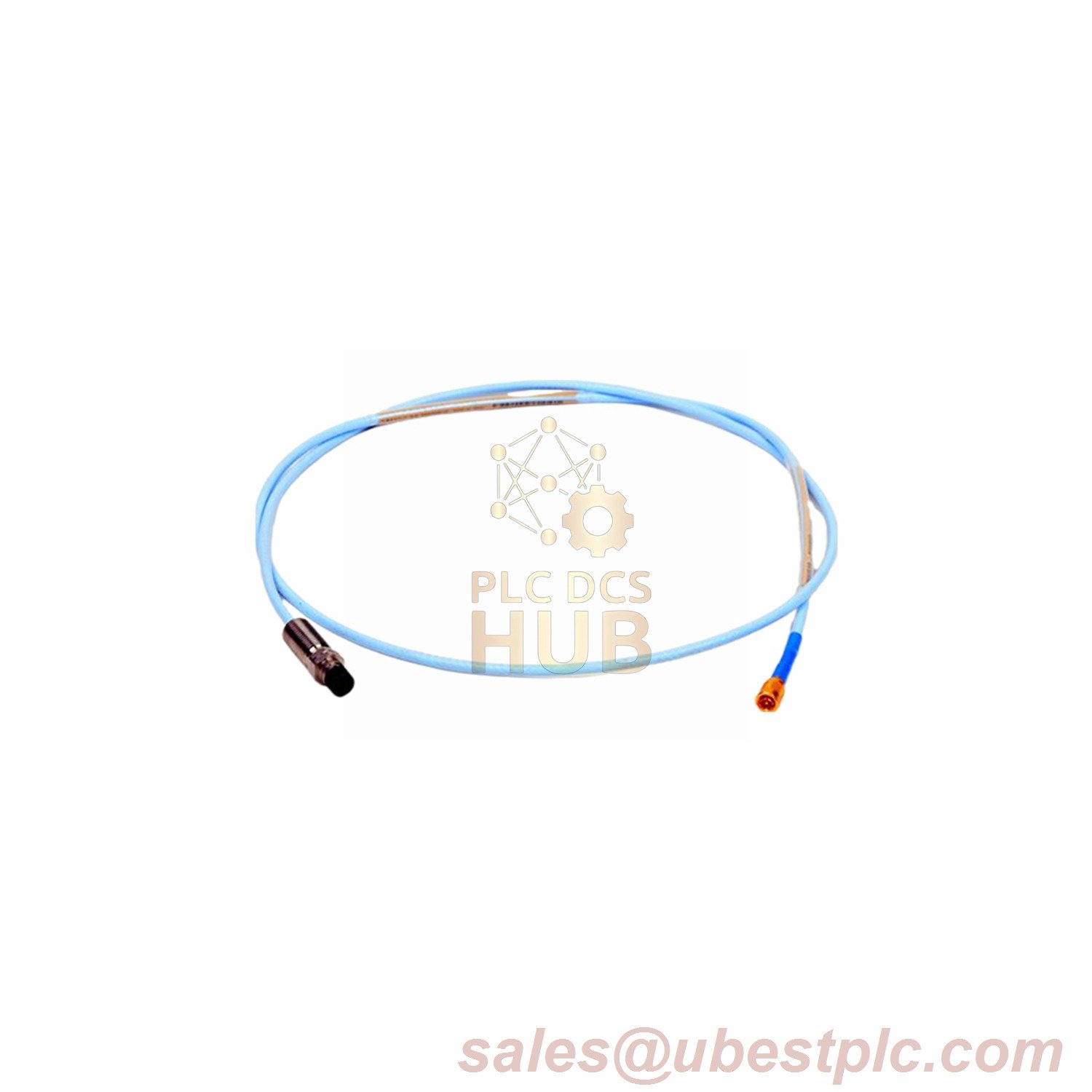

The Bently Nevada 330141 8 mm Probe (Product No. 330141-08-10-12-00) is a rugged, short-range solution for challenging environments. Featuring a 1.0-meter FluidLoc cable and armored stainless steel casing, it prevents fluid ingress and resists physical damage. Designed without certifications, this probe integrates patented TipLoc and CableLoc technologies for reliable vibration monitoring in compact machinery or corrosive settings.

Technical Specifications

• Brand: Bently Nevada
• Model: 330141 8 mm Armored Probe
• 330141-08-10-12-00 Suffix Breakdown:
  • 08: 0.8-inch armored case length
  • 10: 1.0-meter cable (3.3 feet)
  • 12: ClickLoc connector + FluidLoc cable
  • 00: No certifications required
• DC Resistance: 7.58 Ω ±0.49 (1.0m cable)
• Scale Factor (ISF):
  • Standard (1/5m): 7.85 V/mm ±4.4%
  • Extended (9m): 7.85 V/mm ±6.1%
• Deviation from Straight Line (DSL):
  • Standard (1/5m): < ±0.022 mm (±0.87 mil)
  • Extended (9m): < ±0.034 mm (±1.34 mil)
• Materials: PPS tip, AISI 317 stainless steel armored case
• Weight: 325 g/m (11.5 oz/ft)
• Pull Strength: 342 N (76.8 lbf) via CableLoc
• Humidity Tolerance: < 2.3% ASF shift at 95% humidity (IEC 68-2-3, 56 days)

Contact Information
For inquiries or custom configurations, email sales@ubestplc.com. Our team will gladly assist with technical details or order processing.

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
