Description

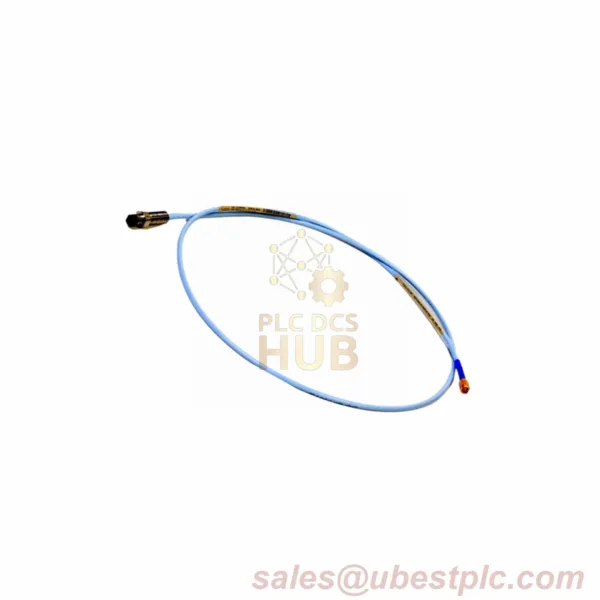

Bently Nevada 330106-05-30-10-12-05 Hazardous Area Probe
Technical Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Full Model | 330106-05-30-10-12-05 | Resistance | 7.59Ω ±0.50 |
| Cable Length | 1.0m (3.3 ft) | Weight | 323g total |
| Thread | M10×1 (15mm max) | Insulation | FEP Standard |
| Tip Material | PPS Polymer | Case Material | 304 SST |
| Max Pull Force | 330N case | Min Temp | -34°C limit |
Certification Details
- ATEX approved for explosive atmospheres
- IECEx certified for international use
- CSA compliant for North America
- Humidity tested per IEC 68-2-3
Environmental Ratings
| Operating Range | -52°C to +260°C |
| Humidity Tolerance | 93% for 8 weeks |
| Pressure Seal | Viton® O-ring |
| Cable Options | FEP or PFA insulation |
Installation Guide
- Max thread depth: 15mm
- Critical cold limit: -34°C
- Cable bend radius: >25mm
- Connector pull limit: 270N
Warranty & Shipping
- 12-month manufacturer warranty
- Global delivery via FedEx/UPS/DHL
- Express shipping: 1-3 business days
