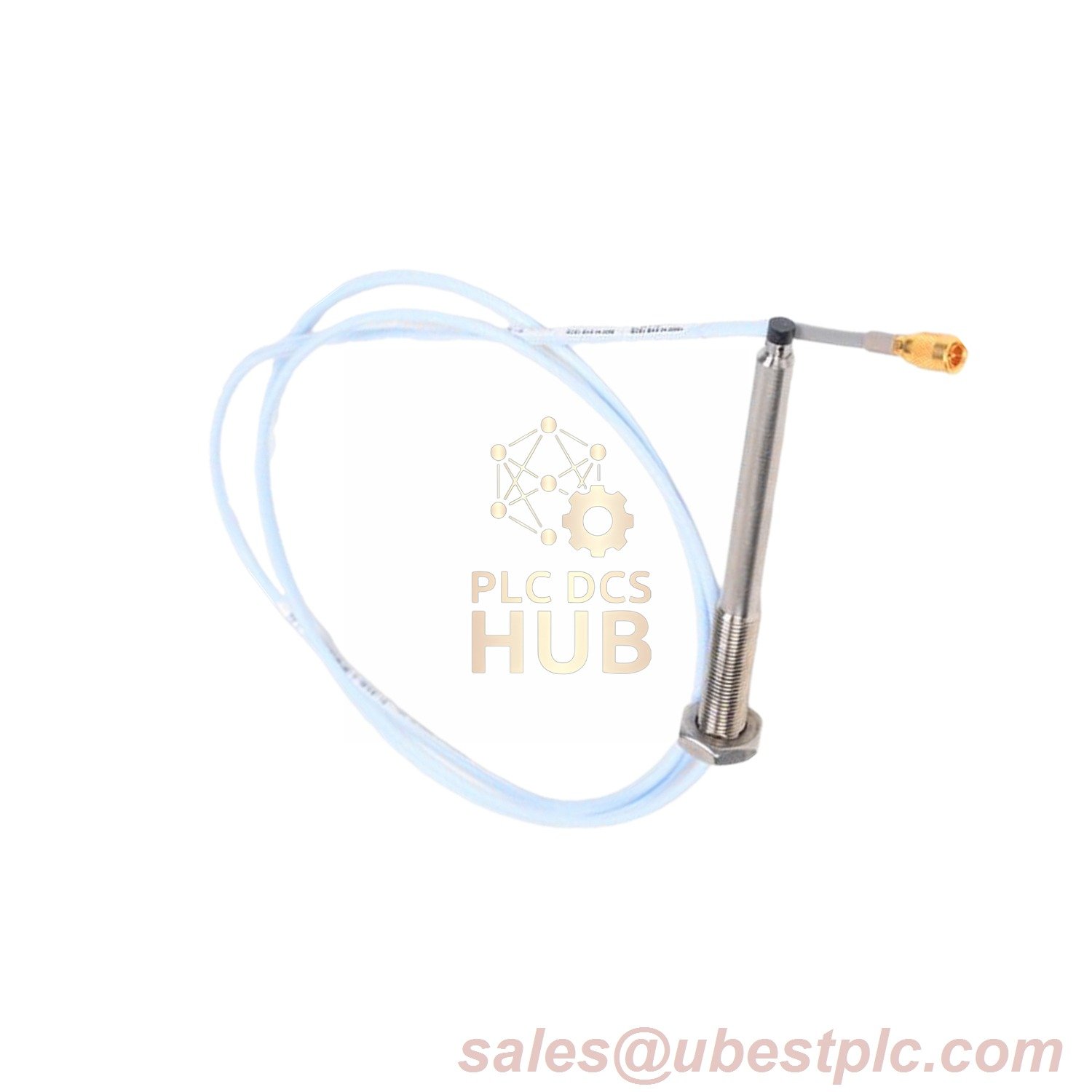

330101-00-28-10-12-CN Bently Nevada – 3300 XL 8 mm Probe

Description

Overview

The Bently Nevada 3300 XL 8 mm Probe (P/N: 330101-00-28-10-12-CN) delivers enhanced durability for industrial vibration monitoring. Featuring a robust 8 mm PPS plastic tip and stainless steel case, it withstands harsh environments while ensuring precise measurements. Additionally, its patented TipLoc and CableLoc technologies improve tip bonding and cable retention, offering 75 lbf pull strength. The optional FluidLoc cable prevents fluid ingress, making it ideal for oil-lubricated machinery. Designed for radial vibration applications, it operates across a broad temperature range (-62°F to +425°F) and supports field wiring up to 1,000 feet.

Technical Specifications

• Brand: Bently Nevada
• Model: 330101-00-28-10-12-CN
  • Suffix Breakdown:
    • 00: 0.0″ unthreaded length
    • 28: 2.8″ overall case length
    • 10: 1.0m total length (3.3 ft)
    • 12: Miniature coaxial ClickLoc connector + FluidLoc cable
    • CN: Country-specific agency approvals
• Probe Type: 8 mm diameter, 3/8-24 UNF thread, unarmored
• Linear Range: 2 mm (80 mils), starting at 0.25 mm (10 mils)
• Scale Factor: 7.87 V/mm ±5% (5/1m systems)
• Temperature Range:
  • Standard: -62°F to +350°F (-52°C to +177°C)
  • Extended: Up to +425°F (+218°C) for probe tip
• Materials:
  • Tip: Polyphenylene sulfide (PPS)
  • Case: AISI 303/304 stainless steel
• Weight: 323 g/m (11.4 oz)
• Pressure Seal: Viton® O-ring (untested; custom testing available)

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
