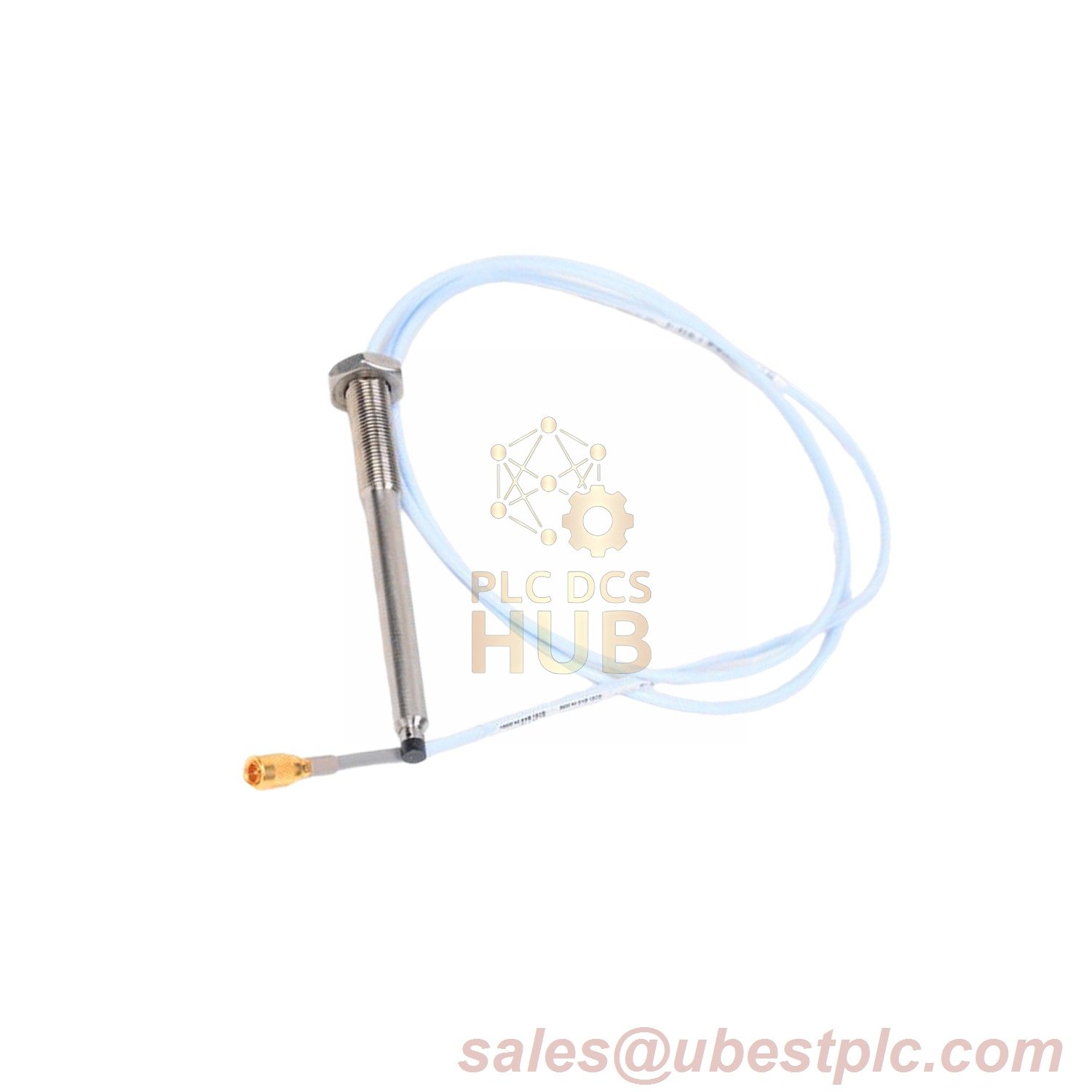

Bently Nevada 330101-00-43-10-02-CN 3300 XL 8 mm Probe is a high-performance industrial sensor engineered for precision monitoring in vibration, position, and speed applications. Featuring a 3/8-24 UNF thread design without armor, this probe integrates patented TipLoc and CableLoc technologies for enhanced durability and 330 N (75 lbf) cable pull resistance. Ideal for harsh environments, it supports optional FluidLoc cables to prevent fluid ingress.

Technical Data for 330101-00-43-10-02-CN

  • Brand: Bently Nevada
  • Model: 3300 XL 8 mm Probe (Unarmored)
  • Product Suffix Breakdown:
    • -00: 0.0 in unthreaded length
    • -43: 4.3 in overall case length
    • -10: 1.0-meter cable (3.3 feet)
    • -02: Miniature ClickLoc connector, standard cable
    • CN: Country-specific agency certifications
  • DC Resistance: 7.59 Ω ±0.50 @ 1.0m length
  • Cable Capacitance: 69.9 pF/m (21.3 pF/ft)
  • Field Wiring: 0.2–1.5 mm² (16–24 AWG), max 305m (1,000 ft)
  • Linear Range: 0.25–2.3 mm (10–90 mils) at -1 to -17 Vdc
  • Recommended Gap: 1.27 mm (50 mils) @ -9 Vdc
  • Weight: 323 g/m (11.4 oz/ft)
  • Temperature Range:
    • Standard: -52°C to +177°C (-62°F to +350°F)
    • Extended: +260°C (+500°F) for cable/connector
  • Pressure Seal: Viton® O-ring (untested; contact for custom validation)
  • Humidity Resistance: <3% ASF change @ 93% RH (56 days per IEC 68-2-3)

Note: The 8 mm probe design offers superior ruggedness with PPS-encapsulated coils. Use FluidLoc cables only if required to prevent fluid migration.

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
