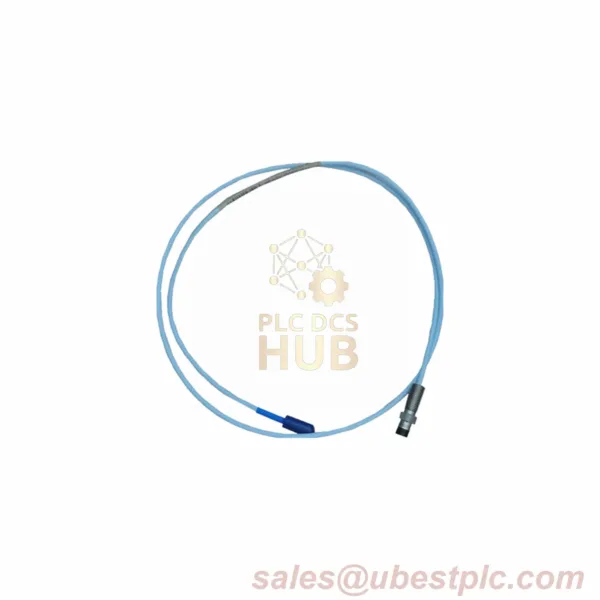

330101-00-54-10-02-00 Bently Nevada – 3300 XL 8 mm Proximity Probe Without Armor

Description

Product Overview

The Bently Nevada 3300 XL 8 mm Probe (Product No. 330101-00-54-10-02-00) is built for tough vibration monitoring in machines. It has a 5.4-inch stainless steel case and 3/8-24 UNF thread for easy installation. Features like TipLoc and CableLoc make it strong against pulls (330 N) and physical damage. Optional FluidLoc stops oil leaks through the cable. Perfect for high-stress industrial uses.

Key Specifications

Performance Details

• Measurement Range: 0.25–2.3 mm (10–90 mils).
• Output Signal: 7.87 V/mm ±5% (1/5 m systems) or ±6.5% (9 m/ETR).
• Humidity Resistance: Less than 3% error in 93% humidity (56 days).
• Cable Pull Strength: 330 N (75 lbf).

Temperature Limits

• Standard Use: -52°C to +177°C (-62°F to +350°F).
• High-Temp Probe Tip: Up to +218°C (+425°F).
• Cable & Connector: -51°C to +260°C (-60°F to +500°F).
• Do not store below -34°C (-30°F) to avoid seal damage.

Installation Guide

• Use shielded triad cables (16–24 AWG) for best signal quality.
• Max. wiring length: 305 m (1,000 ft).
• Set radial vibration gap to -9 Vdc (~1.27 mm/50 mils).

Real-World Uses

• Ship Engines: Monitor vibrations in marine engines exposed to saltwater and high heat.
• Chemical Plants: Track pump health in corrosive environments with FluidLoc.
• Mining Equipment: Ensure reliability in dust-heavy, high-vibration crushers.

Support & Services

• COO (Certificate of Origin): Available if needed.
• Warranty: Covered under standard terms.
• Contact sales@ubestplc.com for pressure seal tests or special orders.

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
