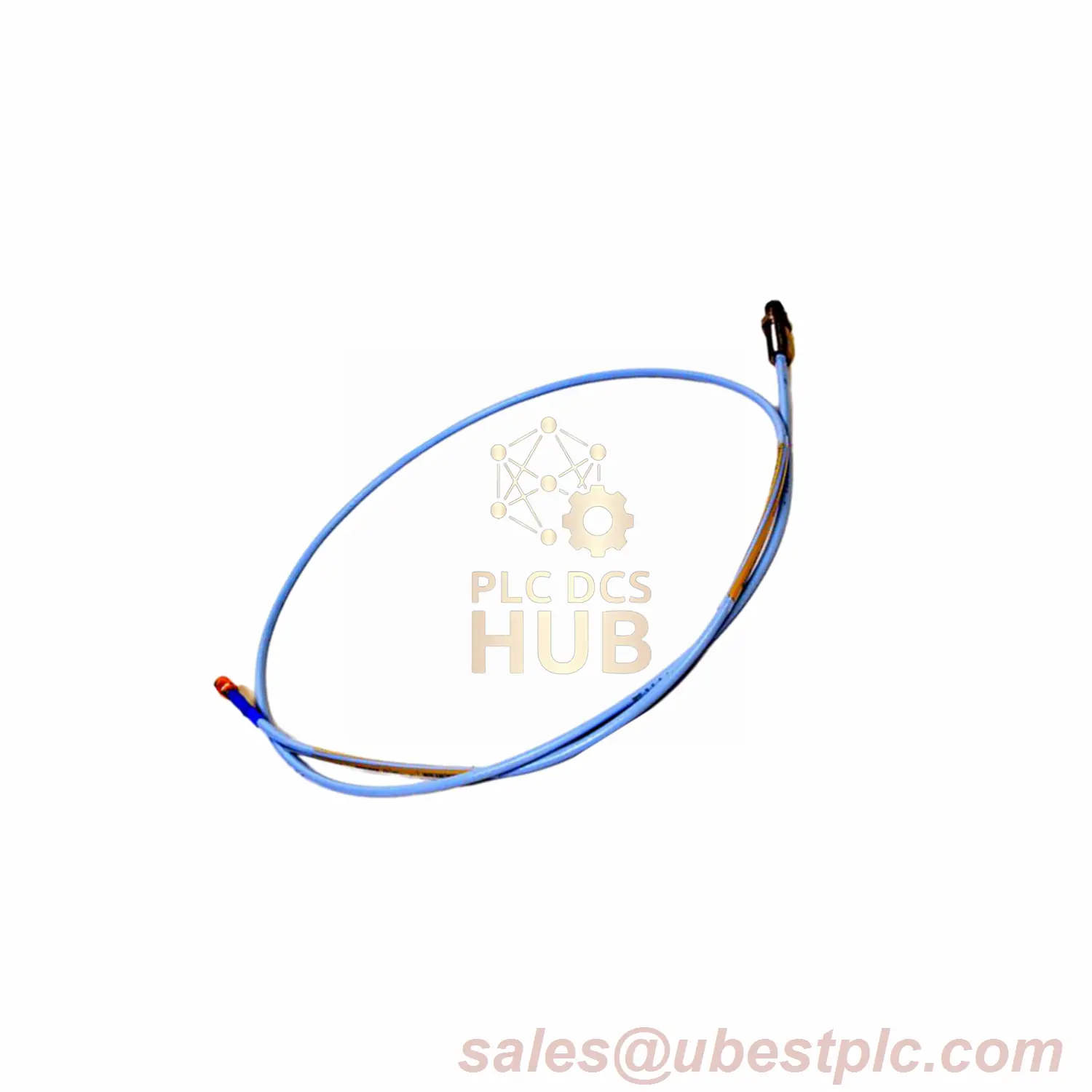

Bently Nevada 3300 XL Compact Proximity Probe (330103-00-04-05-02-00)
330103-00-04-05-02-00: Short-cable configuration with 40mm case and 0.5m standard cable, optimized for space-constrained installations.
⫸ Model Suffix Breakdown
00-04-05-02-00:
Unthreaded: 00 (0mm)
Case Length: 04 (40mm)
Cable: 05 (0.5m/1.6ft)
Connector: 02 (ClickLoc)
Approval: 00 (Standard)
Enhanced Technical Profile
Signal Integrity:
Capacitance Balance: <3pF differential
Noise Rejection: 60dB @ 50/60Hz
Phase Matching: ±2° across channels
Dynamic Response:
Settling Time: 15μs (0.1% accuracy)
Bandwidth (-3dB): 25kHz
Step Response Overshoot: <5%
Installation Specifications
Mounting Precision:
Perpendicularity Tolerance: ±0.5°
Surface Finish Requirement: 0.8μm Ra
Target Thickness: ≥3×probe diameter
Cable Management:
Minimum Bend Radius: 15mm
Pull Strength: 50N continuous
Twist Resistance: ±180°/m
Environmental Resilience
Operational Limits:
Altitude Rating: 5000m ASL
Ozone Resistance: 100ppm exposure
Fungus Proof: MIL-STD-810G Method 508.6
Seismic Performance:
• Operational Vibration: 15Grms (10-2000Hz)
• Survival Shock: 75g, 11ms half-sine
Industrial Implementation
Utilized in pharmaceutical mixing reactors for 0.01mm-resolution shaft runout monitoring, maintaining accuracy despite CIP/SIP cleaning cycles and 95% RH environments.
Technical Inquiry: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
