Product Summary

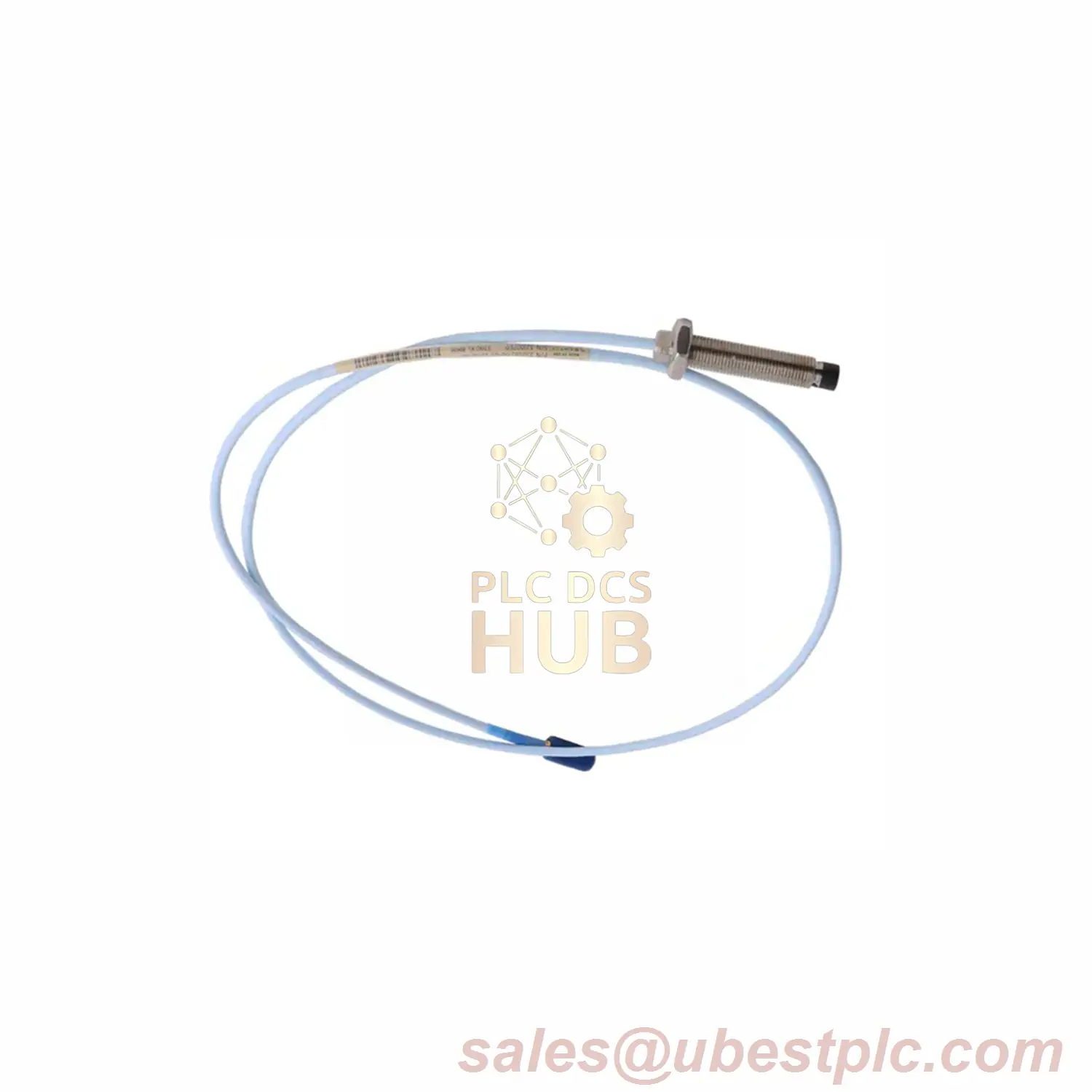

The Bently Nevada 3300 XL 8mm Micro-Probe (Model: 330103-00-04-15-02-00) features a 40mm minimized profile and 1.5m flexible cable, designed for space-constrained installations. With full M10x1 threading and ClickLoc® Gen2 connectivity, it delivers -9Vdc gap accuracy in compact machinery.
Technical Specifications for 330103-00-04-15-02-00
- Configuration Code: 00-04-15-02-00
00: 0mm Unthreaded Segment
04: 40mm Housing Length
15: 4.9ft Cable
02: ClickLoc® No-Armor
00: General Purpose
- Dynamic Response: 0-25kHz (±5%)
- Chemical Resistance: IP69K-rated against oils/alkalis
- Hysteresis: <0.5% FS over temperature cycles
- Cable Drag: <0.3N/m in conduit routing
Key Performance Data
- Null Voltage Stability: ±0.25Vdc @ -9Vdc setting
- Radial Tolerance: 0.8mm side-load capability
- Thermal Drift: 0.02%/°C from -20°C to +100°C
Installation Requirements
- Use PUR-jacketed cables for chemical washdown areas
- Maintain 2x diameter clearance from ferrous surfaces
- Ground through connector shell per EN 61340-5-1
Compliance
- ISO 14644-1 Class 7 cleanroom compatible
- 21 CFR Part 11 data integrity compliant
Industry Applications
- Water Treatment: Centrifugal pump seal face monitoring
- Plastics Manufacturing: Injection molding screw position tracking
- Research Facilities: Cryogenic bearing monitoring (-196°C LN2 environments)
Technical Assistance: For cryogenic performance reports or cleanroom validation protocols, email sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
