Description

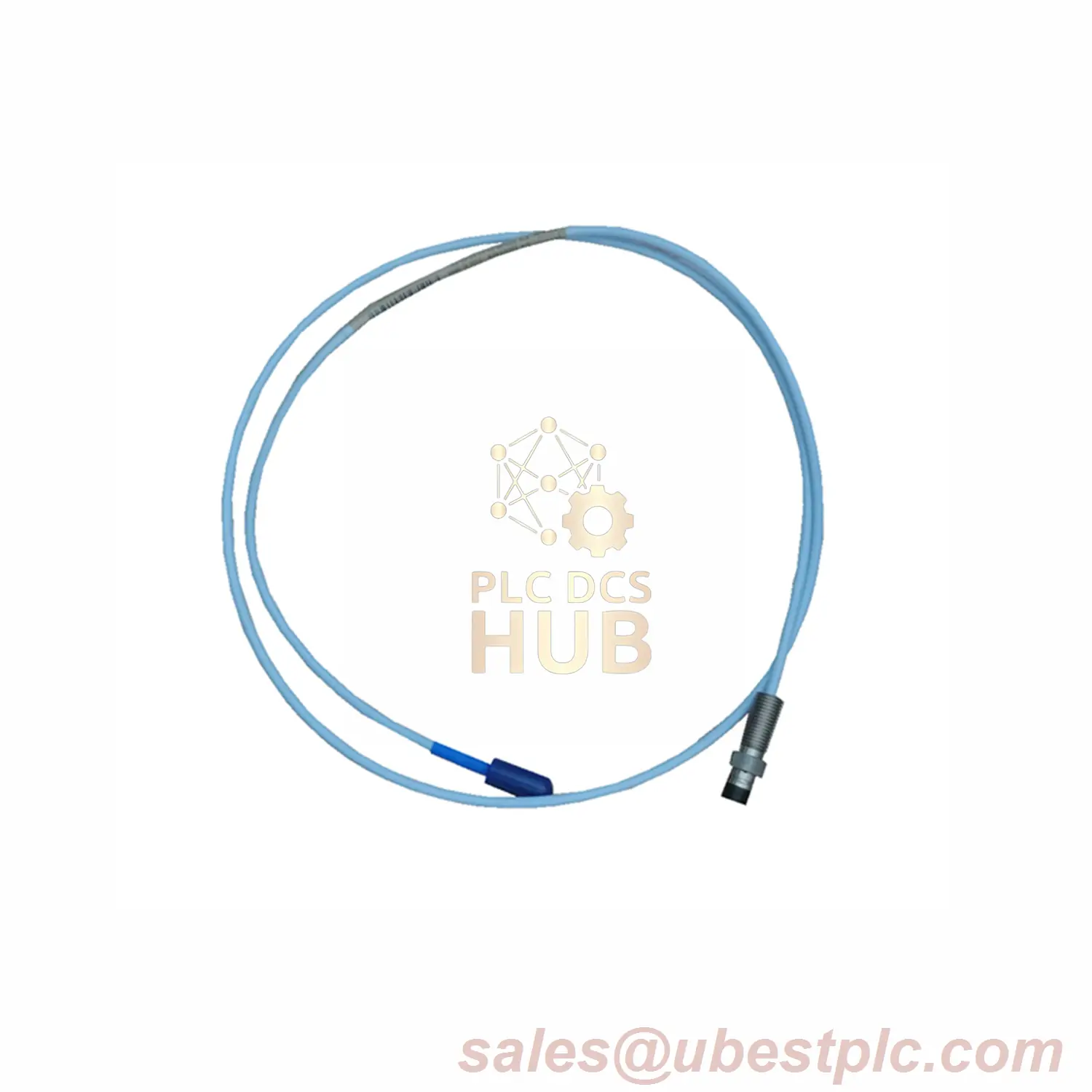

Bently Nevada 3300 XL 8 mm Proximity Probe
High-precision 8 mm proximity probe (Model Number: 330103-00-06-10-02-00) designed for industrial vibration monitoring in demanding environments. Features a robust stainless steel case, PPS probe tip, and Viton® O-ring seal for reliable performance under extreme conditions.
Technical Data
- Brand: Bently Nevada
- Model: 3300 XL 8 mm Proximity Probe
- 330103-00-06-10-02-00 Suffix: 00-06-10-02-00 (Unthreaded length: 00mm | Case length: 60mm | Cable: 1.0m | Connector: ClickLoc)
- Measurement Range: 2 mm (80 mils) linear range from 0.25 mm to 2.3 mm
- Output Signal: -1 Vdc to -17 Vdc
- Accuracy: Probe resistance 7.59Ω ±0.50Ω
- Temperature Range: -52°C to +177°C (Standard) / +218°C (Extended tip)
- Cable: 1.0m standard cable with ClickLoc connector (Max 305m extension)
- Thread: M10x1 (15mm max engagement)
Installation & Compatibility
Recommended Gap: 1.27 mm (50 mils) at -9 Vdc. Compatible with 3300 XL Proximitor Sensors. Requires shielded triad cable (16-24 AWG).
Certifications
- ATEX/IECEx: AEx/Ex ia IIC T1-T5 (Zone 0) | AEx/Ex nA IIC T1-T5 (Zone 2)
- Class I/II/III Groups A-G compliant
Applications
Used in gas turbines, centrifugal compressors, and power generation equipment for vibration monitoring and predictive maintenance.
Contact: sales@ubestplc.com for pressure seal testing or custom requirements.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
