Description

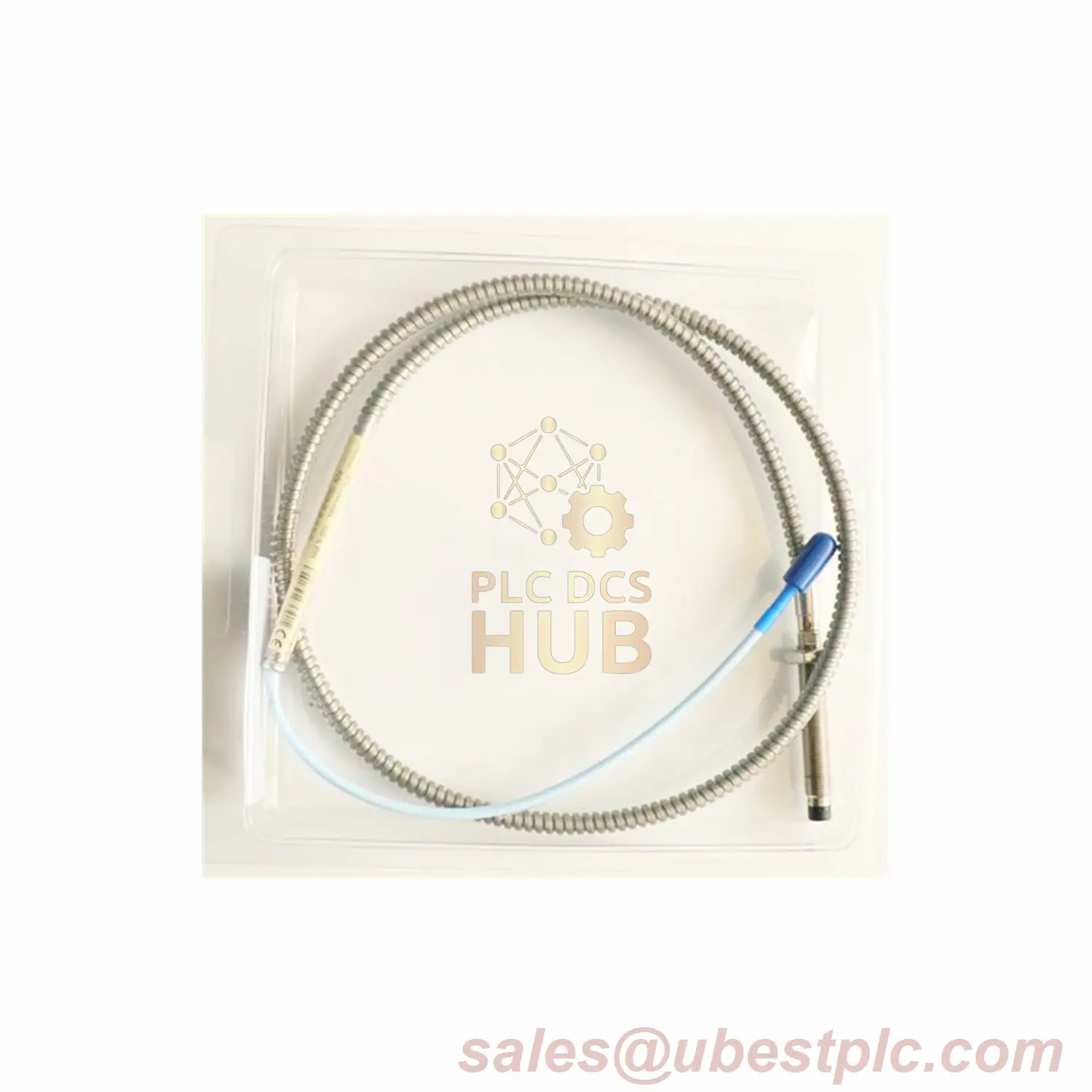

Bently Nevada 3300 XL 8 mm Proximity Probe
Product Description
The Bently Nevada 3300 XL 8 mm Proximity Probe features a 130mm case length and ClickLoc connector, optimized for deep-mount applications in heavy machinery. With a 0.5-meter cable and Viton® O-ring seal, 330103-00-13-05-02-00 provides stable performance in high-temperature environments while maintaining compliance with industrial safety standards.
Technical Data
- Brand: Bently Nevada
- Model: 330103-00-13-05-02-00
- 00: Unthreaded Length (0 mm)
- 13: Case Length (130 mm)
- 05: Cable Length (0.5 meter / 1.6 ft)
- 02: ClickLoc Connector (Standard Cable)
- 00: Agency Approval Not Required
- Sensing Range: 0.25–2.3 mm (10–90 mils)
- Resistance: 7.45 Ω ±0.50 Ω at 0.5m
- Output: Linear voltage (-1 to -17 Vdc)
- Pressure Rating: Viton® O-ring (custom testing available)
- Weight: 323 g/m (11.4 oz per meter)
Installation & Compliance
- Thread: M10x1 (max 15mm engagement)
- Cable: 3-conductor shielded triad (16-24 AWG)
- Certifications:
- Class I, Zone 2: AEx/Ex ec IIC T5-T1 Gc
- ATEX/IECEx compatible with isolators (Drawing 140979)
Industrial Applications
- Rotary kiln alignment monitoring in cement production
- Fan blade vibration analysis in HVAC systems
- Conveyor roller bearing health checks in mining operations
Contact: Email sales@ubestplc.com for installation diagrams or custom configurations.
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
