Description
Overview

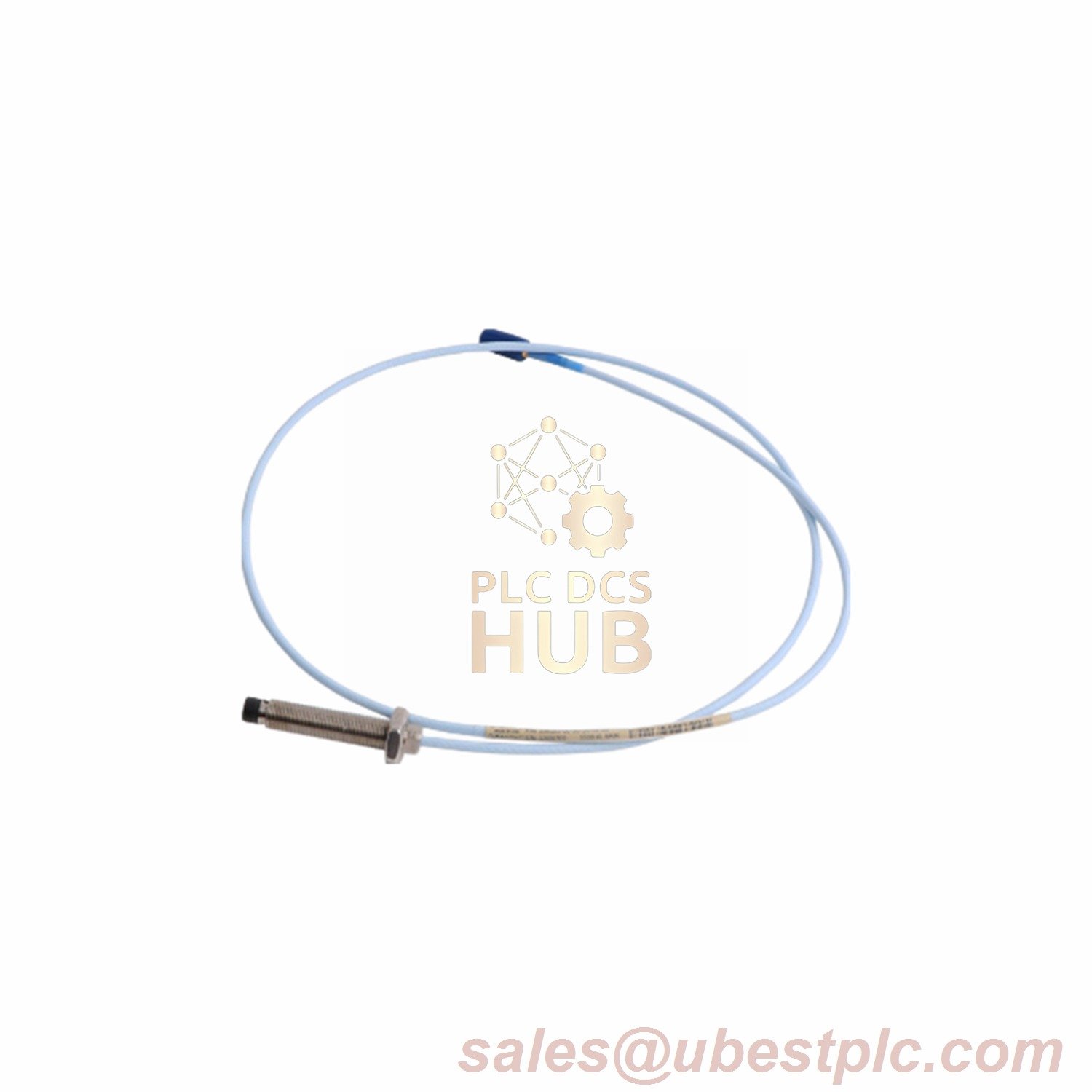

The Bently Nevada 330103-00-13-10-12-05 proximity probe delivers precise radial vibration monitoring for industrial machinery in hazardous environments. Featuring a compact 130 mm stainless steel case and 1.0 m cable with a ClickLoc™ connector, this probe operates reliably in extreme temperatures (-52°C to +218°C). Certified for CSA, ATEX, and IECEx standards, it ensures safety in Zone 0/1/2 areas while providing accurate gap voltage measurements for turbines, compressors, and pumps.
Technical Specifications
| Category | Details |
|---|---|
| Brand | Bently Nevada |
| Model | 330103-00-13-10-12-05 |
| Suffix Decoding | 00: 0 mm unthreaded length 13: 130 mm case length 10: 1.0 m cable 12: Miniature coaxial ClickLoc connector, FluidLoc cable 05: CSA/ATEX/IECEx certifications |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Case Material | AISI 303/304 Stainless Steel |
| Thread Engagement | M10×1 (max 15 mm) |
| Linear Range | 0.25–2.3 mm (10–90 mils) / -1 to -17 Vdc |
| DC Resistance (RPROBE) | 7.59 Ω ±0.5 @1.0 m |
| Temperature Range | Standard: -52°C to +177°C Extended: -52°C to +218°C (tip), -51°C to +260°C (cable) |
| Humidity Tolerance | <3% ASF change @93% RH (IEC 68-2-3) |
| Compliance | CSA/ATEX/IECEx: Zone 0/1/2, Groups A-G, T1-T5 |
Contact Information
For custom pressure testing or hazardous area certifications:
Email: sales@ubestplc.com
