Description
Product Overview

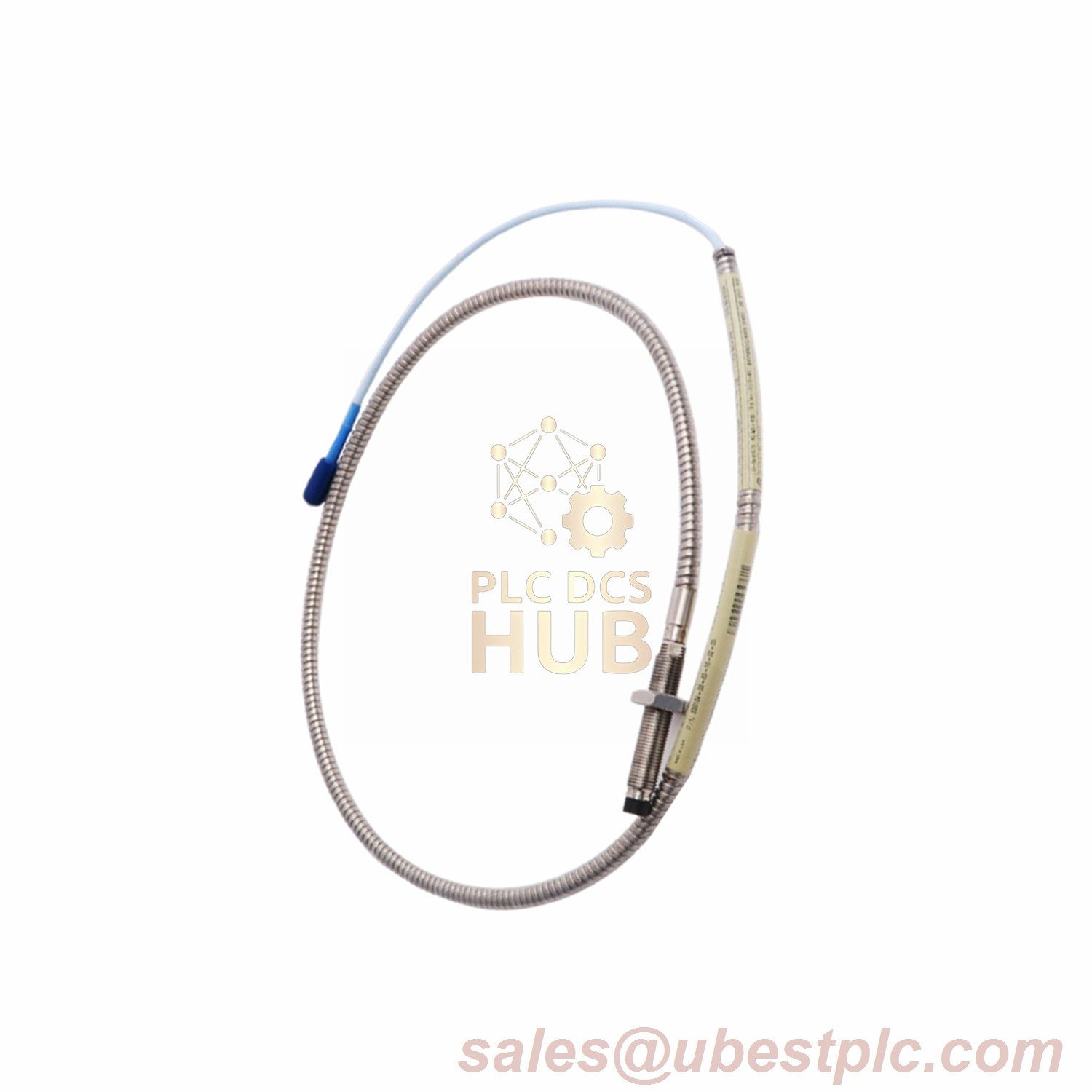

The Bently Nevada 330103-06-25-10-02-00 is an industrial-grade 8mm proximity probe with M10x1 threading and 1.0m armored cable. Designed for harsh environments, it operates across -52°C to +260°C, featuring a Viton® O-ring seal and PPS probe tip for reliable machinery monitoring in demanding industrial applications.
Technical Specifications
Manufacturer/Model: Bently Nevada 330103-06-25-10-02-00
Configuration Code:
– 06: 60mm unthreaded length
– 25: 250mm (9.8″) case length
– 10: 1.0m (3.3ft) cable length
– 02: ClickLoc connector + standard cable
– 00: No certifications
Core Performance:
DC Resistance: 7.59Ω ±0.5 @ 1.0m
Linear Range: 0.25-2.3mm (±0.025mm)
Gap Setting: 1.27mm (50 mils) @ -9VDC
Temperature Limits:
– Probe Tip: -52°C to +218°C
– Cable Assembly: -51°C to +260°C
FAQ
Q: Is this probe explosion-proof certified?
A: No – Agency Approval Option 00 (non-hazardous areas only)
Q: Compatible with Bently Nevada monitors?
A: Yes – Requires 3300 XL Proximitor (≤305m cable runs)
