Description

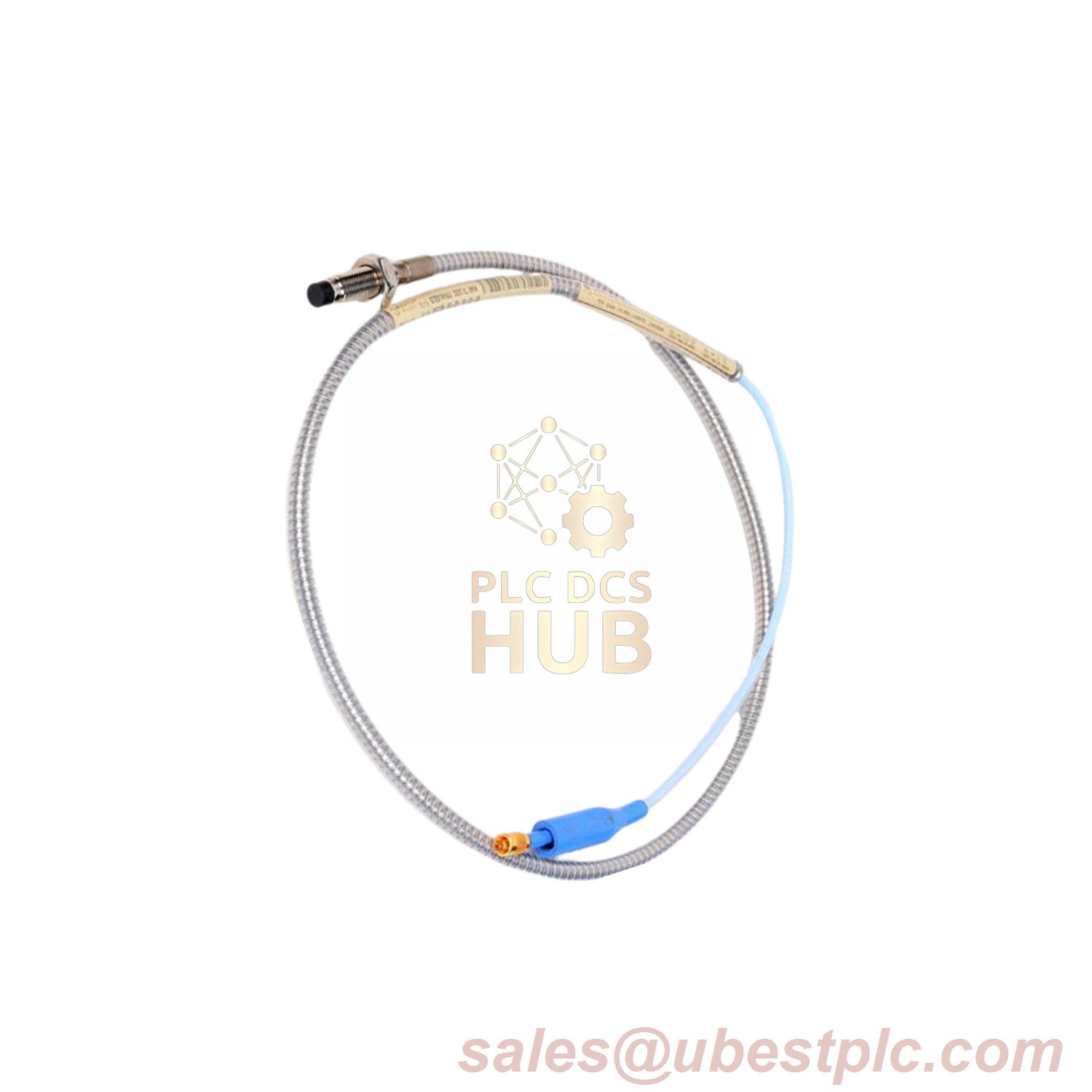

The 330104-00-05-50-11-00 is a long-range industrial proximity probe designed for vibration monitoring in fluid-exposed environments. Featuring a 5.0-meter FluidLoc cable, M10 x 1 thread, and 50 mm case length, it is engineered for exclusive compatibility with 5-meter Proximitor sensors. With Viton® sealing and armored construction, it delivers reliable performance in demanding non-hazardous settings.
Technical Specifications
| Model | 330104-00-05-50-11-00 |
|---|---|
| Suffix Codes | 00: 0 mm unthreaded length 05: 50 mm case length 50: 5.0 m armored cable 11: ClickLoc™ connector + FluidLoc cable 00: No certifications required |
| Electrical | Power: -17.5 Vdc to -26 Vdc Output Resistance: 50 Ω Probe Resistance (5.0 m): 8.73 Ω ±0.50 |
| Material | PPS probe tip | AISI 303/304 stainless steel case |
| Sealing | Viton® O-ring (pressure-rated) |
Installation Notes
- Critical Compatibility: Use exclusively with 5-meter Proximitor sensors
- Voltage Stability: Maintain ≥-23.5 Vdc to preserve 0.25–2.3 mm linear range
- Cable Protection: Secure FluidLoc connectors to prevent fluid ingress
- Gap Setting: Set to 1.27 mm (50 mils) from target surface
