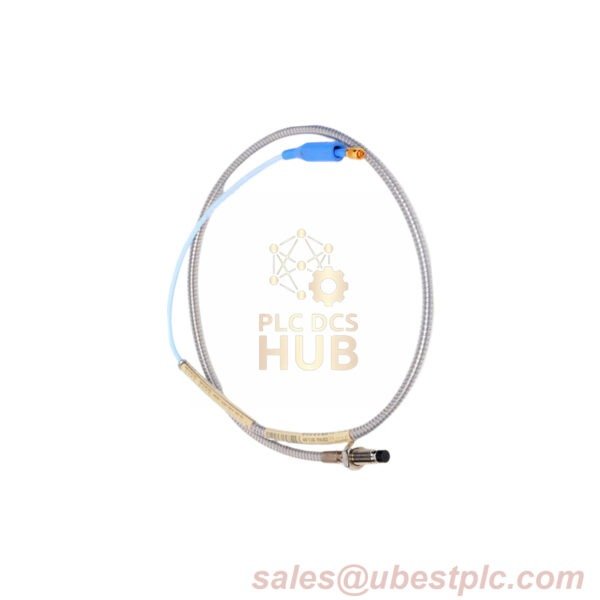

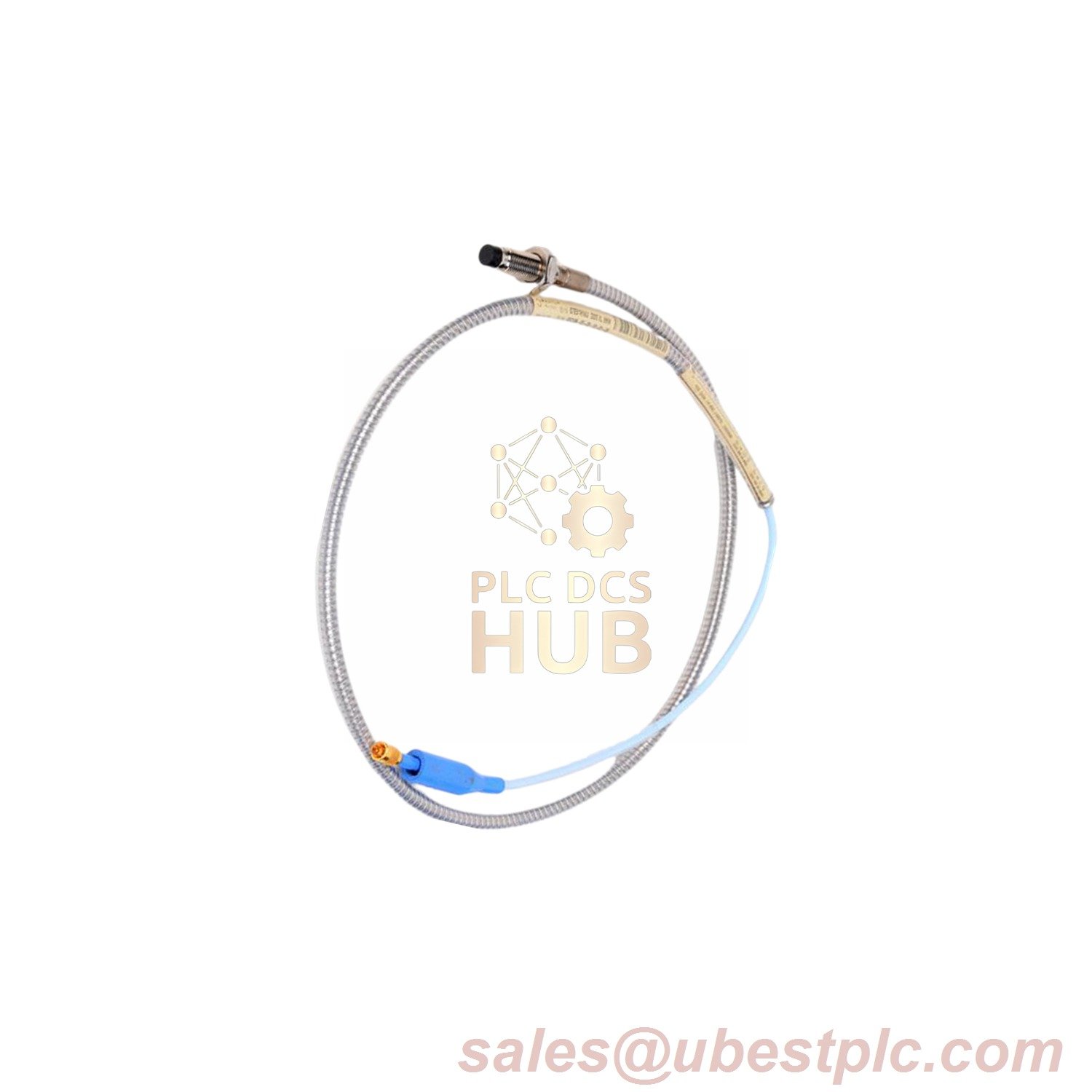

The Bently Nevada 330104-00-06-20-01-00 Proximity Probe is a compact industrial sensor optimized for precision vibration monitoring in standard environments. Featuring a 60 mm (2.36″) stainless steel case, 2.0 m (6.6 ft) armored cable, and Miniature ClickLoc™ connector with protector, this probe delivers reliable performance without certification requirements. Designed with an M10x1 armored thread and Viton® O-ring seal, it excels in space-constrained installations.
Technical Specifications
- Model: 330104-00-06-20-01-00
- Configuration:
- Unthreaded Length: 0 mm (fully threaded)
- Case Length: 60 mm (2.36″)
- Cable Length: 2.0 m (6.6 ft)
- Connector: Miniature ClickLoc™ with Protector
- Certifications: Not Required
- Electrical:
- Power Range: -17.5 Vdc to -26 Vdc
- Output Resistance: 50 Ω
- DC Resistance (2.0m): 7.88 Ω ±0.50
- Mechanical:
- Tip Material: Polyphenylene Sulfide (PPS)
- Case Material: AISI 303/304 Stainless Steel
- Seal: Viton® O-ring (pressure-rated)
Why Choose This Model?
This probe combines Bently Nevada’s precision with a compact footprint. The 60 mm threaded case and 2.0 m cable make it ideal for installations where space and reach are critical. With no certification overhead, it’s a cost-effective solution for standard industrial environments requiring reliable vibration monitoring.
