Description

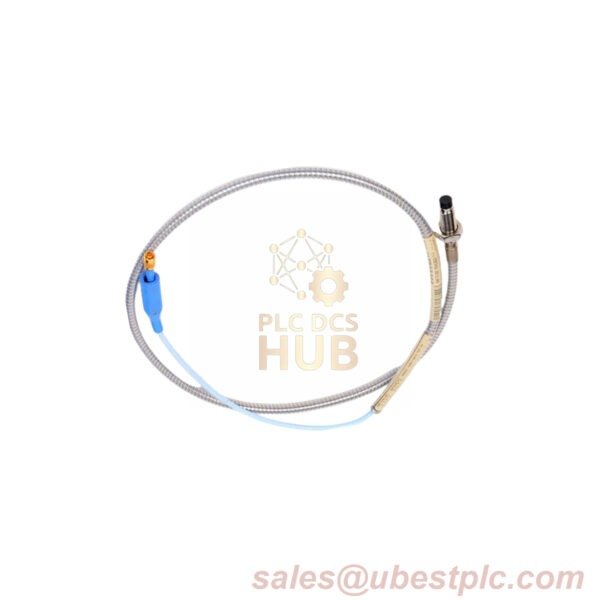

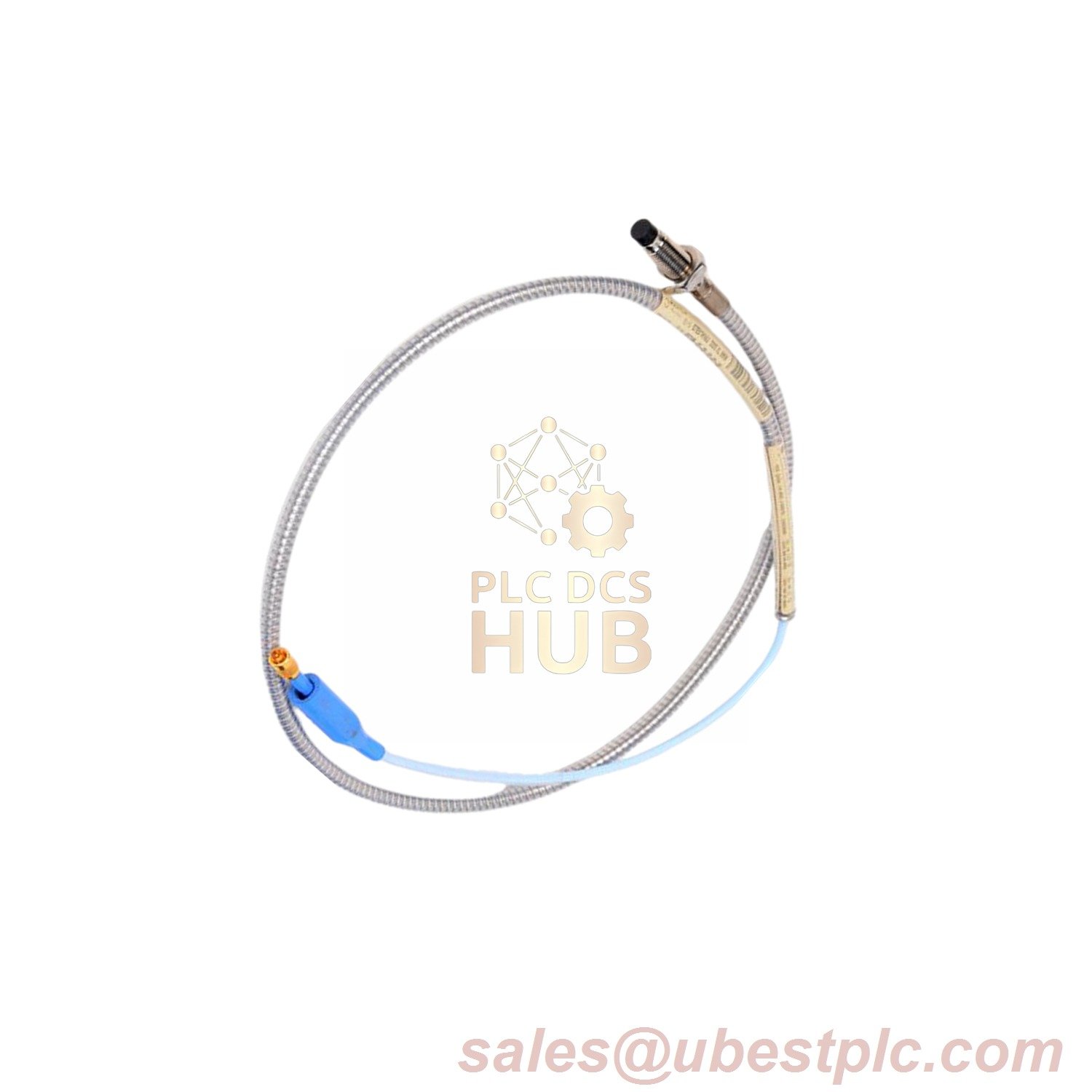

Bently Nevada 3300 XL 8 mm Proximity Probe
Made in the U.S.A. 330104-00-09-10-02-00 combines a 90mm stainless steel case, 1.0-meter armored cable, and Viton® O-ring sealing for reliable vibration monitoring in non-hazardous environments.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Code | 330104-00-09-10-02-00 |
| Suffix Codes | 00: 0 mm Unthreaded 09: 90 mm Case Length 10: 1.0 m Cable 02: ClickLoc™ Connector 00: No Certifications |
| Electrical | Power Input: -17.5 Vdc to -26 Vdc Output Resistance: 50 Ω DC Resistance (1.0 m): 7.59 Ω ±0.50 |
| Mechanical | Tip Material: Polyphenylene Sulfide (PPS) Case: AISI 303/304 Stainless Steel Thread: M10x1 with Armor Seal: Viton® O-ring |
| Environmental | Validated Range: +18°C to +27°C Target: AISI 4140 Steel (1.27 mm gap) Max Altitude: 2000 meters |
Contact: For COO requests or technical support, email sales@ubestplc.com.
