Description

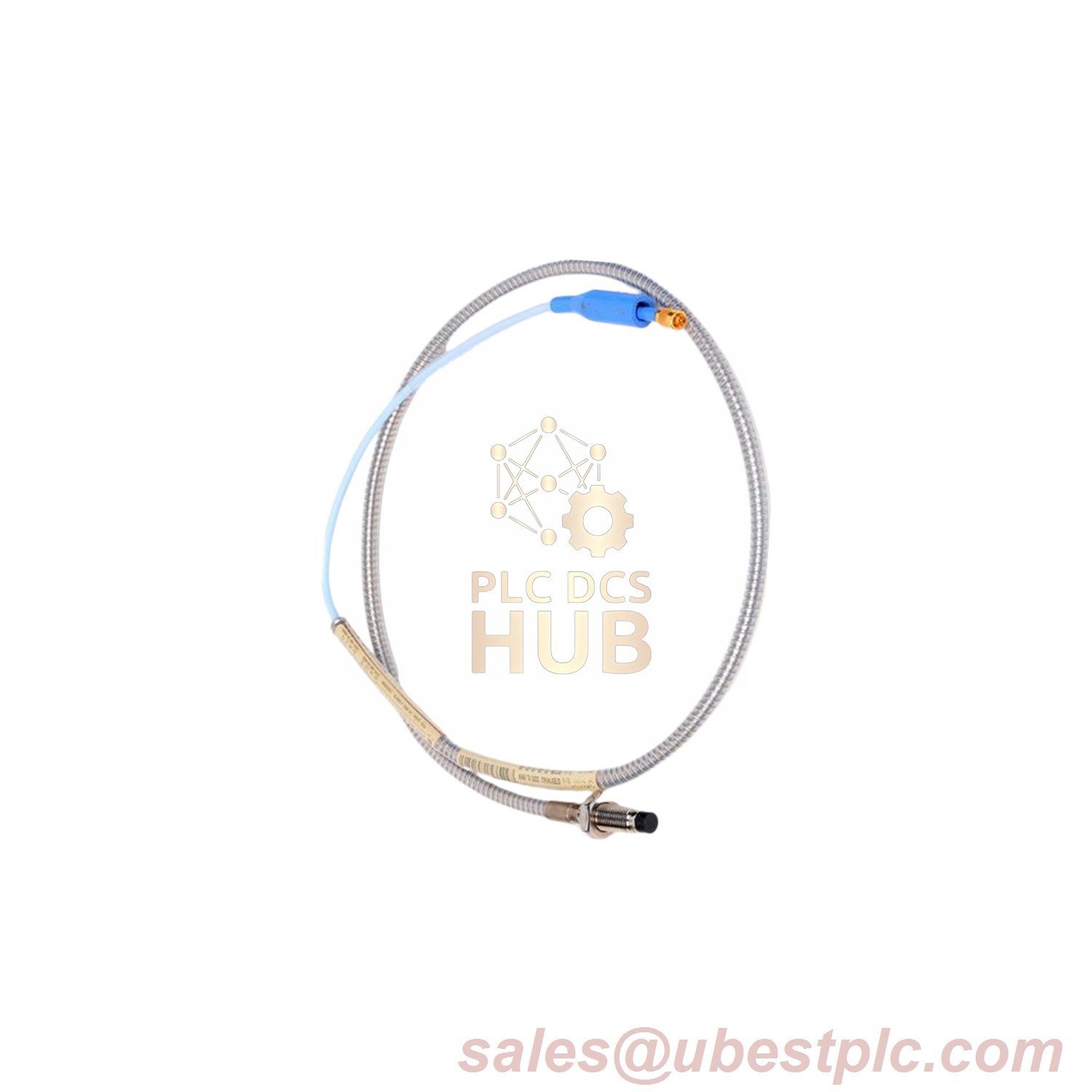

The 330104-00-15-05-02-00 is a heavy-duty proximity probe designed for industrial vibration monitoring in non-hazardous environments. Featuring a 150 mm case length, 0.5 m armored cable, and M10 x 1 thread, it provides reliable performance in demanding applications. Engineered with Viton® sealing and chemical-resistant materials, it excels in harsh operating conditions.
Key Features
- Extended Case Design: 150 mm (5.9 in) length for deep machinery integration
- Space-Efficient Armor: 0.5 m (1.6 ft) stainless steel armored cable
- Global Compatibility: M10 x 1 metric threading for ISO-standard equipment
- Harsh Environment Ready: PPS tip + Viton® O-ring withstand chemicals and oils
- Precision Measurement: 7.45 Ω ±0.50 resistance ensures ±1 mil accuracy
Technical Specifications
| Model | 330104-00-15-05-02-00 |
|---|---|
| Suffix Codes | 00: 0 mm unthreaded length 15: 150 mm case length 05: 0.5 m total cable length 02: Miniature ClickLoc™ connector 00: No agency certifications |
| Electrical | Power: -17.5 Vdc to -26 Vdc Output Resistance: 50 Ω Probe Resistance (0.5 m): 7.45 Ω ±0.50 |
| Material | PPS probe tip | AISI 303/304 stainless steel case |
| Pressure Seal | Viton® O-ring (rated for pressure differentials) |
Installation Notes
- Voltage Requirement: Maintain ≥-23.5 Vdc for full linear range (0.25-2.3 mm)
- Optimal Gap: 1.27 mm (50 mils) from target surface
- Cable Durability: Armor withstands 330 N (75 lbf) tensile load
