Description

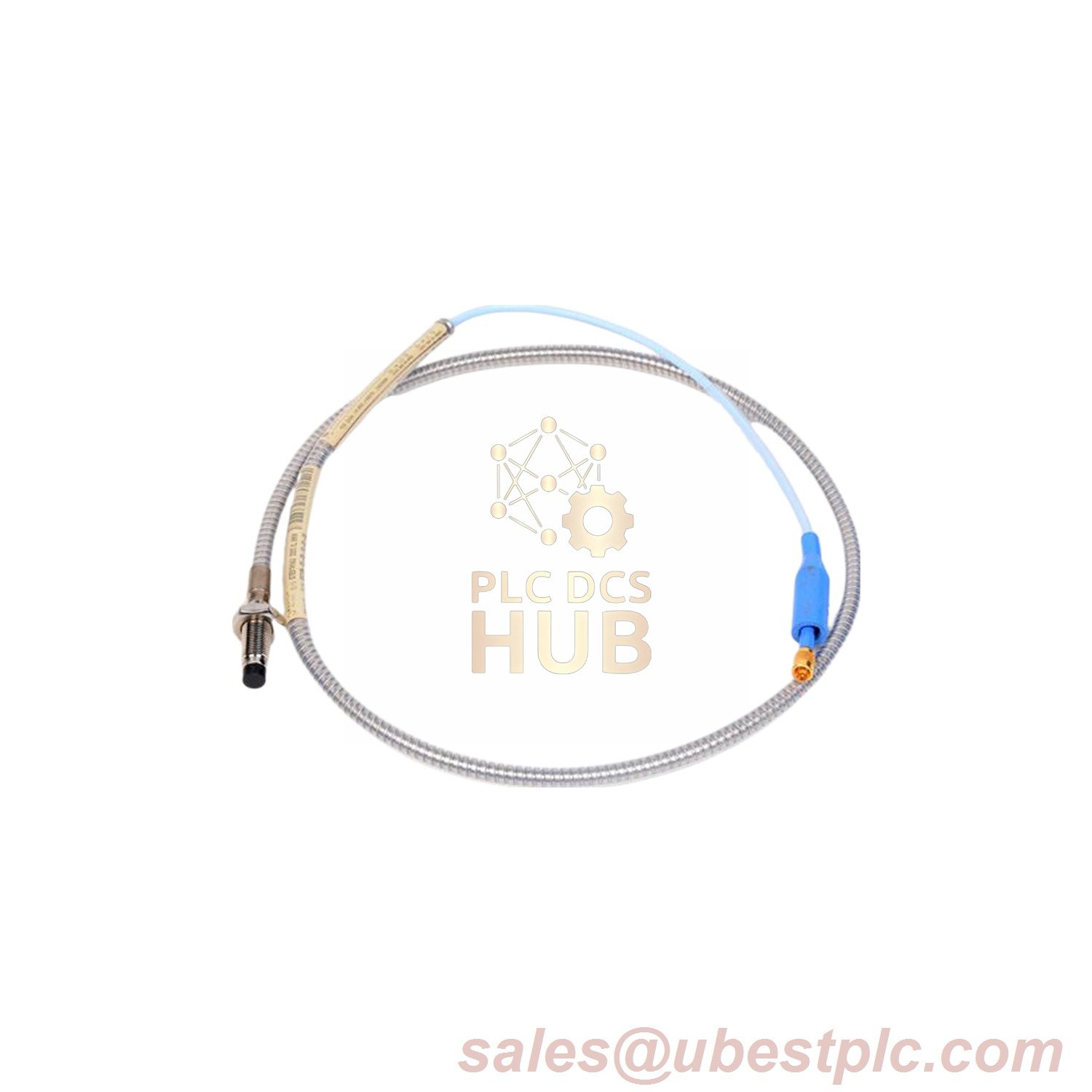

Bently Nevada 3300 XL 8 mm Proximity Probe
Made in the U.S.A. Designed for integration with 5-meter Proximitor sensors, 330104-01-05-50-01-00 features a 5.0-meter armored cable, compact 50 mm case, and Viton® O-ring pressure sealing for industrial reliability.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Code | 330104-01-05-50-01-00 |
| Suffix Codes | 01: 10 mm Unthreaded 05: 50 mm Case Length 50: 5.0 m Cable 01: ClickLoc™ Connector with Protector 00: No Certifications Required |
| Electrical | Power Input: -17.5 Vdc to -26 Vdc Output Resistance: 50 Ω DC Resistance (5.0 m): 8.73 Ω ±0.50 |
| Mechanical | Tip Material: PPS Polymer Case: AISI 303/304 Stainless Steel Thread: M10x1 with Armor Seal: Viton® O-ring |
| Environmental | Validated Range: +18°C to +27°C Target: AISI 4140 Steel (1.27 mm gap) Compatibility: 5-meter Proximitor Sensors Only |
Contact: For COO requests or technical support, email sales@ubestplc.com.
