Description
Description

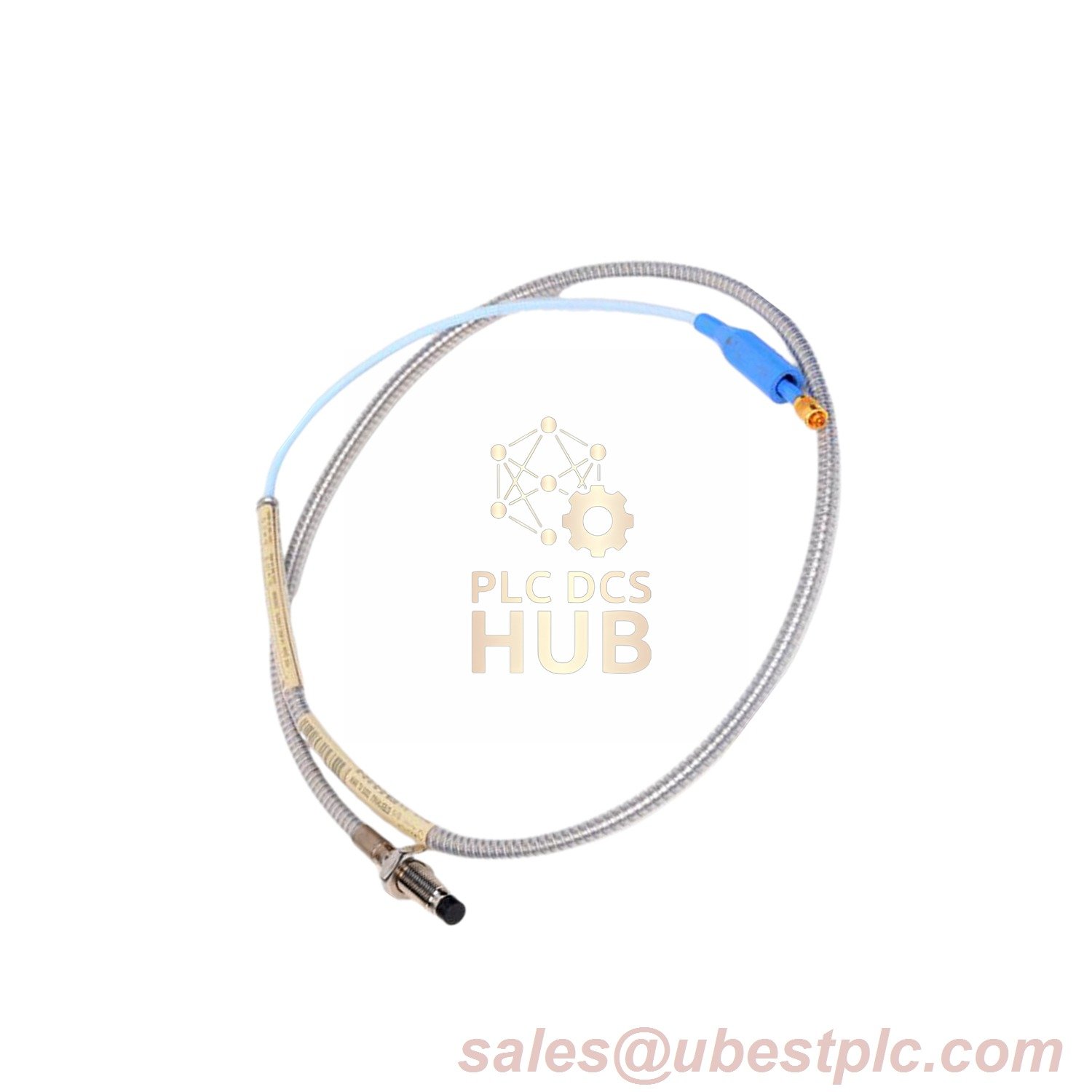

The Bently Nevada 330104-00-10-10-01-00 Proximity Probe is a rugged industrial sensor designed for precision vibration monitoring in standard environments. Featuring a 100 mm (3.94″) stainless steel case, 1.0 m (3.3 ft) armored cable, and Miniature ClickLoc™ connector with protector, this probe delivers reliable performance without certification overhead. Built with an M10x1 armored thread and Viton® O-ring seal, it ensures durability in demanding industrial applications.
Technical Specifications
- Model: 330104-00-10-10-01-00
- Configuration:
- Unthreaded Length: 0 mm (fully threaded)
- Case Length: 100 mm (3.94″)
- Total Cable Length: 1.0 m (3.3 ft)
- Connector: Miniature ClickLoc™ with Protector
- Certifications: Not Required
- Electrical:
- Power Supply: -17.5 Vdc to -26 Vdc
- Output Resistance: 50 Ω
- DC Resistance (1.0m): 7.59 Ω ±0.50
- Mechanical:
- Tip Material: Polyphenylene Sulfide (PPS)
- Case Material: AISI 303/304 Stainless Steel
- Seal: Viton® O-ring (pressure-rated)
Why Choose This Model?
This probe offers industrial reliability for non-hazardous environments. The 100 mm threaded case and 1.0 m armored cable provide flexibility for standard installations, while the ClickLoc™ protector ensures connector longevity. Ideal for facilities prioritizing cost efficiency without compromising on Bently Nevada’s proven durability.
