Description

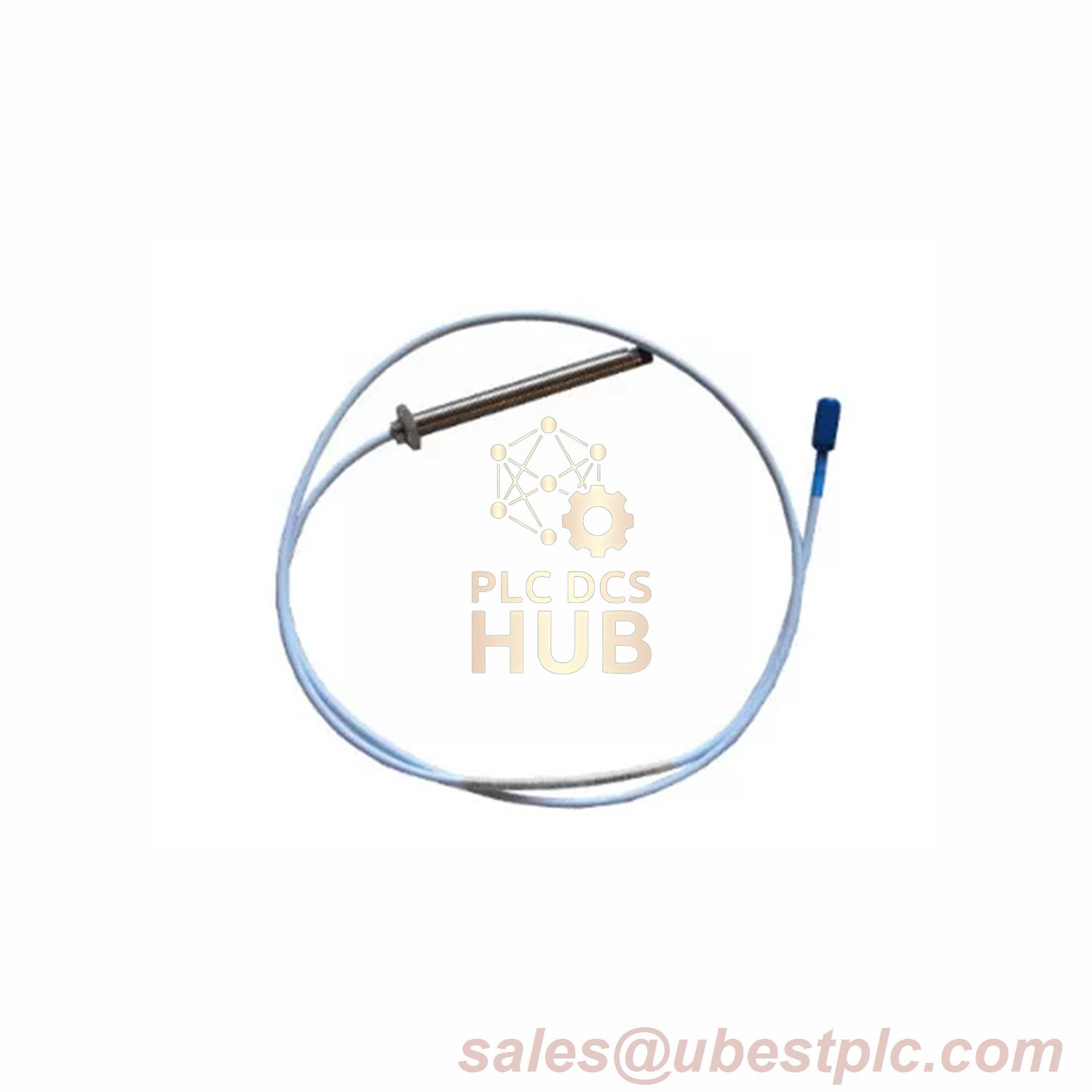

The Bently Nevada 3300 XL 8 mm Probe with Armor (P/N: 330141-08-30-02-00) is a high-performance industrial sensor designed for durability and precision in machinery monitoring. Featuring patented TipLoc and CableLoc technologies, this probe ensures a robust bond between the probe tip/body and delivers 330 N (75 lbf) pull strength for secure cable attachment. The 8 mm diameter enhances ruggedness, providing thicker encapsulation of the probe coil in PPS plastic and a stainless steel case for superior physical resistance. Optional FluidLoc cable prevents fluid ingress, ideal for oil-rich environments.
Technical Data
| Parameter | Specification |
|---|---|
| Brand | Bently Nevada |
| Model | 330141-08-30-02-00 |
| Suffix Details | 08: 0.8″ case length; 30: 3.0 m cable; 02: Miniature ClickLoc; 00: No agency approval |
| Probe Type | 3300 XL 8 mm Proximity Probe with Armor |
| Nominal DC Resistance | 8.17 Ω ± 0.50 (3.0 m length) |
| Incremental Scale Factor | 7.87 V/mm ±5% (5/1 m); ±6.5% (9 m/ETR) |
| Deviation (DSL) | <±0.025 mm (5/1 m); <±0.038 mm (9 m/ETR) |
| Materials | Tip: PPS Plastic; Case: AISI 303/304 SST; Seal: Viton® O-ring |
| Weight | 323 g/m (11.4 oz) |
| Temperature Range | -52°C to +177°C (Standard); +218°C tip/+260°C cable (ETR) |
| Pressure Resistance | Seals differential pressure (not pre-tested) |
| Humidity Tolerance | <3% ASF change (93% humidity, 56 days) |
