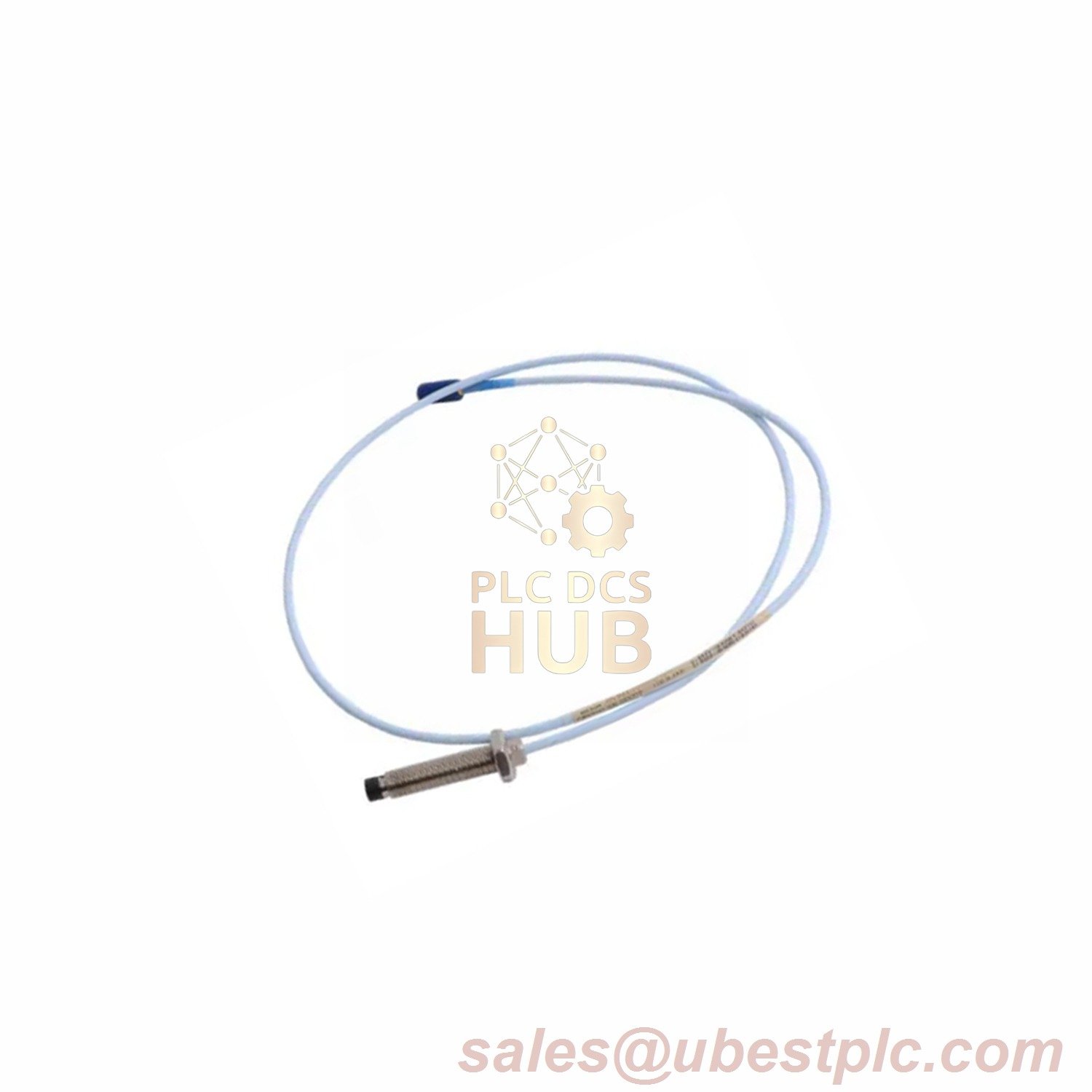

Bently Nevada – 330141-08-30-01-05 3300 XL 8 mm Proximity Probes

Description

Description

The Bently Nevada 3300 XL 8 mm Probe (Product No. 330141-08-30-01-05) is a high-performance eddy current sensor designed for industrial machinery monitoring. Featuring an 8 mm ruggedized probe body with PPS plastic tip encapsulation, this probe delivers enhanced durability and resistance to physical stress. Key innovations include TipLoc™ molding for superior tip-to-body bonding and CableLoc™ technology ensuring 75 lbf pull strength for secure cable attachment. Optional FluidLoc™ cable prevents fluid ingress, ideal for oil-lubricated environments. Constructed with AISI 303/304 stainless steel and rated for -52°C to +177°C operation, this probe excels in harsh conditions.

Technical Data

• Brand: Bently Nevada
• Model: 3300 XL 8 mm Probe
• 330141-08-30-01-05 Suffix Details:
  • 08: 0.8-inch case length
  • 30: 3.0-meter total length
  • 01: Miniature coaxial ClickLoc® connector with protector
  • Agency Approval 05: CSA, ATEX, IECEx Approvals
• Nominal DC Resistance: 8.17 ± 0.5 Ω (3.0-meter length)
• Incremental Scale Factor (ISF):
  • 7.87 V/mm ±5% (5/1m systems)
  • 7.87 V/mm ±6.5% (9m/ETR systems)
• Deviation from Straight Line (DSL):
  • ±0.025 mm (5/1m systems)
  • ±0.038 mm (9m/ETR systems)
• Material: PPS probe tip, stainless steel case
• Weight: 323 g/m (11.4 oz)
• Humidity Tolerance: <3% ASF change at 93% RH (56 days)

Contact Information

For certification documents and technical support:
Email: sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
