Description

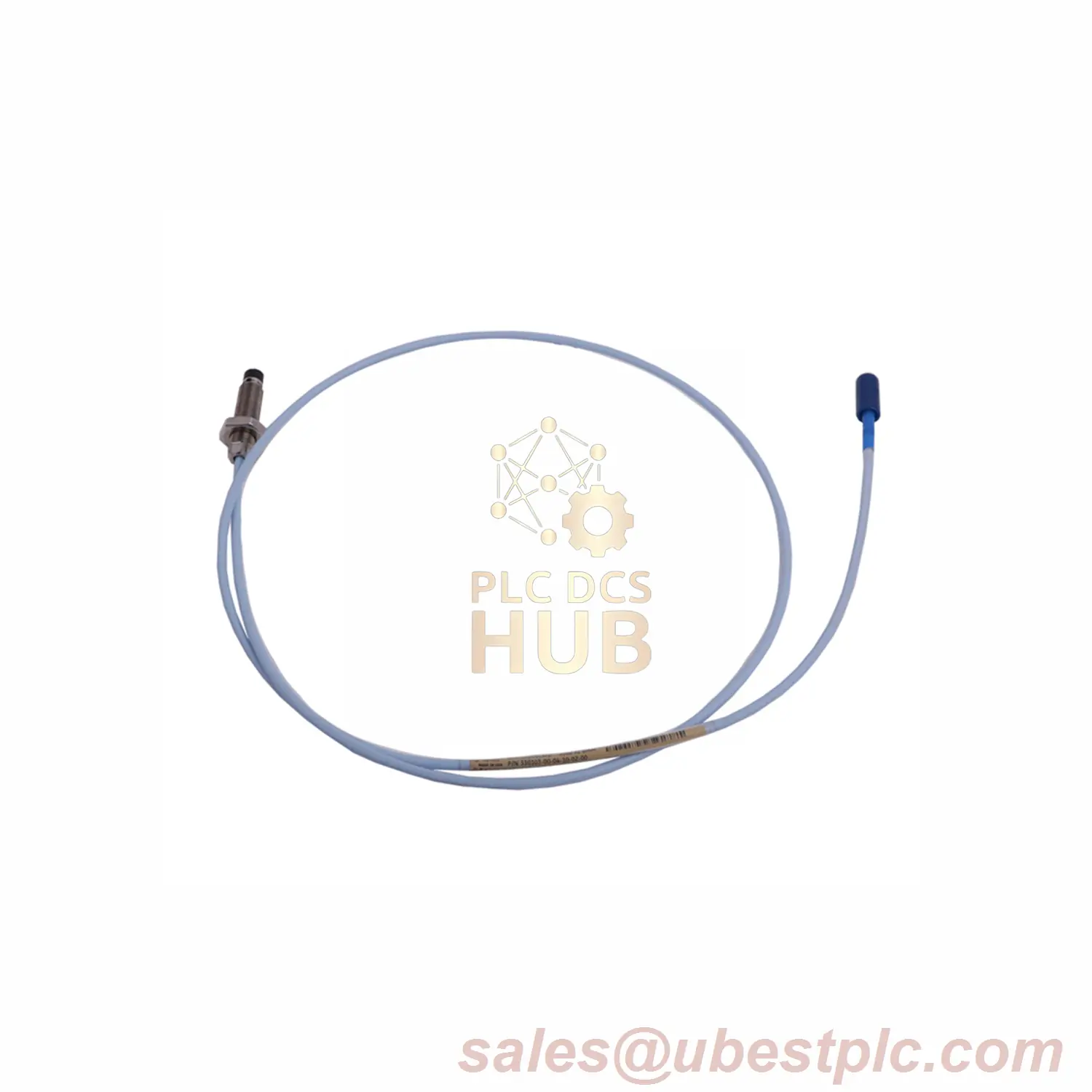

Bently Nevada Probe 330104-00-02-90-02-00
New 330104-00-02-90-02-00 | No Certifications | 12-Month Warranty
Part Number Details
00 = 0.0mm unthreaded / 02 = 2mm case / 90 = 9.0m cable (29.5 ft) / 02 = ClickLoc connector / 00 = no approvals needed.
Key Technical Data
Voltage: -17.5V to -26V DC / Resistance: 9.87Ω ±0.50 / Max current: 12mA / Pull strength: 75 lbs / Temp range: -55°C to +232°C.
Design & Materials
Armored M10 x 1 thread / 8mm PPS plastic tip / Stainless steel body (303/304) / Viton® O-ring seal / FEP-insulated cable.
Industrial Uses
• Chemical plant reactor monitoring
• Paper mill roller alignment checks
• Metal forging press safety systems
Safety & Installation
Works with 9m Proximitor only / Follow drawing 140979 / Max torque: 5 in-lb / No certifications required.
Contact: sales@ubestplc.com
