Description
Product Description

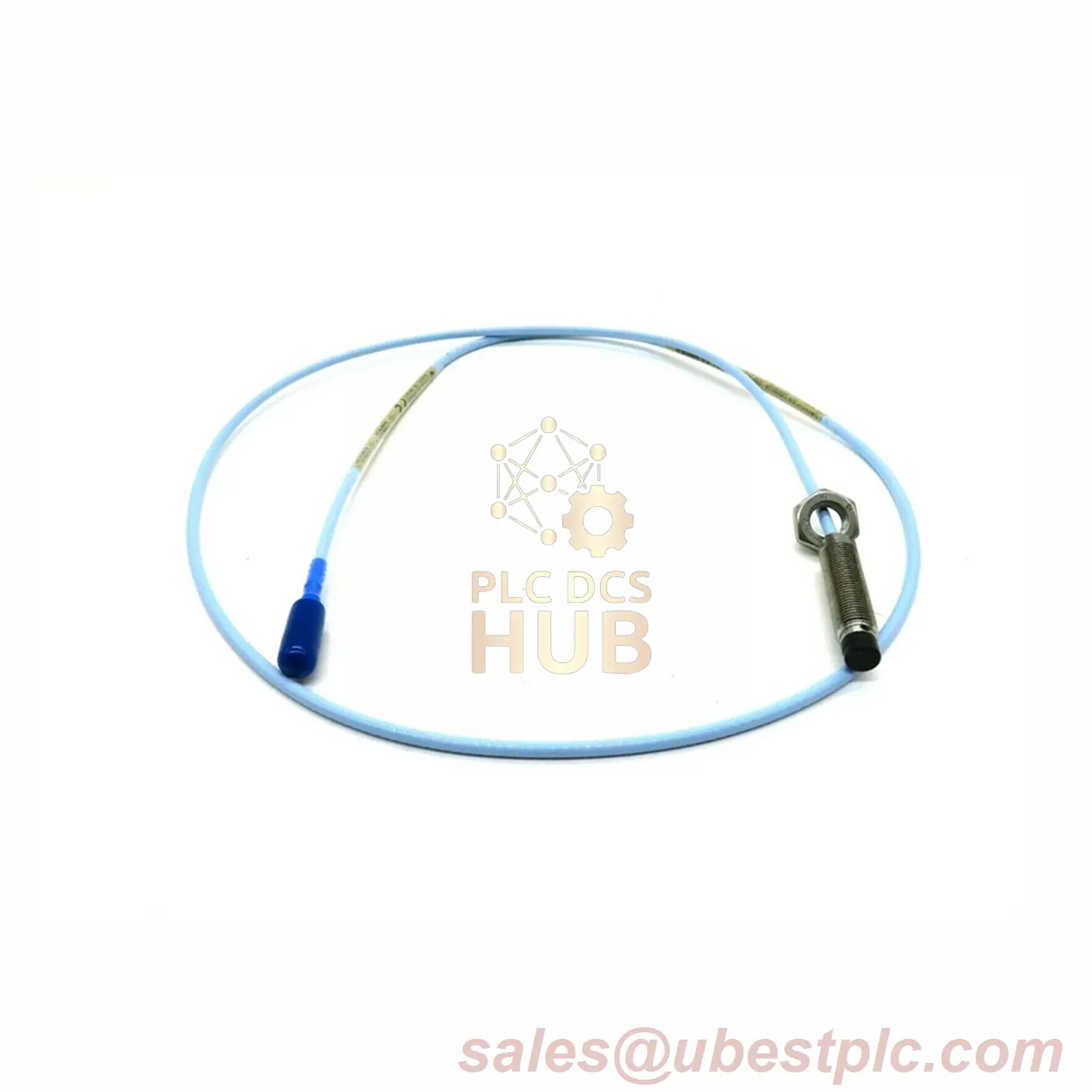

The Bently Nevada 330104-00-08-90-02-00 3300 XL 8 mm Proximity Probe is a high-precision sensor for measuring vibration and displacement without contact. It has a strong stainless steel case, a 9-meter armored cable, and a ClickLoc connector for easy installation.
Technical Data for 330104-00-08-90-02-00
- Thread: M10 x 1
- Unthreaded Length: 0 mm
- Case Length: 8 mm
- Total Length: 9.0 meters (29.5 feet)
- Connector: Miniature ClickLoc
- Cable: Standard armored
- Tip Material: Polyphenylene sulfide (PPS)
- Case Material: Stainless Steel (AISI 303/304)
- Voltage: -17.5 Vdc to -26 Vdc
- Output Resistance: 50 Ω
- DC Resistance: 9.87 ± 0.50 Ω
- Temperature: -55°C to +232°C
Installation Guide
- Install securely with the Proximitor sensor.
- Keep a 1.27 mm (50 mils) gap for accurate readings.
- Follow installation drawings for hazardous areas.
Certifications
- Class I, Zone 0: AEx/Ex ia IIC T5…T1 Ga
- Class I, Division 2: Groups A, B, C, D
- Class II, Groups E, F, G
- Class III
Package Includes
- 1 x 3300 XL 8 mm Proximity Probe
- 1 x Installation Guide
- 1 x Warranty Card
Warranty
12-month warranty covering defects.
Applications
- Vibration monitoring in turbines
- Measuring displacement in rotating machines
- Predictive maintenance in industries
