330141-08-20-01-05 Bently Nevada – 3300 XL 8 mm Proximity Probes

Description

Product Overview

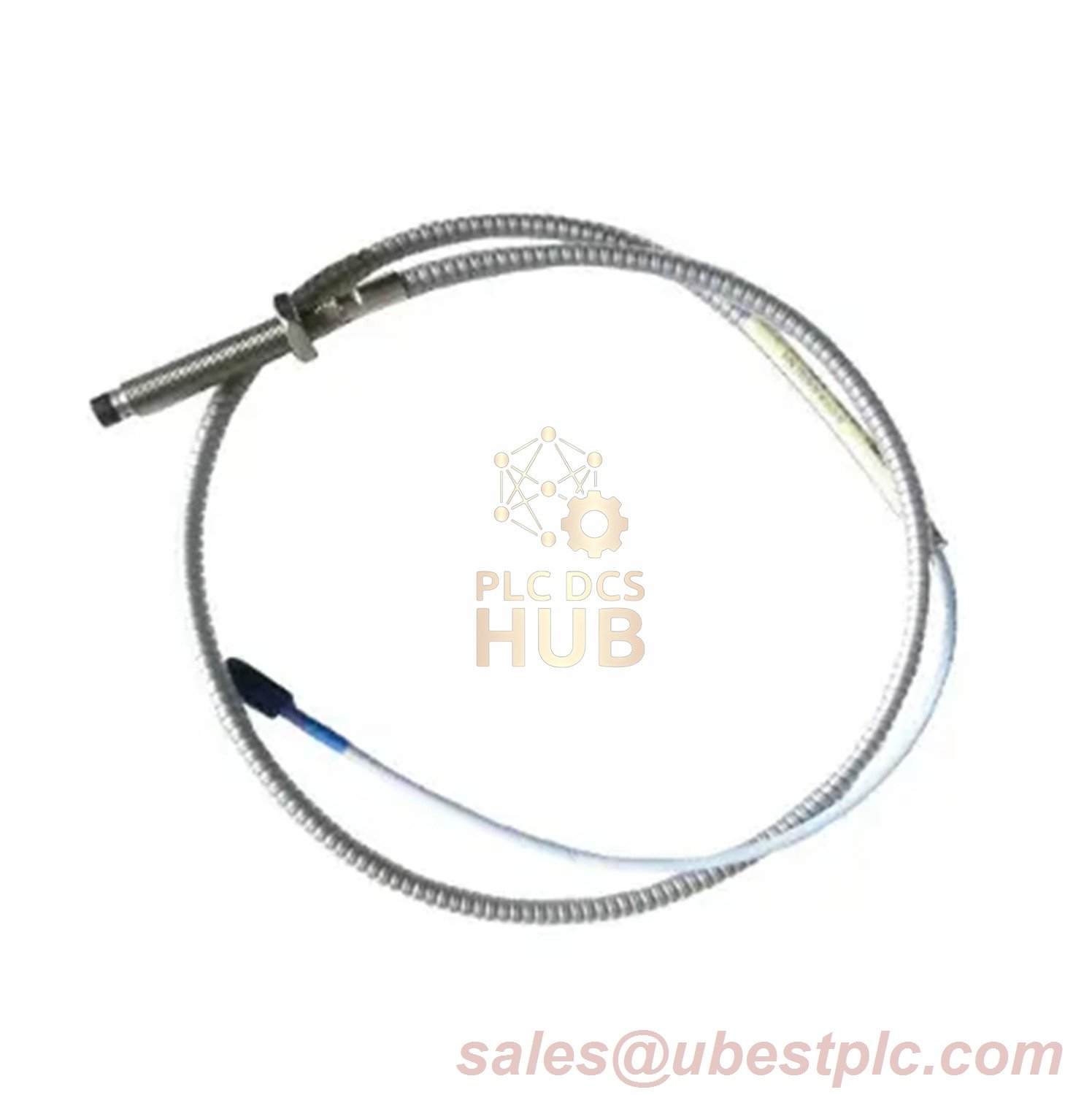

The Bently Nevada 3300 XL 8 mm Armored Probe (Model 330141-08-20-01-05) is a certified, heavy-duty sensor designed for explosive and physically demanding environments. Combining CSA, ATEX, and IECEx certifications, this probe meets stringent safety standards for hazardous areas. Its 2.0-meter armored cable with a ClickLoc connector protector ensures secure connectivity in high-vibration applications.

Technical Specifications

• Brand: Bently Nevada
• Model: 330141-08-20-01-05
  • Suffix Breakdown:
    • 08: 0.8-inch case length
    • 20: 2.0-meter cable (6.6 feet)
    • 01: ClickLoc connector with protector + standard cable
    • 05: CSA, ATEX, IECEx certifications
• Probe Tip: Polyphenylene sulfide (PPS)
• Armor Material: 316 stainless steel braid (0.5 mm thickness)
• Linearity Deviation: <±0.025 mm (±1 mil) for 1/5m systems
• Hazardous Area Compliance: ATEX II 2G Ex ia IIC T4 Ga / IECEx Ex ia IIC T4 Ga
• EMI/RFI Shielding: 95 dB attenuation (10 MHz–2 GHz)
• Crush Resistance: 2,500 N (562 lbf) per ISO 1813
• Cable Flexibility: 15,000+ bend cycles at 30 mm radius
• Chemical Resistance: Resists sulfuric acid vapors, chlorides (NACE MR0175)
• Installation Torque: 8–10 N·m (71–88 lb·in) for armored mounting

Contact Support

For COO documents or custom testing options:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
