Description
Product Description

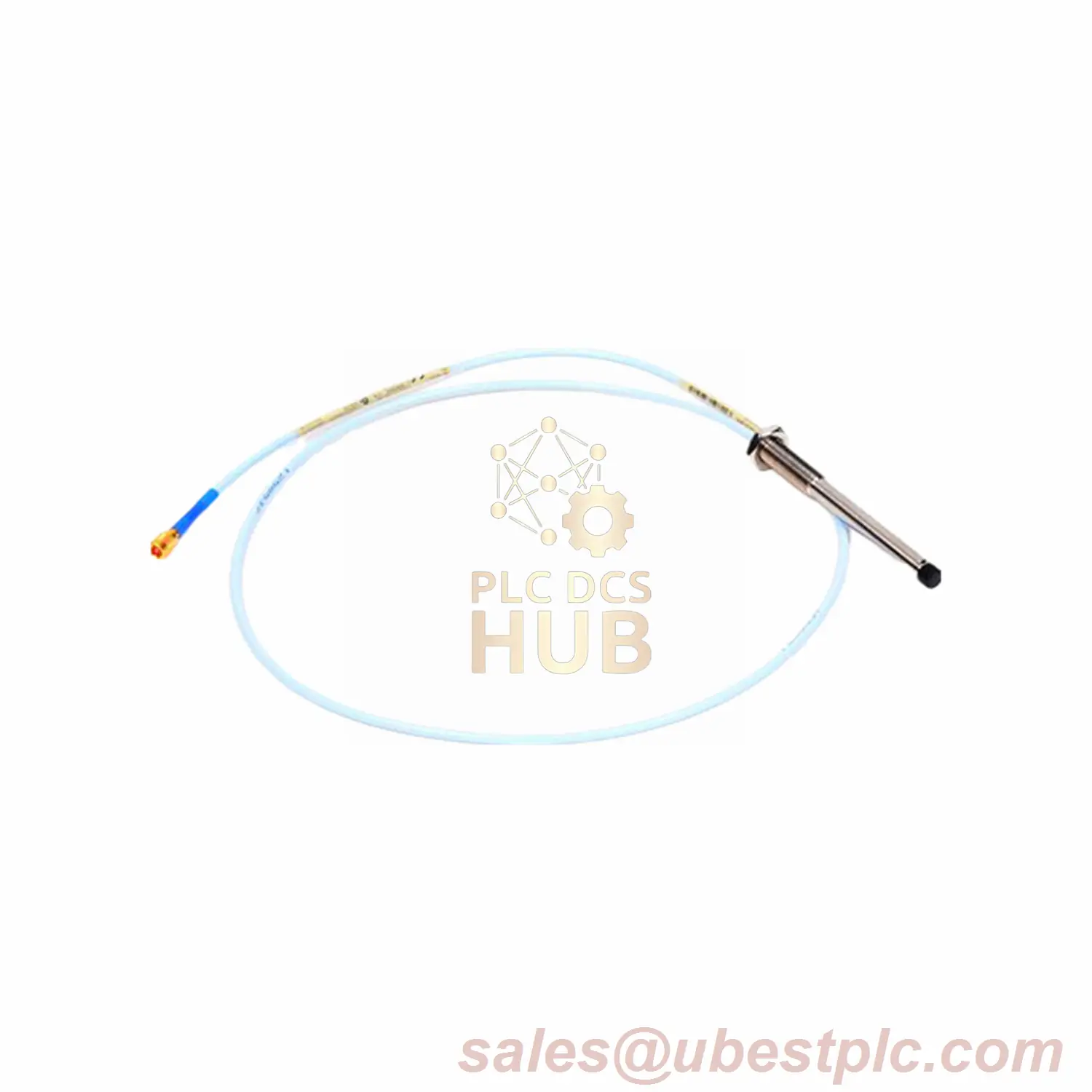

The Bently Nevada 330104-00-03-90-11-05 is an 8mm proximity probe for measuring vibration and position in machines. It has a stainless steel body and a PPS plastic tip for tough conditions. Includes a 9-meter cable and safety certifications for hazardous areas.
Key Specifications
| Brand | Bently Nevada |
|---|---|
| Model | 330104-00-03-90-11-05 |
| Type | 8mm Proximity Probe |
| Range | 1.27mm gap |
| Accuracy | ±0.5 ohms |
| Power | -17.5V to -26V DC |
| Temperature | -55°C to +232°C |
Model Code Details
- 00: No extra unthreaded length
- 03: 3mm case length
- 90: 9-meter cable (29.5 feet)
- 11: ClickLoc connector + waterproof cable
- 05: Safety certifications (CSA/ATEX/IECEx)
Installation
Use with AISI 4140 steel targets. Set gap to 1.27mm (50 mils). Follow wiring diagrams for safe use.
Works With
• All Bently Nevada 3300 XL 8mm systems
• Machines using AISI 4140 steel parts
Certifications
- ATEX, IECEx, CSA
- Explosion-proof (Zone 0/2)
- Groups A-G hazardous areas
Package Includes
- 1x 8mm probe
- 1x connector protector
- 1-year warranty
Where to Use
- Power plant turbines
Oil/gas pumps
Factory rotating machines
Contact Support
Email: sales@ubestplc.com
Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
