Description

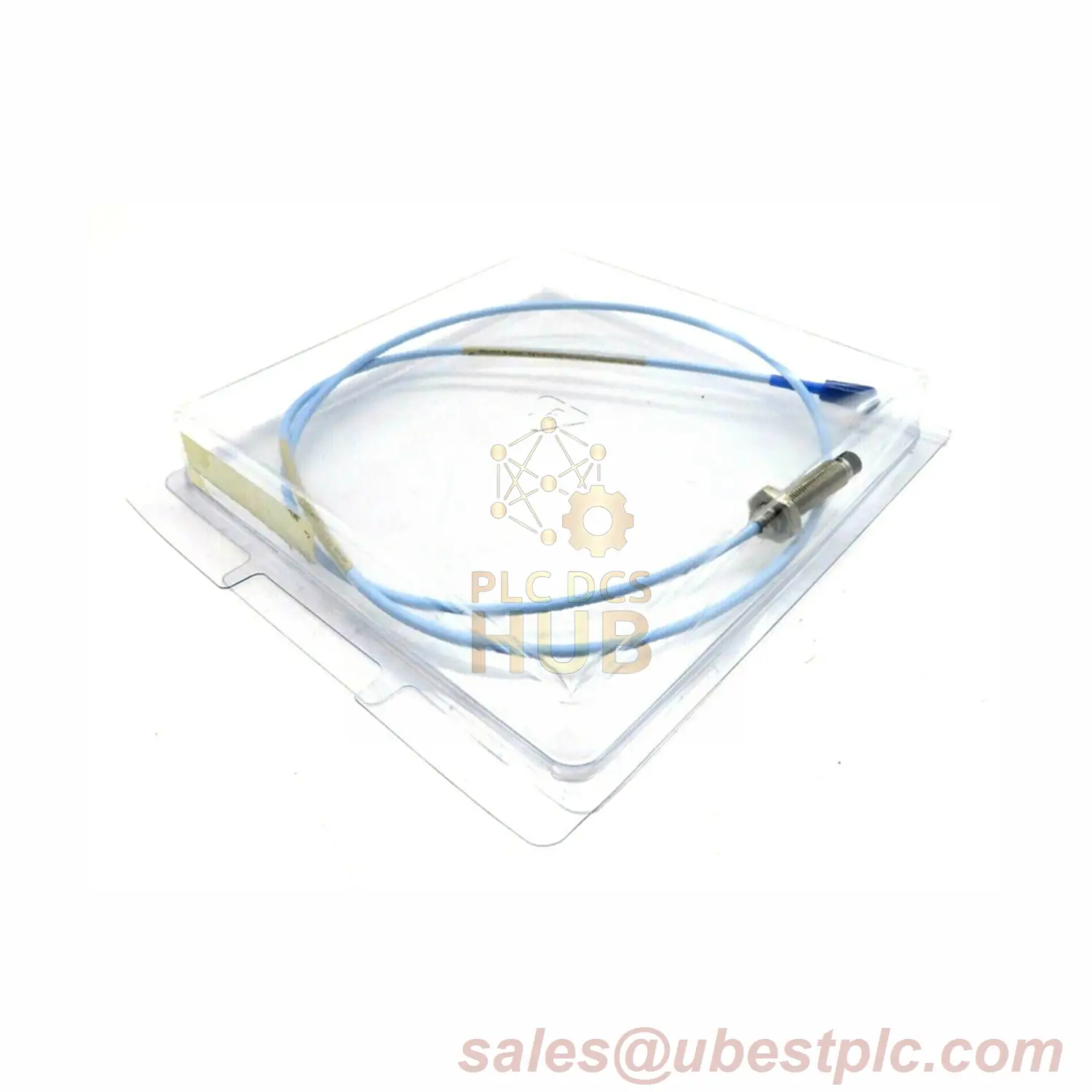

Bently Nevada Probe 330104-00-02-90-01-00
New 330104-00-02-90-01-00 | No Certifications Required | 12-Month Warranty
Part Number Breakdown
| Suffix Codes | 00 = 0.0mm Unthreaded 02 = 2mm Case Length 90 = 9.0m Cable (29.5 ft) 01 = ClickLoc Connector with Protector 00 = No Certifications |
Key Specifications
| Electrical | Voltage: -17.5V to -26V DC Resistance: 9.87Ω ±0.50 Max Current: 12mA Output Sensitivity: <2mV/V |
| Mechanical | Pull Strength: 75 lbs (330N) Torque Limit: 5 in-lb Weight: 11.4 oz per foot Temp Range: -55°C to +232°C |
Design & Materials
| Component | Details |
| Tip | PPS Plastic (High-Temperature) |
| Case | Stainless Steel 303/304 |
| Seal | Viton® O-Ring (Leakproof) |
Industrial Applications
| Industry | Use Case |
| Mining | Conveyor belt speed monitoring |
| Wind Energy | Turbine blade vibration detection |
| Food Production | Mixer shaft alignment checks |
Installation & Safety
| Requirement | Details |
| Power Supply | -24V DC (per drawing 140979) |
| Certifications | None required (00 suffix) |
| Support | sales@ubestplc.com |
