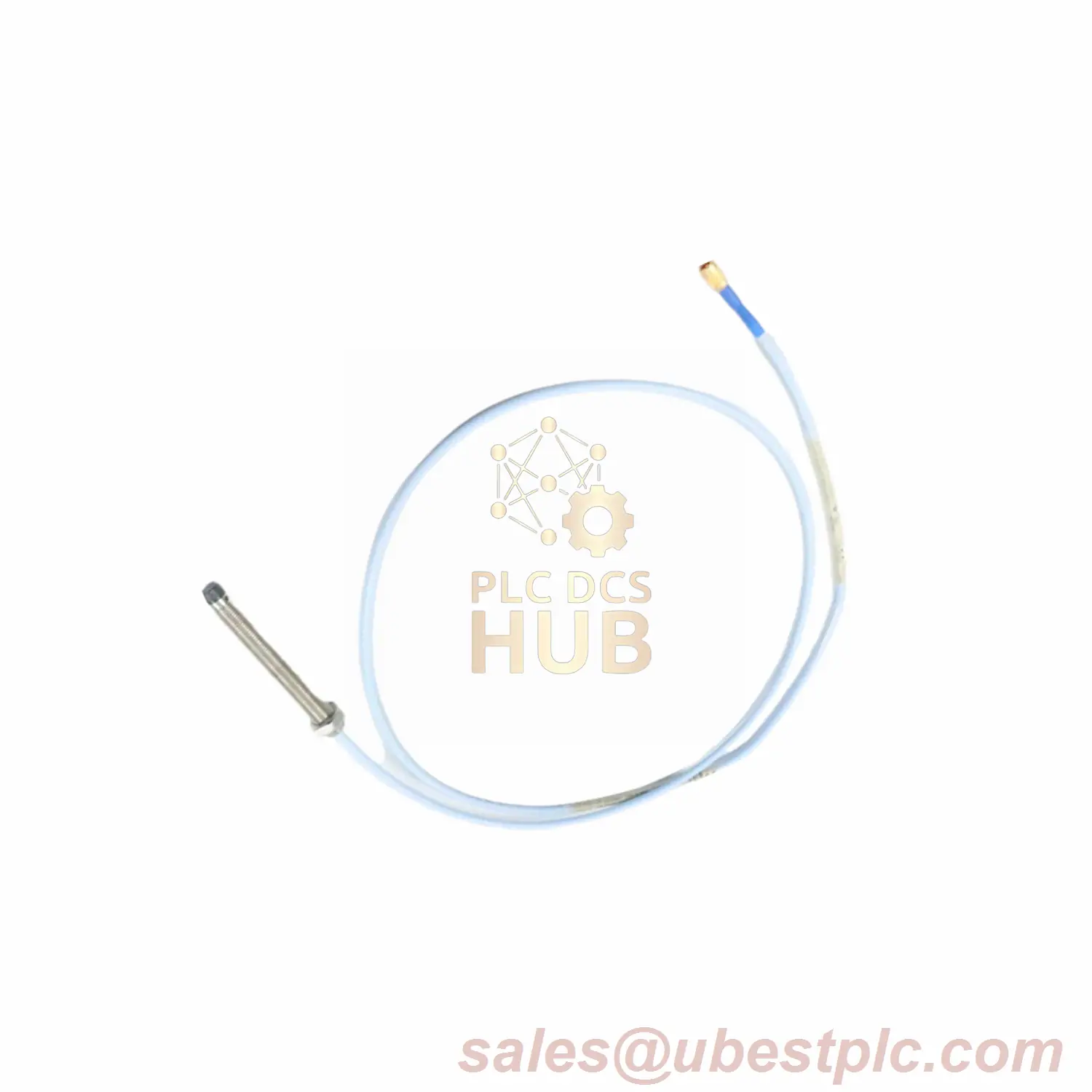

The Bently Nevada 330104-01-05-50-02-CN is a reliable 8 mm Proximity Probe used for monitoring machine vibration and movement. It has a strong armored cable, a Miniature Coaxial ClickLoc Connector, and an M10 x 1 thread for secure mounting.
Technical Data
- Brand: Bently Nevada
- Model: 330104-01-05-50-02-CN
- Thread Size: M10 x 1
- Unthreaded Length: 1 mm
- Case Length: 5 mm
- Cable Length: 5.0 meters (16.4 feet)
- Connector: Miniature Coaxial ClickLoc
- Probe Tip Material: Polyphenylene sulfide (PPS)
- Probe Case Material: AISI 303/304 Stainless Steel
- Voltage: -17.5 Vdc to -26 Vdc
- Output Resistance: 50 Ω
- Temperature Range: -55°C to +232°C
- DC Resistance: 8.73 ± 0.50 Ω (5m cable length)
- Sealing: Viton® O-ring to prevent pressure leaks
Installation Guide
The probe is easy to install with its M10 x 1 threaded section. It works with Bently Nevada 3300 XL Proximitor Sensors and extension cables. Proper positioning ensures accurate machine monitoring.
Compatibility
Designed for Bently Nevada 3300 XL systems, including Proximitor Sensors and cables.
Certifications
- Intrinsic Safety: AEx/Ex ia IIC T5…T1 Ga
- Non-Incendive Rating: AEx/Ex nA IIC T5…T1 Gc
- Division Classification: Class I, II, III; Groups A, B, C, D, E, F, G
Packaging & Warranty
- Package Includes: 1 x 330104-01-05-50-02-CN Proximity Probe
- Warranty: 12 months
