Description
Product Description

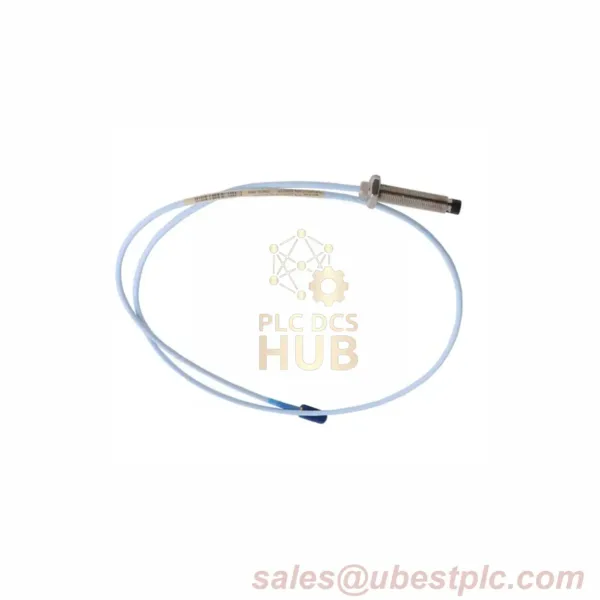

Bently Nevada 3300 XL 8mm Probe (Model: 330104-01-20-15-02-05) checks machine vibrations and position. Built with stainless steel case (AISI 303/304), PPS tip, and Viton® seal. Fits M10x1 screws. Includes 1.5m cable for easy use.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330104-01-20-15-02-05 |
| Suffix Details | 01: 1mm unthreaded length 20: 20mm case length 15: 1.5m cable 02: Standard cable |
| Voltage | -17.5Vdc to -26Vdc |
| Temp. Range | -55°C to +80°C (T4 rating) |
| Resistance | 7.73Ω ±0.50 |
| Output | 50Ω signal |
Installation Guide
- Fix with M10x1 thread.
- Check Viton® O-ring seal for pressure (max. 2000m altitude).
- Use drawing 140979 (non-incendive setup).
Works With
- 3300 XL 8mm sensors and 5mm probes.
- Needs AISI 4140 steel target.
Certifications
- ATEX/IECEx (Zone 2).
- Safe for Group A-G hazardous areas.
Package & Warranty
- Probe, standard cable, protector, manual.
- 12-month warranty.
Real-World Uses
- Water pump motors in power plants.
- Paper mill roller alignment checks.
