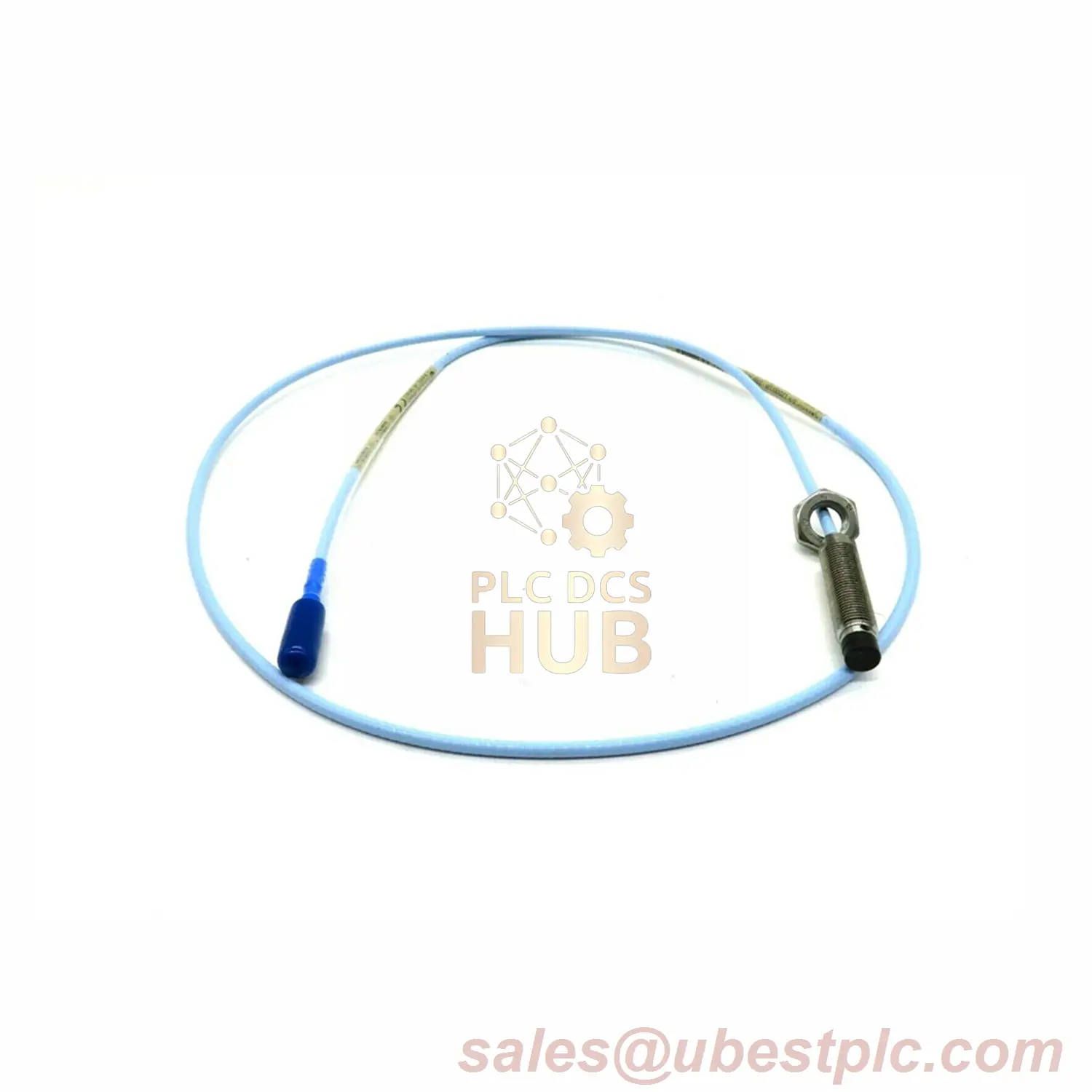

The Bently Nevada 3300 XL 8mm Probe (Model: 330104-00-02-15-01-00) is used to check vibrations and position in machines. Made with stainless steel (AISI 303/304) and a PPS tip. Works with M10x1 screws. Includes a 1.5m cable for easy setup.
Technical Data
| Brand | Bently Nevada |
|---|---|
| Model | 330104-00-02-15-01-00 |
| Cable Length | 1.5 meters (4.9 feet) |
| Thread Type | M10 x 1 |
| Material | Stainless Steel (Case), PPS (Tip) |
| Voltage | -24Vdc |
| Temperature | -55°C to +232°C |
| Resistance | 7.73Ω ±0.50 |
Installation
- Fix with M10x1 thread.
- Use Viton O-ring to seal.
- Follow guide drawings 140979 or 141092.
Works With
- Bently Nevada 3300 XL 8mm sensors.
- Needs AISI 4140 steel target for setup.
Certifications
- ATEX/IECEx approved (Zone 0/2).
- Safe for hazardous areas (Groups A-G).
Package & Warranty
- Probe, cable, protector, documents.
- 12-month warranty.
Used In
- Power plant turbines.
- Factory compressors.
Questions? Email sales@ubestplc.com
