Description

Description

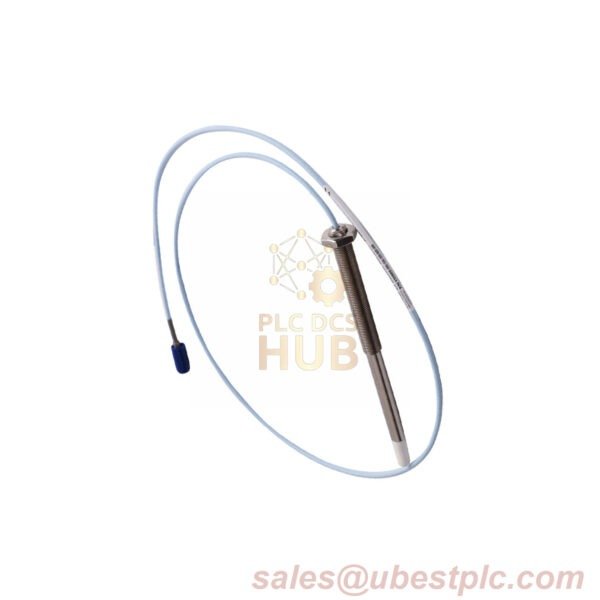

The Bently Nevada 330105-02-12-30-12-CN is a 3300 XL 8 mm Reverse Mount Proximity Probe engineered for complex installations in hazardous zones. Featuring a reverse-mount design, 3.0 m (9.8 ft) FluidLoc® cable, and country-specific certifications, this probe delivers precision vibration monitoring in explosive atmospheres. Its patented TipLoc™ and CableLoc™ technologies ensure reliable performance in high-temperature, high-pressure process industries.

Technical Specifications

• Model: 330105-02-12-30-12-CN
• Part Number Breakdown:
  • 330105-02-12 – 3300 XL 8 mm Reverse Mount Probes
  • -30: 3.0 m (9.8 ft) cable length
  • -12: ClickLoc™ connector + FluidLoc® submersible cable
  • -CN: Country-specific certifications (CCC, BIS, EAC)
• Mechanical:
  • Thread Specifications:
    • 3/8-24 UNF thread
    • Max Engagement: 14.3 mm (0.563 in)
    • Installation Torque: 5.65 N·m (50 in·lb) max
  • Cable Construction:
    • Triaxial 75Ω FluidLoc®
    • Bend Radius: 38.1 mm (1.5 in) minimum
    • Jacket Material: FEP/PFA hybrid insulation
• Certifications:
  • Explosion Protection:
    • AEx ia IIC T4 Ga (Zone 0)
    • AEx ec IIC T3 Gc (Zone 2)
    • IECEx Ex ia/ec IIC T4-T3
  • Material Compliance:
    • NACE MR0175 Level III (H₂S: 20,000 ppm)
    • RoHS 3 (EU 2015/863)

Contact Support

For certification documents or custom configurations:
sales@ubestplc.com

Explore more detailed information in official datasheet here: 3300 XL 8 mm Proximity Transducer System Datasheet
